SECTION 3 - CHASSIS & TURNTABLE
3121607 – JLG Lift – 3-15

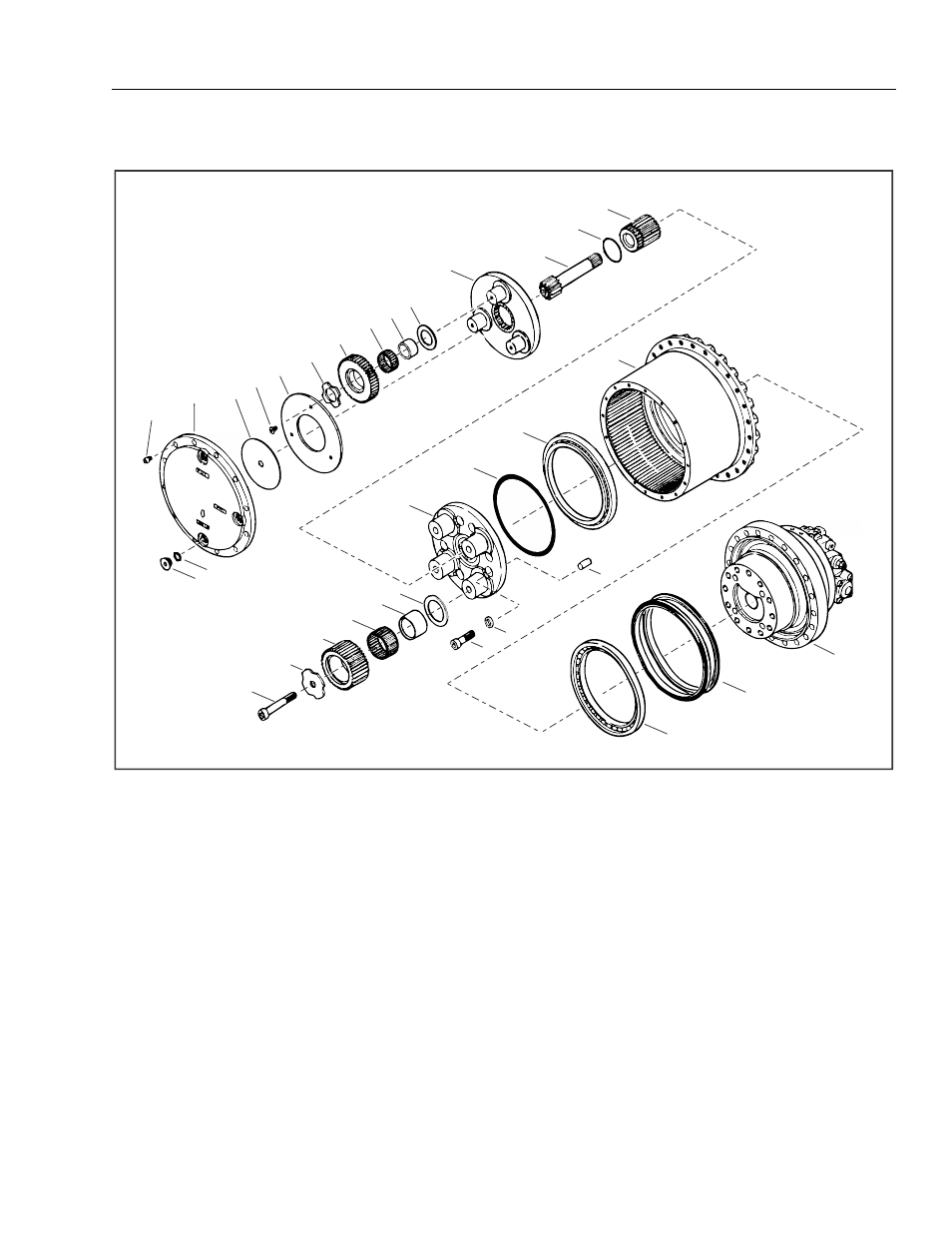

Figure 3-11. Crawler Drive - Gearbox
1
2
3
9
10
11
12
13
14
8
7
31
6
5
3
4
29
30
28
27
26
24
23
22
21
20
19
18
17
25
16
15
1. Piston Motor
2. Floating Seal
3. Angular Bearing
4. Housing
5. Shim
6. Holder
7. Washer
8. Bolt
9. Thrust Plate
10. Inner race
11. Needle bearing
12. Planetary Gear
13. Thrust Plate
14. Bolt
15. Sun Gear
16. Snap Ring
17. Holder
18. Thrust Plate 19. Inner Race
20. Needle Bearing
21. Planetary Gear
22. Thrust Plate
23. Thrust Plate
24. Screw 25. Drive Gear
26. Thrust Plate
27. Cover
28. Bolt
29. Plug
30. O-Ring
31. Pin
