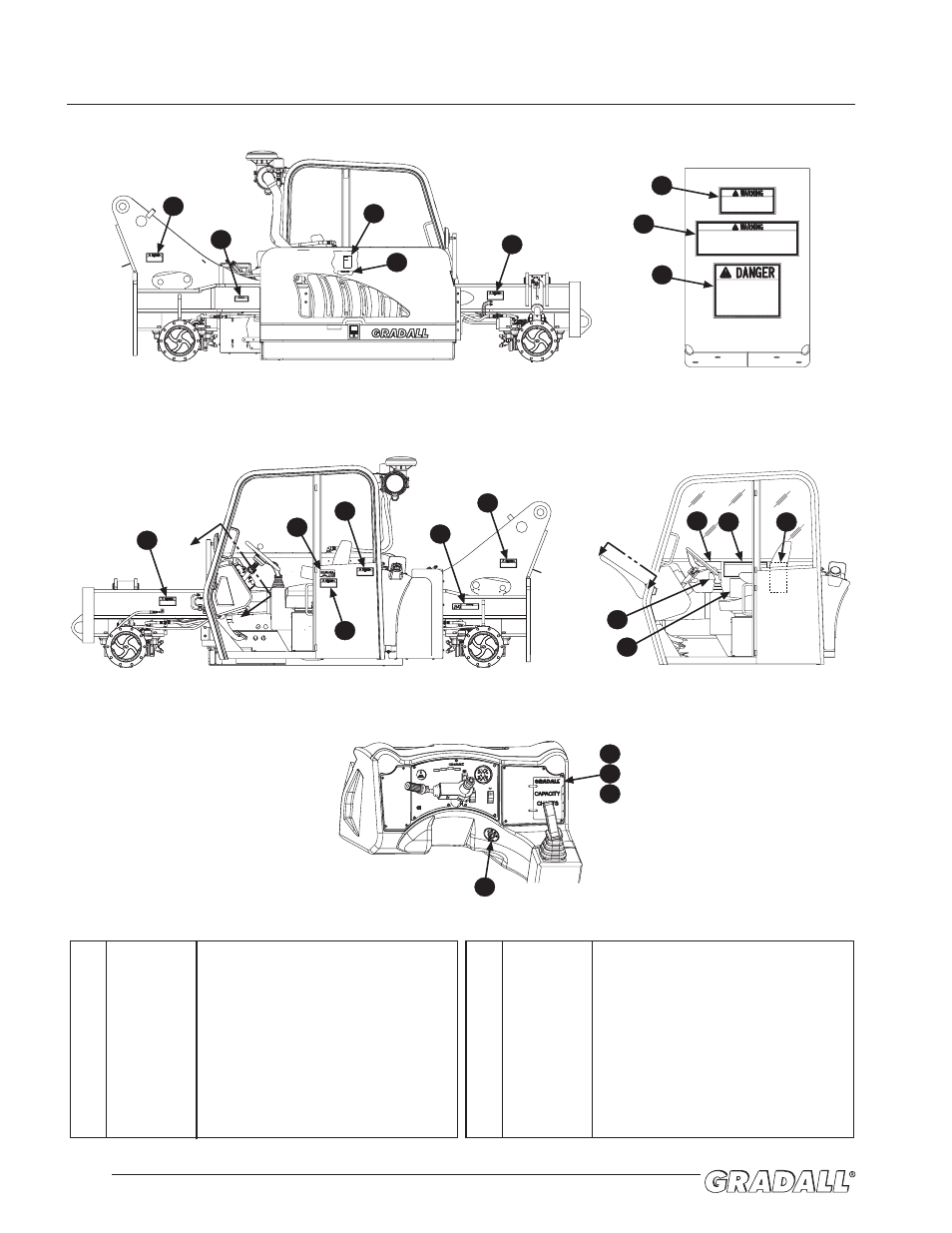

DECAL LOCATIONS
2.0
1 9114-3282 Warning Decal, Pinch Point
2 9114-3280 Warning Decal, Exhaust System
3 9140-3569 Oil Level Decal
4 9114-3288 Hydraulic Oil Decal
5 9132-3030 Warning Decal, Capacity Chart
6 9055-3027 Warning Decal, Lifting Personnel
7 8060-3022 Danger Decal, High Voltage
8 7733-3027 Made in USA Decal
9 9114-3283 Warning Decal, No Riders
10 9114-3286 Warning Decal, Diesel Fuel
11 9108-3492 Oil Warning Decal
12 9055-3028 Warning Decal, Safe Operation
13 9147-3131 Serial No. & Attaching Plate
14 9150-3102 Boom Operation Decal
15 9147-3217 Service Instruction Plate
16 9140-3618 Load Chart Cover
17 9147-3139 Carriage Chart
18 9147-3162 G6-42A Capacity Chart
19 9141-3061 Ignition Decal,
(S/N 0160001283 thru Current)
1
2
3
4
1
5
6
7
1
8
10
9
1
11
5 12 13
14
15
17
16
18
19
WORK PLA
TFORM
6 FT . MAST
9140-3618
48" & 72" CARRAIGE
100° SWING CARRIAGE
B
B
9114-3283
NO RIDERS PERMITTED ON HANDLER. OPERATOR ONLY IN MACHINE WHILE RUNNING. RIDERS COULD FALL OFF MACHINE CAUSING SERIOUS INJURY OR DEATH.
9114-3286 DIESEL FUEL IS FLAMMABLE EXTINGUISH ALL OPEN FLAME AND SMOKING MATERIALS WHEN REFUELING INJURY OR DEATH COULD RESULT FROM FIRE.
9114-3282 STAY CLEAR OF PINCH POINT AREA ANYTIME ENGINE IS RUNNING. BEING IN PINCH POINT AREA COULD CAUSE SERIOUS INJURY OR DEATH. DO NOT GO NEAR LEAKS 10814B * High pressure oil easily punctures skin causing serious injury, gangrene or death.
* If injured, seek emergency medical help. Immediate surgery is required to remove oil.
* Do not use finger or skin to check for leaks.
* Lower load or relieve hydraulic pressure before loosening fittings.
9114-3282 STAY CLEAR OF PINCH POINT AREA ANYTIME ENGINE IS RUNNING. BEING IN PINCH POINT AREA COULD CAUSE SERIOUS INJURY OR DEATH.
A
A
9114-3282 STAY CLEAR OF PINCH POINT AREA ANYTIME ENGINE IS RUNNING. BEING IN PINCH POINT AREA COULD CAUSE SERIOUS INJURY OR DEATH.
9114-3280 EXHAUST SYSTEMS CAN BE HOT. KEEP AWAY FROM EXHAUST SYSTEM WHEN HOT. HOT EXHAUST COMPONENTS CAN CAUSE SEVERE BURNS.
ADD FULL
9140-3569 CHECK OIL LEVEL WITH HANDLER LEVEL AND ALL CYLINDERS RETRACTED. 2.5 GALLON BETWEEN ADD AND FULL MARKS
HYDRAULIC OIL LEVEL
HYDRAULIC SYSTEM Genuine Parts
9114-3282 STAY CLEAR OF PINCH POINT AREA ANYTIME ENGINE IS RUNNING. BEING IN PINCH POINT AREA COULD CAUSE SERIOUS INJURY OR DEATH.
VIEW B-B
9132-3030
NEVER OPERATE MACHINE WITHOUT CONSULTING PROPER CAPACITY CHART FOR THE CARRIAGE/FORK COMBINATION BEING USED.
9055-3027 REV. A
READ AND UNDERSTAND THE FOLLOWING PRIOR TO LIFTING PERSONNEL. WHEN LIFTING PERSONNEL USE ONLY A GRADALL MANUFACTURED PERSONNEL WORK PLATFORM. DO NOT DRIVE MACHINE WITH PERSONNEL IN PLATFORM. WHEN PERSONNEL ARE IN PLATFORM REMAIN SEATED IN CAB WITH PERSONNEL IN DIRECT LINE OF SIGHT. OPERATE CONTROLS LIGHTLY AND CAUTIOUSLY WHEN LIFTING PERSONNEL. READ AND UNDERSTAND PERSONNEL WORK PLATFORM USER'S MANUAL BEFORE LIFTING PERSONNEL. DO NOT USE PERSONNEL WORK PLATFORM WITHOUT THE PROPER GRADALL MATERIAL HANDLER/PERSONNEL WORK PLATFORM CAPACITY CHART DISPLAYED IN CAB. FAILURE TO COMPLY COULD RESULT IN SERIOUS INJURY OR DEATH.
8060-3022
AVOID HIGH VOLTAGE LINES.
IT IS UNLAWFUL TO PLACE
ANY PART OF THIS MACHINE
OR LOAD WITHIN 10 FEET
OF HIGH VOLTAGE LINES
UP TO 50,000 VOLTS. DEATH OR INJURY MAY
RESULT FROM CONTACTING
ELECTRIC LINES.
VIEW A-A
Figure 2-1
