SECTION 3 - MACHINE OPERATION
LIFTPOD by JLG 1001070465
www.liftpod.com 3-7
5. Slide the carriage/mast assembly onto the mast stump.
Make sure it is properly aligned and fully engaged.
Never force it into position (see Figure 3-6.).
6. Attach the platform to the carriage (see Figure 3-9.).
• Make sure the platform’s mounting pins are
aligned with the holes in the carriage (A), then
drop slowly down to seat properly.
• Ensure the platform locator (B) is properly
engaged in the bottom of the carriage frame.
• Make sure the platform latch (C) is fully
engaged. CHECK: Try to lift the platform out,
if it does not release, then the platform has
engaged properly.

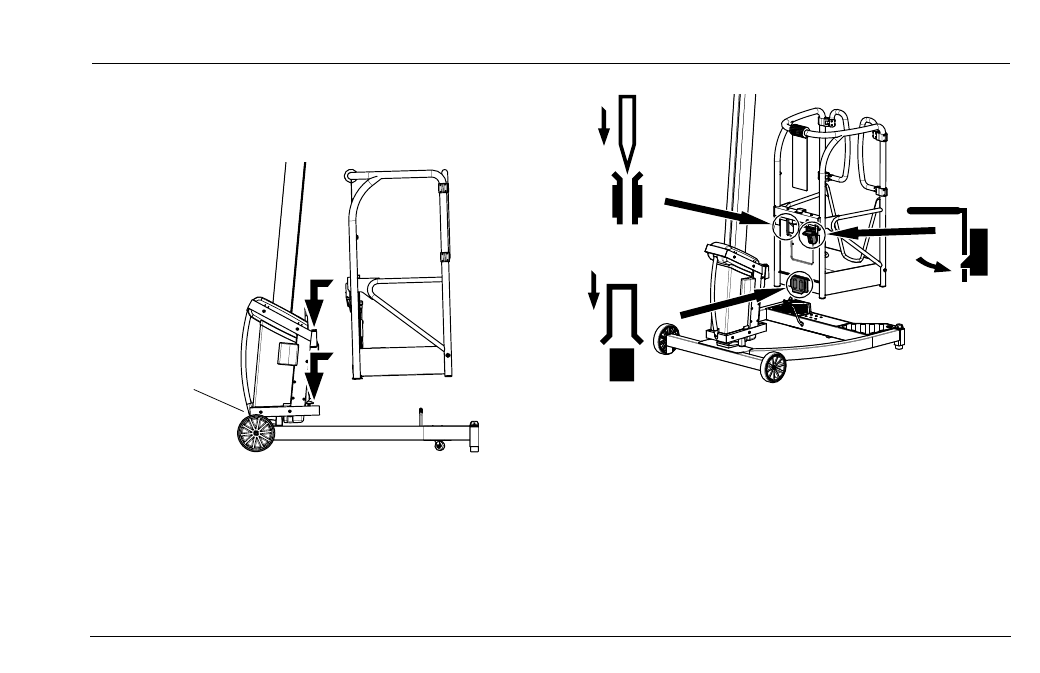

Figure 3-9. Attaching the platform to the carriage
Fully Engaged
Figure 3-10. Platform attachment checks
(C)
(B)
(A)
