SECTION 2 - PREPARATION AND INSPECTION
LIFTPOD by JLG
1001070465
www.liftpod.com
2-7
10. Platform Assembly and Gate - Check mounting pins
are not loose; platform railing is undamaged; platform
latch is engaged on carriage (Figure 2-7.); self-closing
entry gates are in proper working order; no cracks or
corrosion visible.
11. Tool Tray - See next page for Tool Tray Pre-Start Inspec-
tion Procedure.

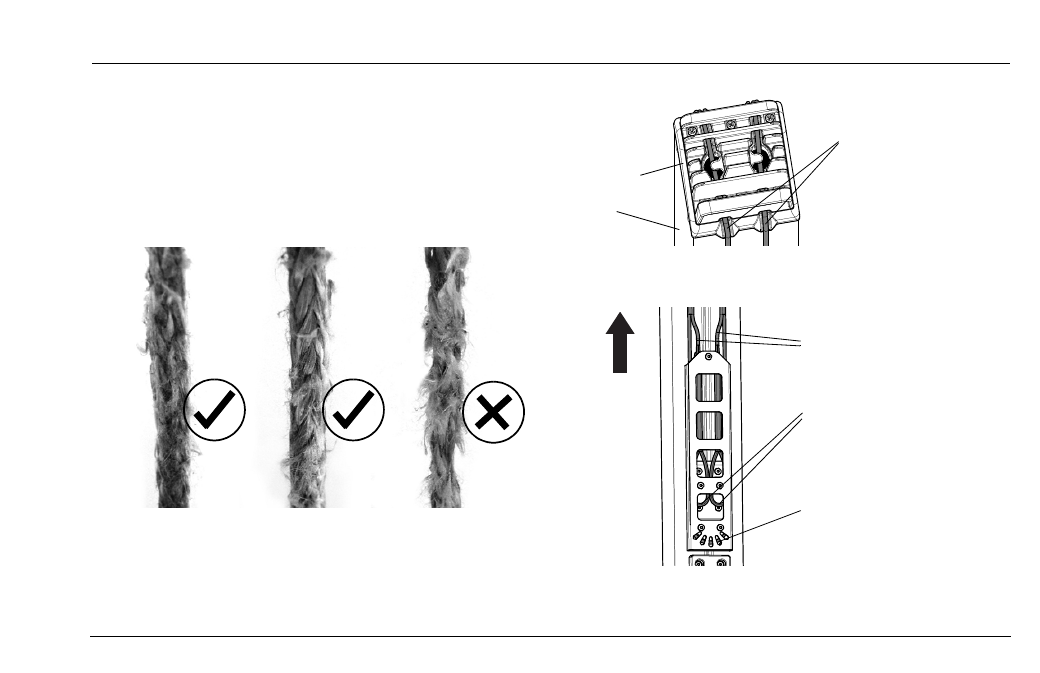

Figure 2-4. Examples of new, acceptable and
unacceptable ropes
Figure 2-5. Ropes retained in mast cap
Figure 2-6. Rope anchor points
Check both ropes
are retained in
groove in cap
Mast
Mast Cap
Check that each termination is
engaged under its anchor point
by viewing through the cover.
The two upper rope tails
should be slack.
The lower rope loop should
be tight around anchor.
Top of
Mast
