SECTION 1 FRAME
S
E
C
T
I
O
N
1
F
R
A
M
E
308
Plug, Pipe Options:
A/R
Use 70001111
Cast Cover (Original Equipment)
(was p/n 7000243)
1
Use 70001349
Aluminum Cover (Service Replacement)
(was p/n 7017094)
2
INPUT SHAFT ASSEMBLY
Ref.
7000250
2WD
Ref.
7007650
4WD
Ref.
401
Shaft Options:
1
7000260
2WD
7007651
4WD
402
7000263
Spacer
2
403
7000262
Spring
1
404
7000261
Ring, Retaining
1
— — — — — — — — — —
KIT OPTIONS:
Ref.
7010429
Bearing Kit (Includes Items 103 and 104)
1
2900034
Seal Kit (Includes Items 5, 102, 110 and 111)
1
2900661
Seal Kit (Includes Items 5, 11, 153, 159 and 160)
1
See Note
Disconnect and Seal Kit (Includes Items 5, 102, 110,
111& 302-306) (was p/n 2900137)
(Note: Use Cover Kit as Replacement)
1
Cover Kit Options: (Note: Kit Replaces Items 5, 11
(Spacer), 12, 13 (Dowel Pins) & 301-308)
1
Use 70001111
Cast Cover (Original Equipment) (was p/n 7001989 &
p/n 7017099)
Use 70001349
Aluminum Cover (Service Replacement) (was p/n
7017090)
2901157

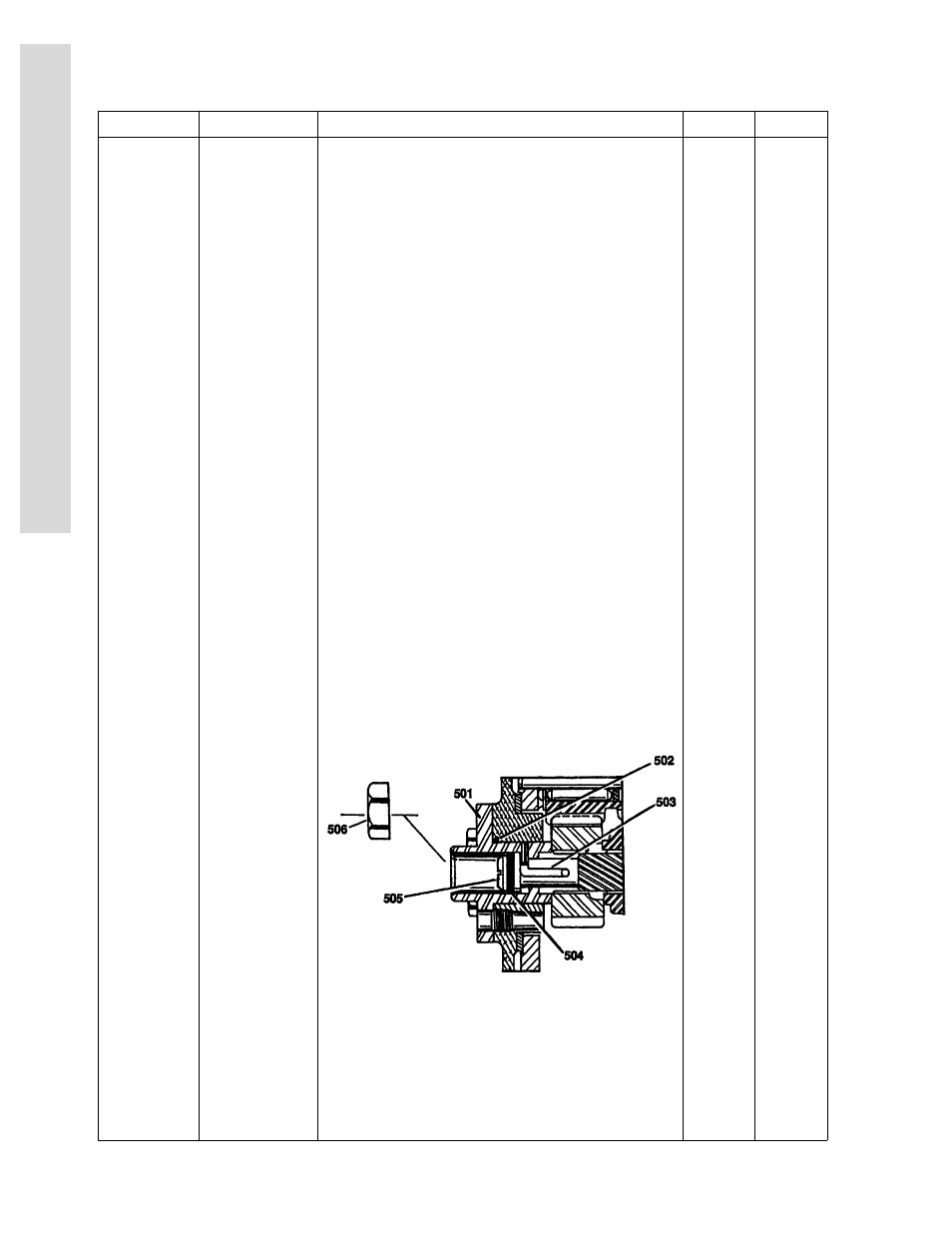

DISCONNECT HUB ASSEMBLY (CAST COVER (ORIG-
INAL EQUIPMENT) ONLY) (OPTIONAL)
Ref.
—
501
7002025
Cover
1
502
7000215
O-Ring
1
503
7007669
Pin, Spring
1
504
7010446
Seal
1
FIGURE 1-5. DRIVE HUB ASSEMBLIES (CONTINUED)
FIG & ITEM #
PART NUMBER
DESCRIPTION
QTY.
REV.
