SECTION 3 - MACHINE CONTROLS, INDICATORS AND OPERATION
3-4 – JLG Lift – 3121135

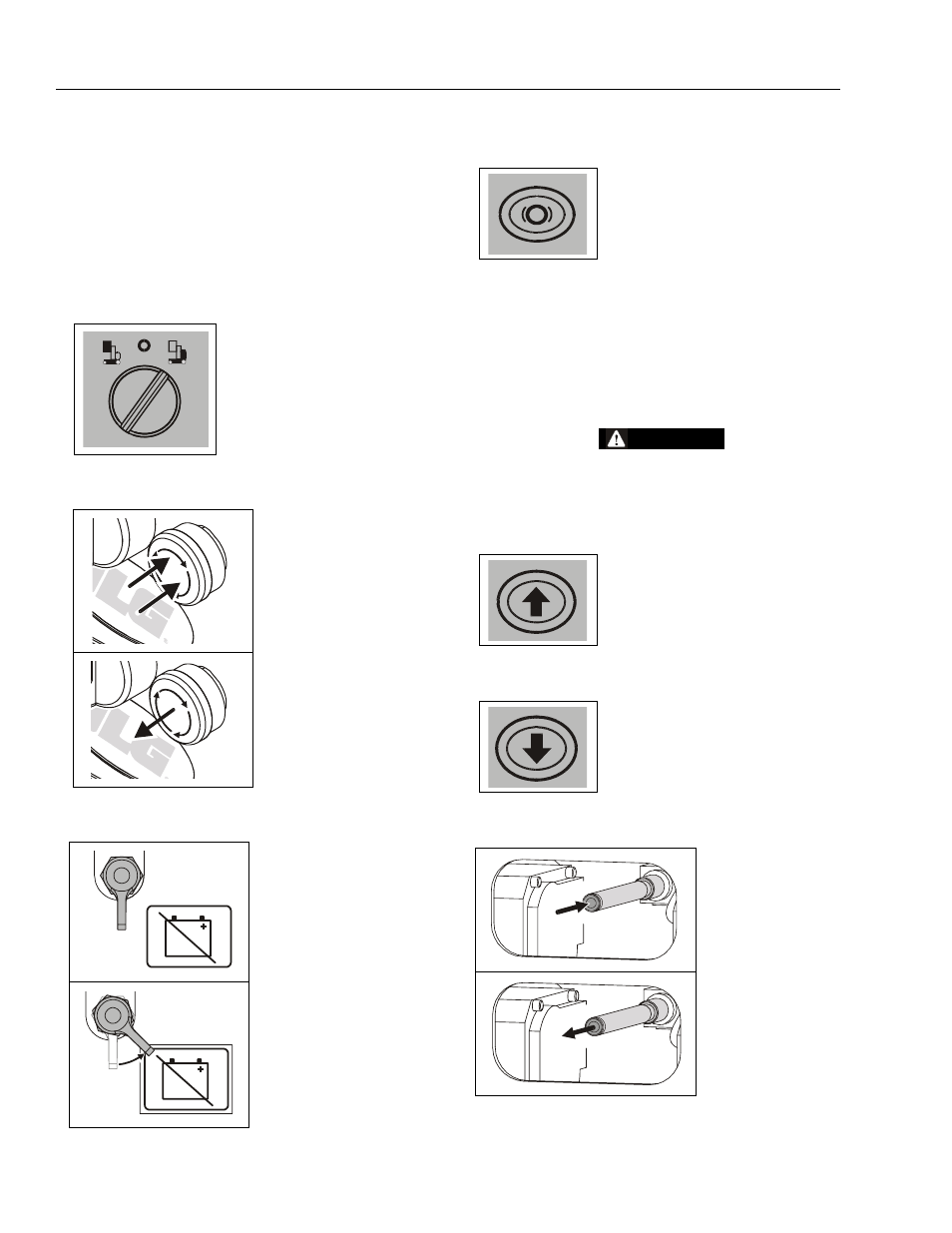

3.5 GROUND CONTROL STATION -
OPERATION
(See Figure 3-2.)
NOTE: If equipped with optional Programmable Security
Lock (PSL) see Section 3.10 for additional instruc-
tions.
Main Power Selector Switch
Emergency Stop/Shut Down Button
Master Disconnect Switch - (EE Option Only)
Brake Release Button
NOTE: The brakes only DISENGAGE (electrically) when the
joystick control is moved off center during driving or
are manually DISENGAGED (electrically) using the
the Brake Release Button.
If the machine’s batteries are completely depleted of
electrical charge the brakes cannot be released
manually.
CAUTION
D O N O T M A N U A L LY D I S E N G A G E T H E B R A K E S U N L E S S
MACHINE IS SETTING ON A LEVEL SURFACE OR MACHINE IS
FULLY RESTRAINED.
Platform Up
Platform Down
Manual Descent Control Valve
Set the Main Power Selector
Switch to Ground Control Mode at
the Ground Control Station
POWER OFF
PUSH IN -
To Engage
Emergency Stop
POWER ON
TURN CLOCKWISE
and RELEASE -
To Reset
Emergency Stop
POWER ON
Lever is pointing
straight out towards left
side of machine.
POWER OFF
Lever is TURNED
COUNTERCLOCK-
WISE towards decal.
-
-
xxxxxxx
PUSH and RELEASE -
TO DISENGAGE Brakes
PUSH and RELEASE AGAIN -
TO ENGAGE Brakes
PUSH IN -
TO ELEVATE Platform
RELEASE -
TO STOP ELEVATING
PUSH IN -
TO LOWER Platform
RELEASE -
TO STOP LOWERING
PUSH-IN TO
LOWER Platform
RELEASE TO -
STOP Platform
Descent
