SECTION 3 - MACHINE CONTROLS, INDICATORS AND OPERATION
3121135 – JLG Lift – 3-1
SECTION 3. MACHINE CONTROLS, INDICATORS AND OPERATION

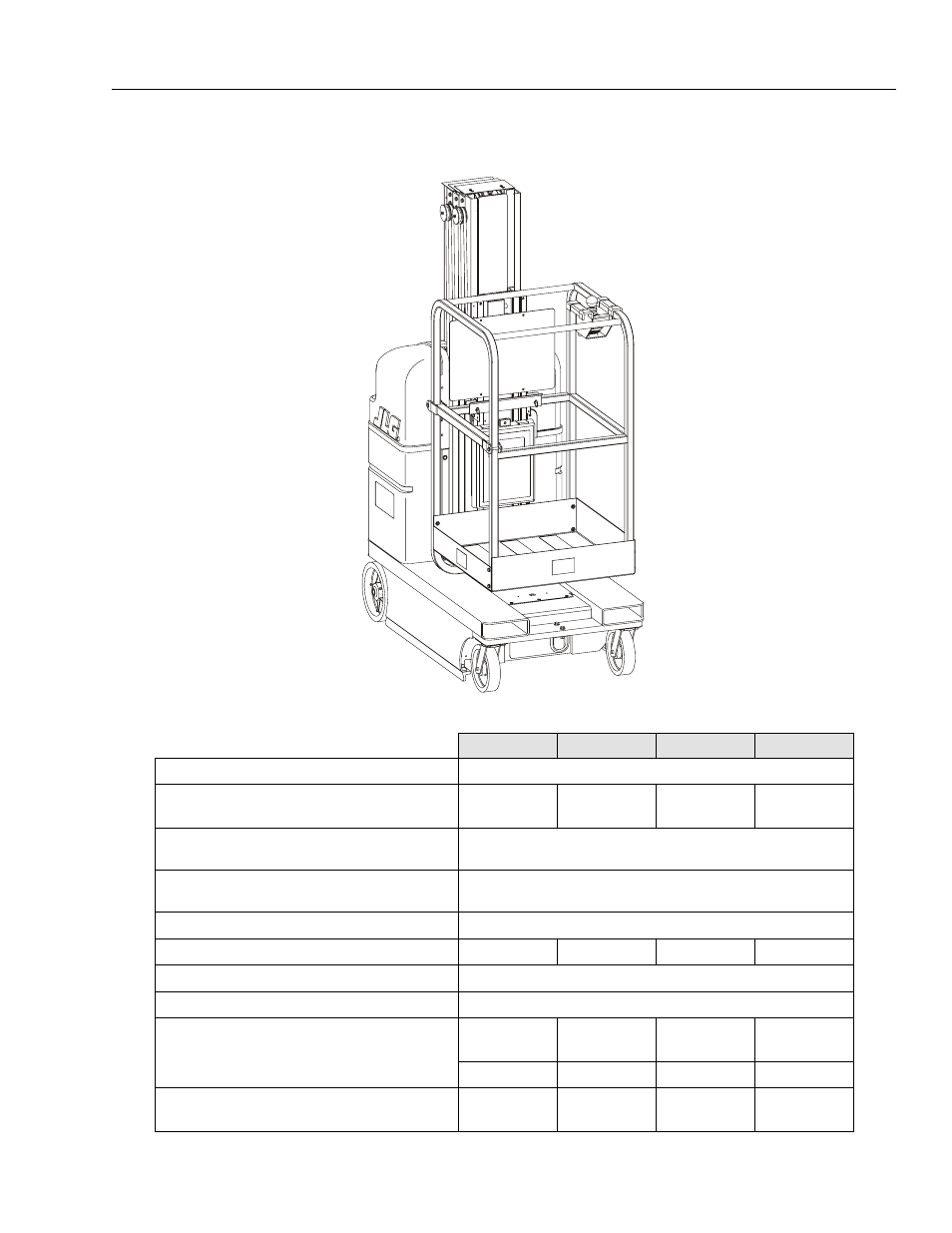

Table 3-1. DVL And DVSP - Machine Operating Specifications
15DVL 20DVL 15DVSP 20DVSP
Maximum Occupants: 1
Maximum Work Load (Capacity):
(DVL-Std. Platform / DVSP - Stockpicker Platform)
500 lb.
(230 kg)
350 lb.
(160 kg)
500 lb.
(230 kg)
400 lb.
(180 kg)
Maximum Travel Grade (Gradeability):
(Platform STOWED ONLY)
20%
Maximum Travel Grade (Side Slope):
(Platform STOWED ONLY)
5°
Machine Height (Platform Stowed) 78 in. (198cm)
Maximum Vertical Platform Height: 15 ft. (4.57 m) 19.5 ft. (5.94 m) 15 ft. (4.57 m) 19.5 ft. (5.94 m)
Maximum Wheel Load (Per Wheel): 800 lb. (360 kg)
Maximum Drive Speeds (Operator Variable): 0.5 - 2 mph (0.8 - 3.2 kph)
Max. Platform Speeds (w/Max. Load): Plat-
form Up:
20 sec. 22.5 sec. 20 sec. 22.5 sec.
Platform Down: 15 - 21 sec. 21 - 26 sec. 15 - 21 sec. 21 - 26 sec.
Gross Machine Weight
(Standard Equipment/Platform Empty): 2,105 lb.
(955 kg)
2,105 lb.
(955 kg)
2,150 lb.
(975 kg)
2,150 lb.
(975kg)
