SECTION 3 - MACHINE CONTROLS, INDICATORS AND OPERATION
3-16 – JLG Lift – 3121135

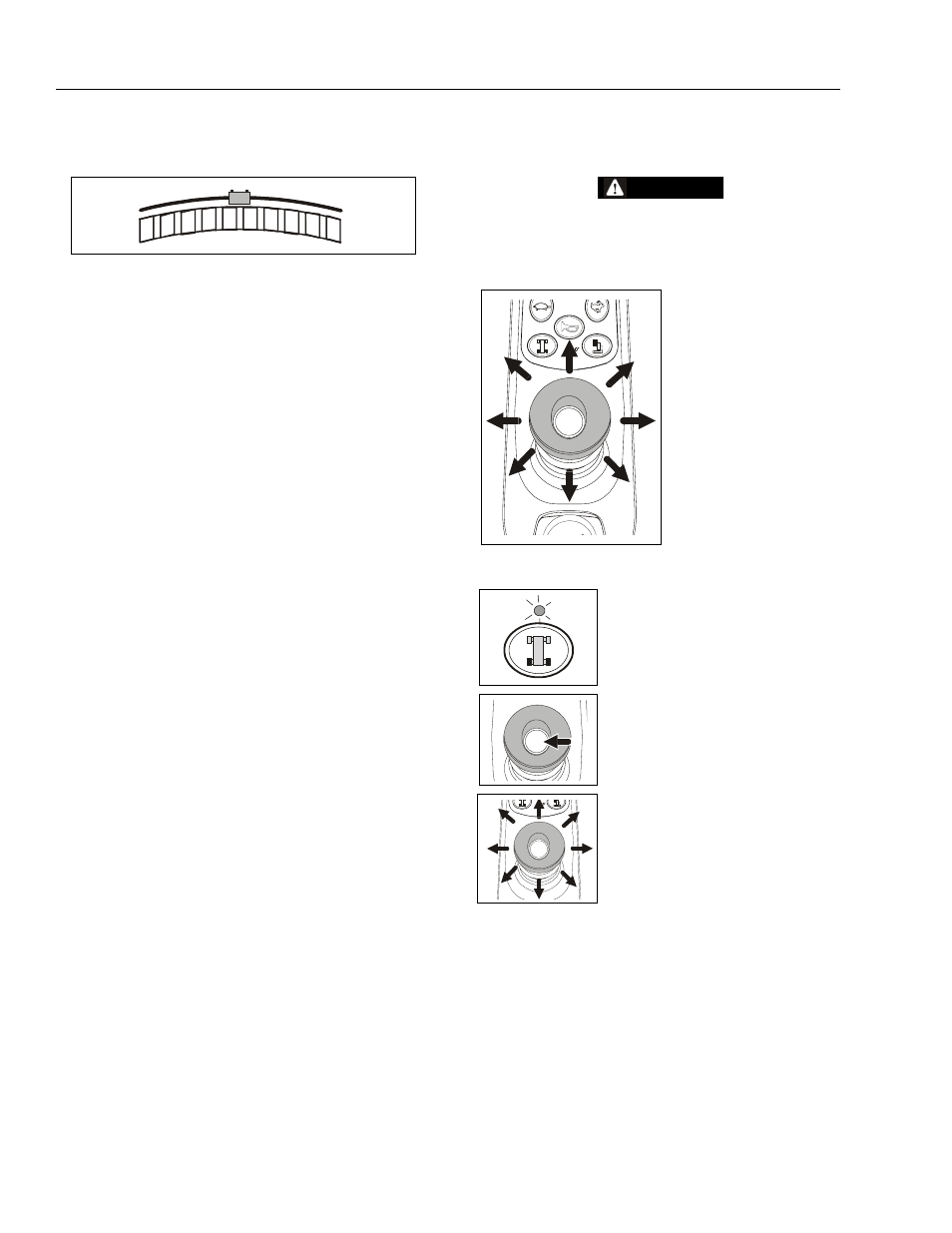

Battery Charge/Fault Code LED Indicator
On normal power-up and operation this series of LEDs
visually indicates the amount of charge left in the batter-
ies.
• (+) GREEN LEDs lit indicate maximum charge.
• (–) RED LED’s lit indicate minimum charge remaining.
• The number of LEDs lit will change depending on the
level of charge in the batteries.
If battery voltage falls below 16.8 volts a fault condition will
occur and the machine will stop operating. The batteries
will need recharged.
NOTE: LED Fault Code indications are in Table 3-3, LCD
Display - Operating Fault Conditions, this section of
the manual.
Driving Machine
WARNING
WHEN DRIVING WITH PLATFORM LOWERED, DO NOT ATTEMPT
TO DRIVE MACHINE UP A RAMP (GRADE) OF GREATER THAN
TWENTY PER CENT(20%), AS TIPPING COULD OCCUR.
1. Enter the platform.
– +
POINT & GO
®
The Joystick can be
moved in any direction
off center.
Drive Power is applied
proportionally the fur-
ther th e Joys tic k is
moved off center.
2. PRESS and RELEASE the
Drive Function Button. The
flashing LED indicates the
function is active. The function
remains active 3 to 4 seconds.
3. While the Drive Function is
active. PRESS and HOLD the
enable button on top the joy-
stick
4. Move the joystick in the
desired direction of travel. TO
STOP the machine return the
joystick back to center.
