Eppendorf C-76 Classic Water Bath Shaker User Manual
Page 32
32
M1248-0051
C-76 Classic Water Bath Shaker
Operating manual

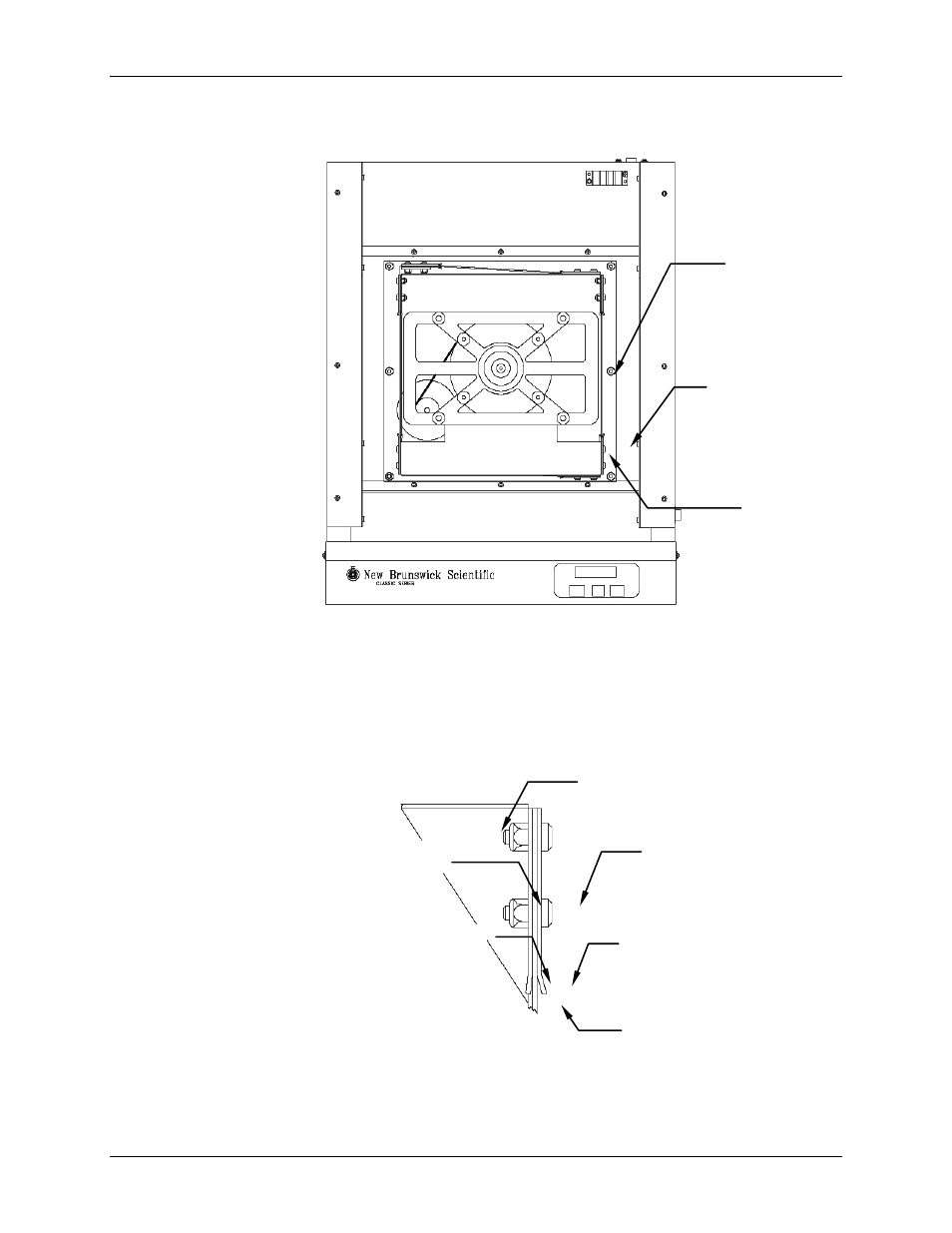

Figure 13: Top View, Lower Mover Plate Removed
7. Loosen and remove the hardware that attaches the
UPPER FLEXURES
to
LOWER
MOVER PLATE
.
Figure 14: Flexure-Attaching Hardware Detail
(Reverse View)
SUBPLATFORM
LOWER MOVER
PLATE
ATTACHING
HARDWARE
(BOTH SIDES)
#10-32 X 1/2”
PAN HEAD PHILLIPS
SCREW (2)
RETAINER
RETAINER
UPPER
FLEXURE
LOWER MOVER
PLATE
LOCK NUT
(2)
