4. Slide the water bath assembly to the front of the unit and tilt the assembly to gain
access to the heater wires. Label or make a note of the location of each wire, then
detach them from the terminal block.
5. Lift and remove the water bath assembly from the unit and set it aside.

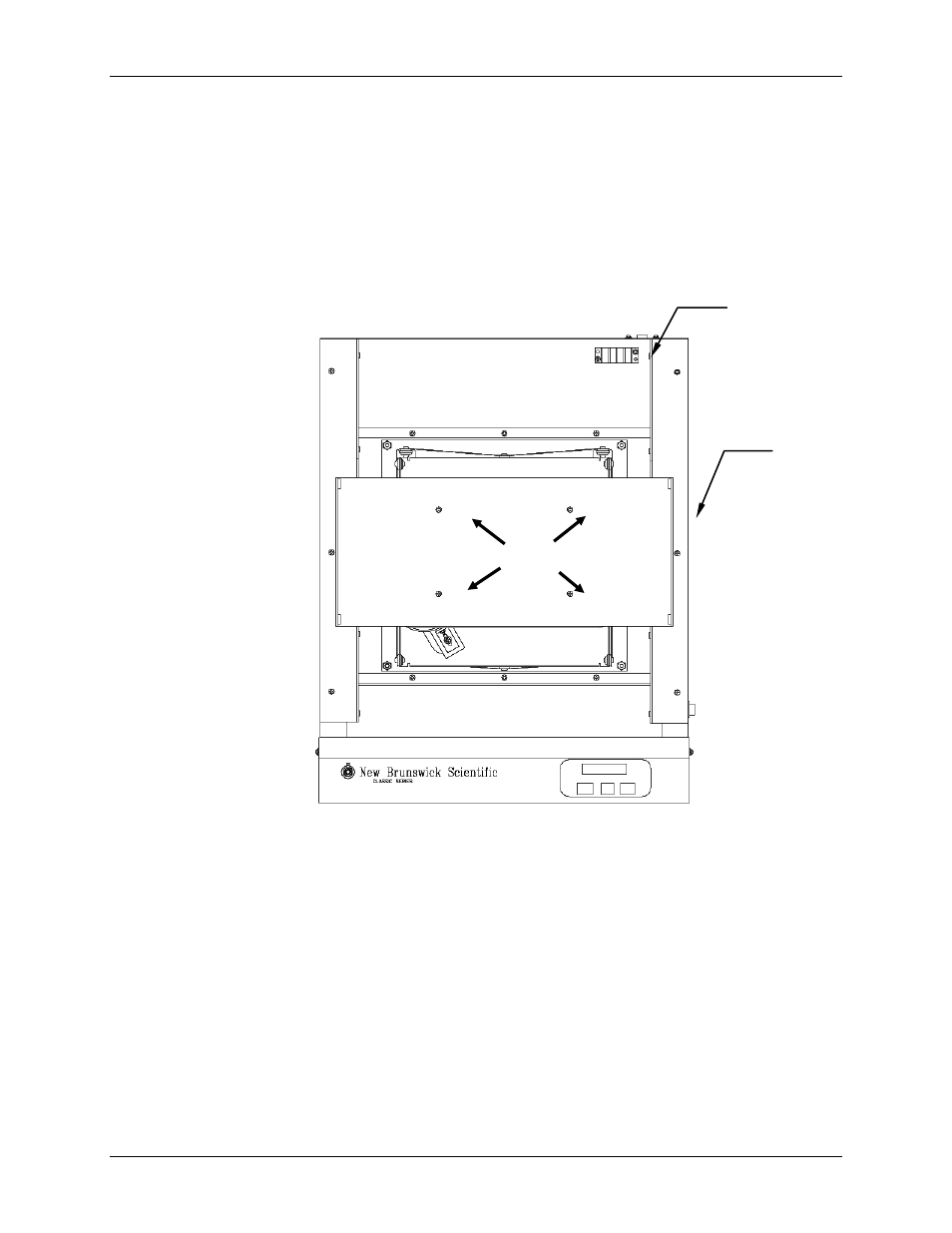

Figure 12: Top View without Water Bath Assembly
6. Remove the four Phillips head screws (shown) that hold the
SUSPENSION ARM
in
place, and remove the
SUSPENSION ARM
from the unit.
TERMINAL
BLOCK
SUSPENSION
ARM
