Innova 5000  M1196-0050 Operating Manual
1.3 Control Panel
The control panel (see Figure 2) is located on the front of the instrument. It serves as
the operator interface. The keypad has four keys marked
START/STOP ,
σ, τ and
SELECT . A three-digit LED display provides numeric values as well as some letter
codes. There are also four function indicator lights and four status indicator lights
on the control panel.
A general description of the display, user interface keys and indicators follows.
For operation of the control panel, see Section 3, Operation.

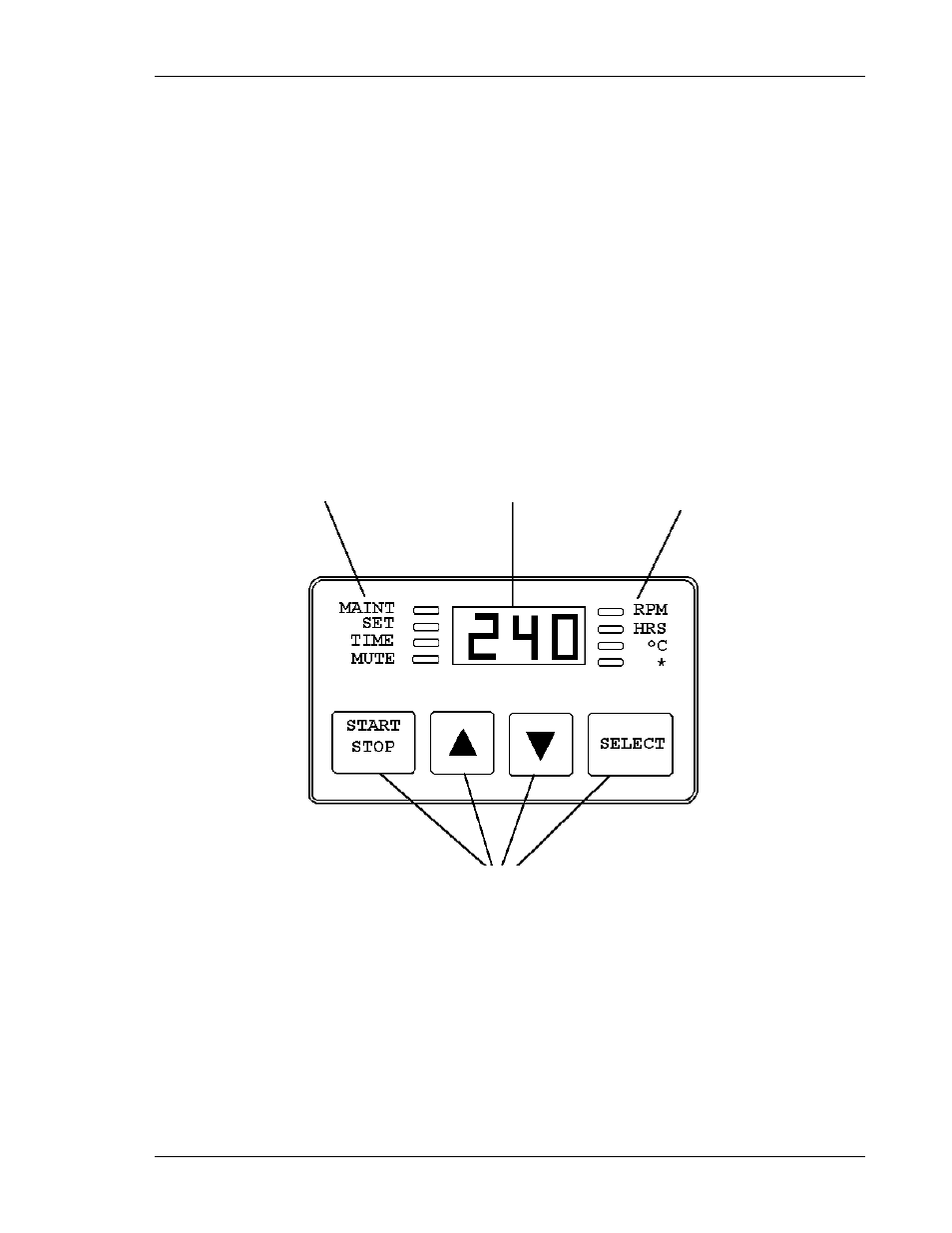

Figure 2: Control Panel
1.3.1 LED Display
The Innova control panel has a 3-digit LED display. During normal shaker
operation, the display will indicate:
• Shaker status (
ON/OFF )
• Shaking speed
• Setpoints
STATUS
INDICATORS LED DISPLAY
FUNCTION
INDICATORS
KEYPAD
