Installation Adjustments
7 - 3
5975987A BARCODATA 708 260597

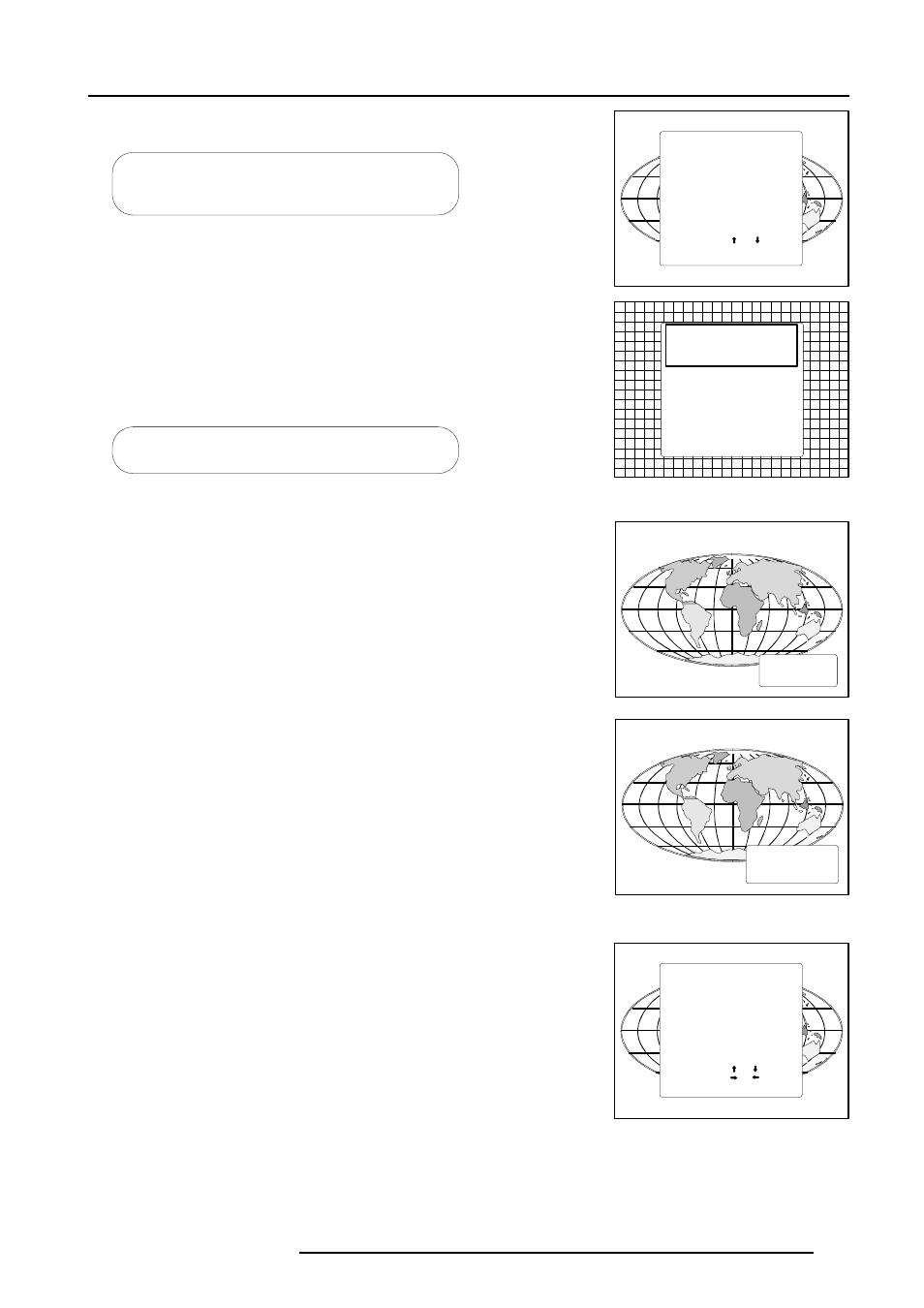

ADJUSTMENT MODE
Select a path from
below:
Select with or
then
GUIDED
RANDOM ACCESS
INSTALLATION
SERVICE
IRIS
source 1
Push the control disk up or down to highlight "Installation" and press
ENTER.
ENTER
continues displaying a WARNING.
EXIT
returns to operational mode.
ADJUST
returns to operational mode.
WARNING
RISK OF ELECTRICAL SHOCK
NO USER ADJUSTABLE PARTS
INSIDE
IF QUALIFIED, PRESS
IF NOT,
THE FOLLOWING
INSTALLATION MENUS
ARE RESERVED TO,
AND TO BE PERFORMED ONLY
BY BARCO PERSONNEL, OR
BARCO AUTHORIZED DEALERS
A warning will be displayed on the screen.
If you are qualified installation or service personnel, press
ENTER
to start up the installation mode.
When entering the installation mode, the projector will automatically
switch to the internal pattern on 15 kHz/50 Hz.
ENTER
asks for your password.
EXIT
returns to the path selection menu.
When the password mode is active, your password will be asked.
Your password contains 4 digits.
a) Adjusting the projector with the RCU.
Enter the digits with the numeric keys on the RCU.
Example : 2 3 1 9
For each digit entered, a 'X' appears on the screen under the
displayed text 'enter password'.
When your password is correct, you get access to the 'Adjustment
mode'.
When the entered password is wrong, The message
'Wrong pass-
word !!!'
will be displayed. The projector stays on the previous
selected item.
Factory programmed
password :
0000
enter
password
xxxx
197
WRONG
PASSWORD
!!!
b) adjusting the projector with the local keypad.
When the 'compose password' menu is displayed, select with the
control disk the first digit of your password and press
ENTER
.
Continue by selecting the second digit with the control disk and press
ENTER
. Handle in the same way for the third and fourth digit.
When your password is correct, you get access to the 'Adjustment
mode'.
When the entered password is wrong, the message
'Wrong pass-
word'
will be displayed.
COMPOSE
PASSWORD
???
Select with ,
or
then
7 8 9
4 5 6
1 2 3
0
