Installation Set Up
1-1 5975987A BARCODATA 708 260597
4
INSTALLATION SET UP
Access to controls

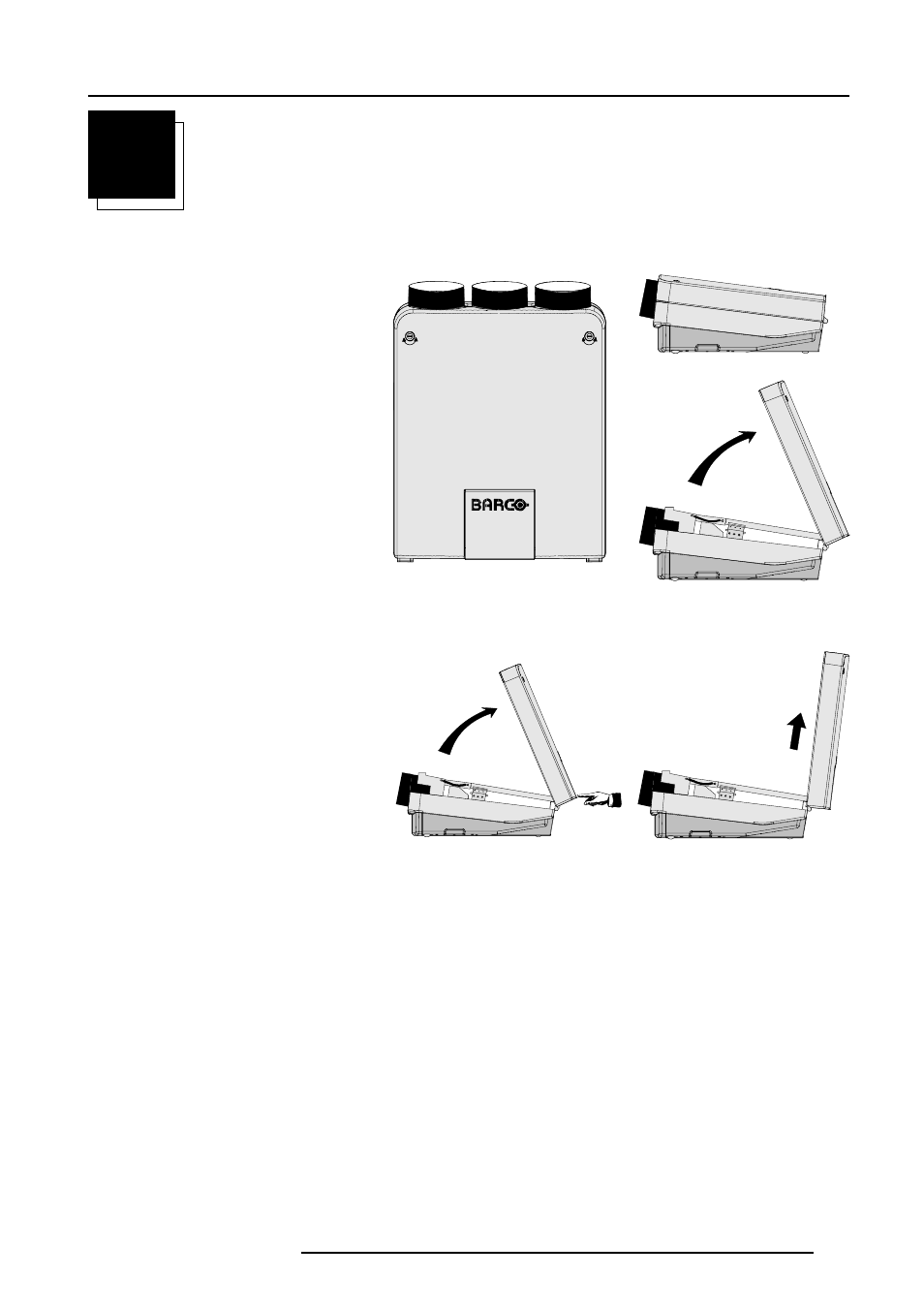

Opening procedure :
During the projector set up and installation it is neces-
sary to open the top cover.
To gain access, procede as follow :
*Turn both lock screws with a screwdriver or a coin
counter clockwise.
* Lift up and pivot the top cover.
* Support the top cover with the hand, no support is
incorporated.
During some installations it will become handy to
remove the top cover totally.
Therefore,
- pivote the top cover ± 60°
- push the top cover to the front side of the projector
until it jumps out of its hings.
- Turn the top cover till 90° and lift it up.
Re-install the cover :
Hook the top cover into the cabinet hinges. Pivot the top cover 30°
and pull it backwards until it fits in the hinges. Close the cover and
secure the lock screws by turning clockwise with a screwdriver or
coin.
