1/31/2008 - 33 -

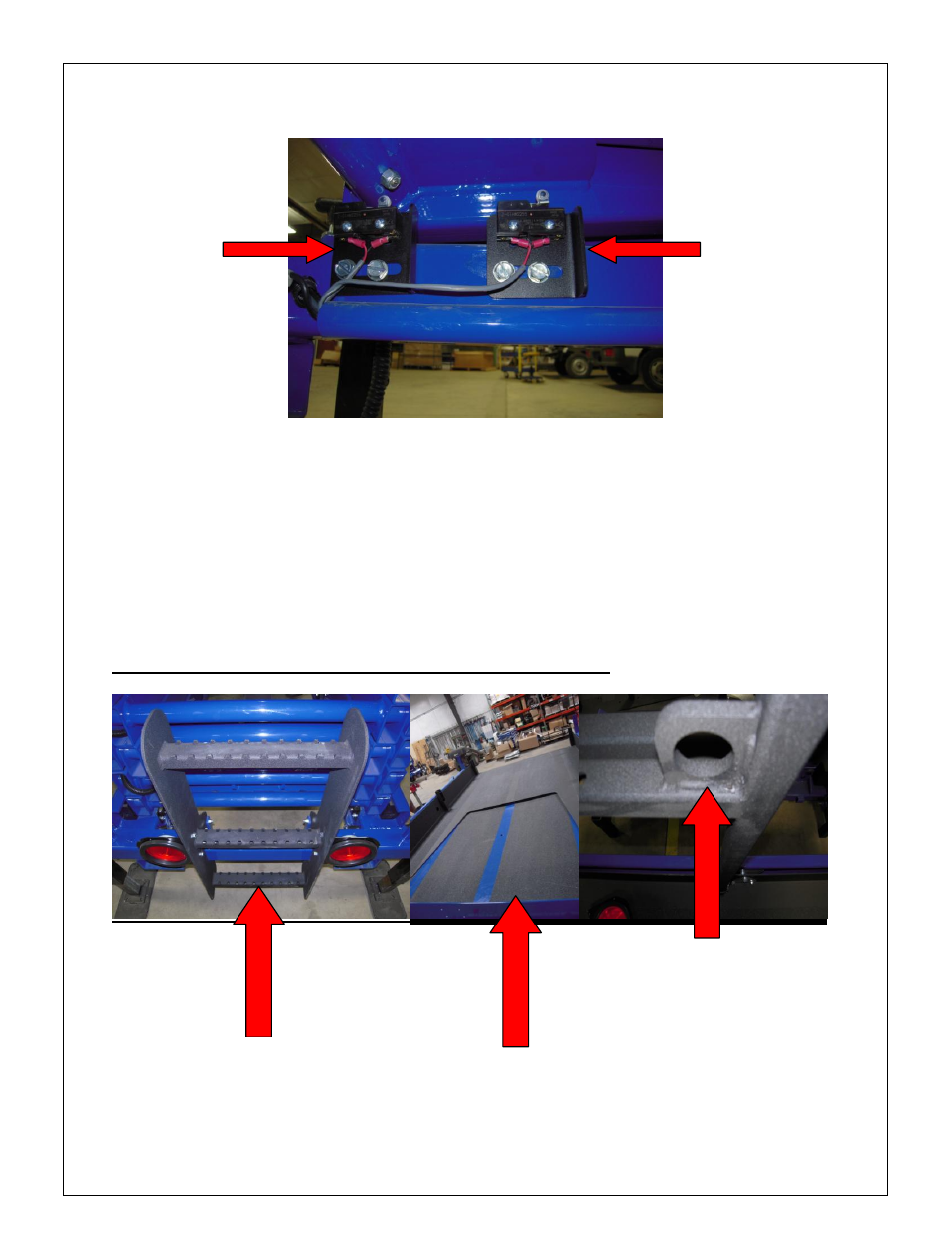

Momentary Stop Switch- Used in lowering mode, stops machine for 2 seconds at a
height of 5 feet (1.5 meters) for safety head and hand clearance. The switch is
located at the back of the machine in the lower left corner.
Variable Height Switch- Used to stop machine at 12 foot (3.7 meters) height. The
switch is located at the back of the machine in the lower left corner in front of
the Momentary Stop Switch.
Anti-Skid, Rear Step and Lanyard Connections
Momentary
Stop Switch Variable
Height Switch
NEW STEP WITH ADDED GRIP
NEW ANTI-SKID
TAPE FOR ADDED
TRACTION
NEW AND
IMPROVED
LANYARD
CONNECTIONS
