Chapter 9 – Stowing and Transporting
TB60/66J – 0084030EE 47
A Warning
The potential for an accident increases when the
aerial platform is lifted using improper equipment
and/or lifting techniques. Death or serious injury
can result from such accidents. Use proper equip-
ment and lifting techniques when lifting the aerial
platform.
Know the weight of the aerial platform and the capac-
ity of the lifting devices before hoisting. Lifting devices
include the hoist or crane, chains, straps, cables, hooks,
sheaves, shackles, slings, and other hardware used
to support the machine. The gross vehicle weight is
stamped on the serial number placard and is listed in
Chapter 2.
The user assumes all responsibility for making sure the
equipment used is capable of supporting the weight of
the aerial platform and that all manufacturer’s instruc-
tions and warnings, regulations and safety rules of their
employer and/or any state or federal law are followed.
Use the following procedure to hoist the aerial platform
onto the transport vehicle.
. Properly stow the aerial platform.
Note
The lifting lugs at the rear of the chassis are farther apart
than those at the front. Rotating the turntable 180° will
place the counterweight at the rear of the chassis. This
will reduce the number of spreader bars needed by one
and sometimes two.
2. Inspect the lifting lugs (refer to Figure 9.4) to make
sure they are free of cracks, rust and are in good
condition. Have any damage repaired by a qualified
service technician before attempting to hoist the
machine.

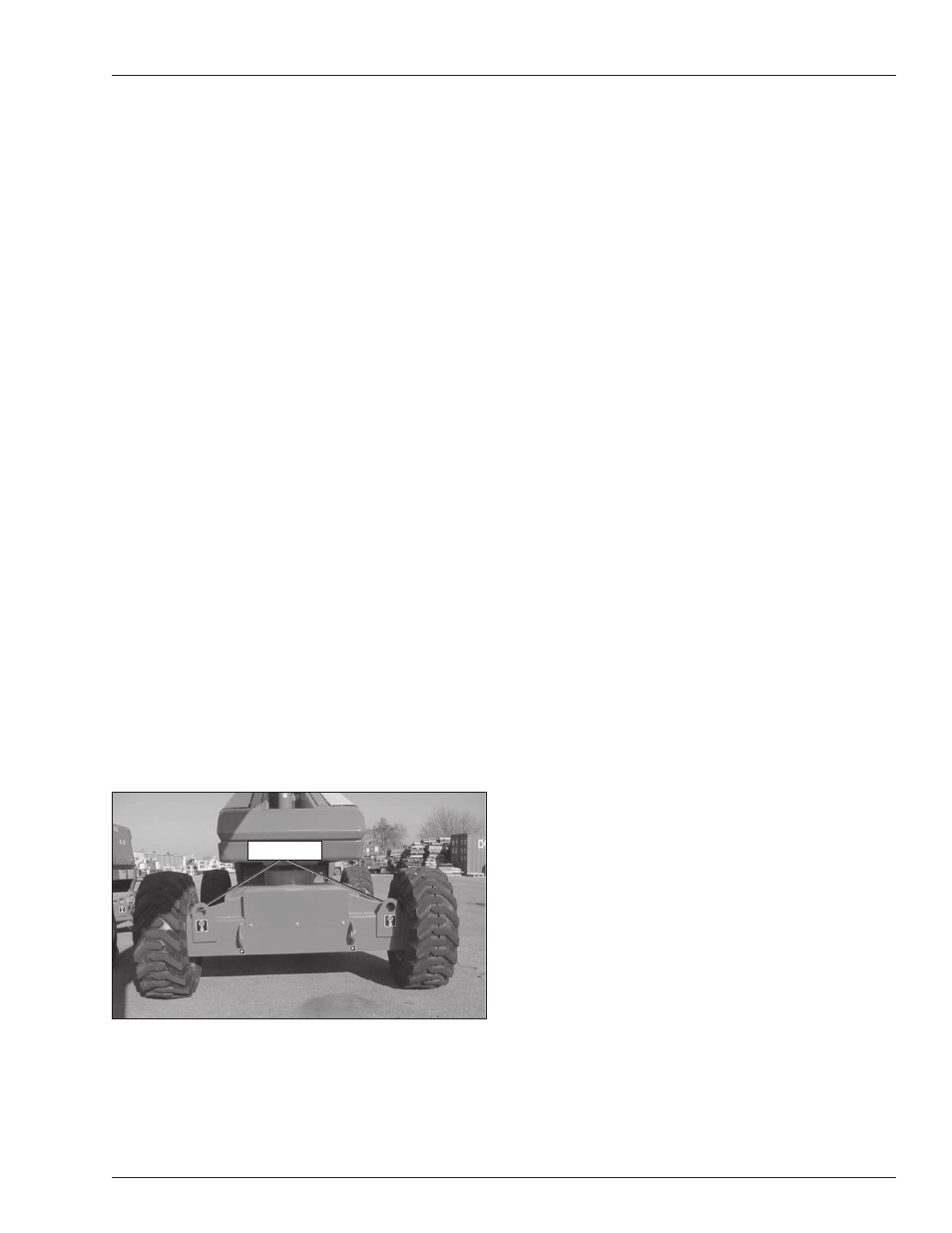

Figure 9.4 – Lifting Lugs
3. Remove all personnel, tools, materials, or other
loose objects from the platform.
4. Connect the chains or straps to the lifting lugs using
bolted shackles. Hooks that fit properly in the lugs
and that have latching mechanisms to prevent them
from falling out under a slack line condition may also
be used.
Do not run the sling cable through the lifting lugs.
Cable damage and/or failure can result from the
cable contacting the sharp corners of the lug. There
is no effective way of putting a corner protector in
the hole of the lifting lug.
5. Use spreader bars of sufficient length to keep the
chains, straps, or cables from contacting the turn-
table or booms. When using cables, use rigid corner
protectors at any point where the cable contacts
sharp corners to prevent damaging the cable. Care-
ful rigging of the spreaders is required to prevent
machine damage.
6. Adjust the length of each chain or strap so the aerial
platform remains level when raised off the ground.
7. Use the hoist or crane to carefully raise and position
the aerial platform onto the transport vehicle.
Securing for Transport
Use the following procedure to secure the aerial platform
on the transport vehicle.
. Chock the wheels.
2. Raise the main boom about 0.3 m (′).
3. Place a wood block under the tip end of the main
boom or jib foot (TB66J). Lower the platform so the
boom or foot rests on the wood block.
4. Remove all personnel, tools, materials or other loose
objects from the platform.
5. Turn the start switch off and place the platform con-
trol box cover over the upper controls if the machine
is equipped with that option.
6. Push the lower controls emergency stop button
inward. Turn the control selector switch off and
remove the key.
7. Turn the battery disconnect switch off.
8. Close and latch the cowling doors.
9. Use wire-ties to fasten the platform gate to the
guardrails to prevent the gate from bouncing. Also,
use wire-ties to fasten the platform foot switch to
the platform floor.
0. Use a nylon strap to securely fasten the platform
against the wood block. Thread the strap over the
toeboard as shown in Figure 9.5.
Lifting Lugs
