6. CONTROLS
6 - 1 P/N 0191915
This chapter explains what each control does.
This chapter does not explain how to use the
controls to produce useful work: refer to the
“OPERATION” chapter for that, after you have
read this chapter.
The only optional equipment discussed in this
chapter is the control for dual-fuel. For other
optional equipment controls, see the “OPTIONS”
chapter.
1
2

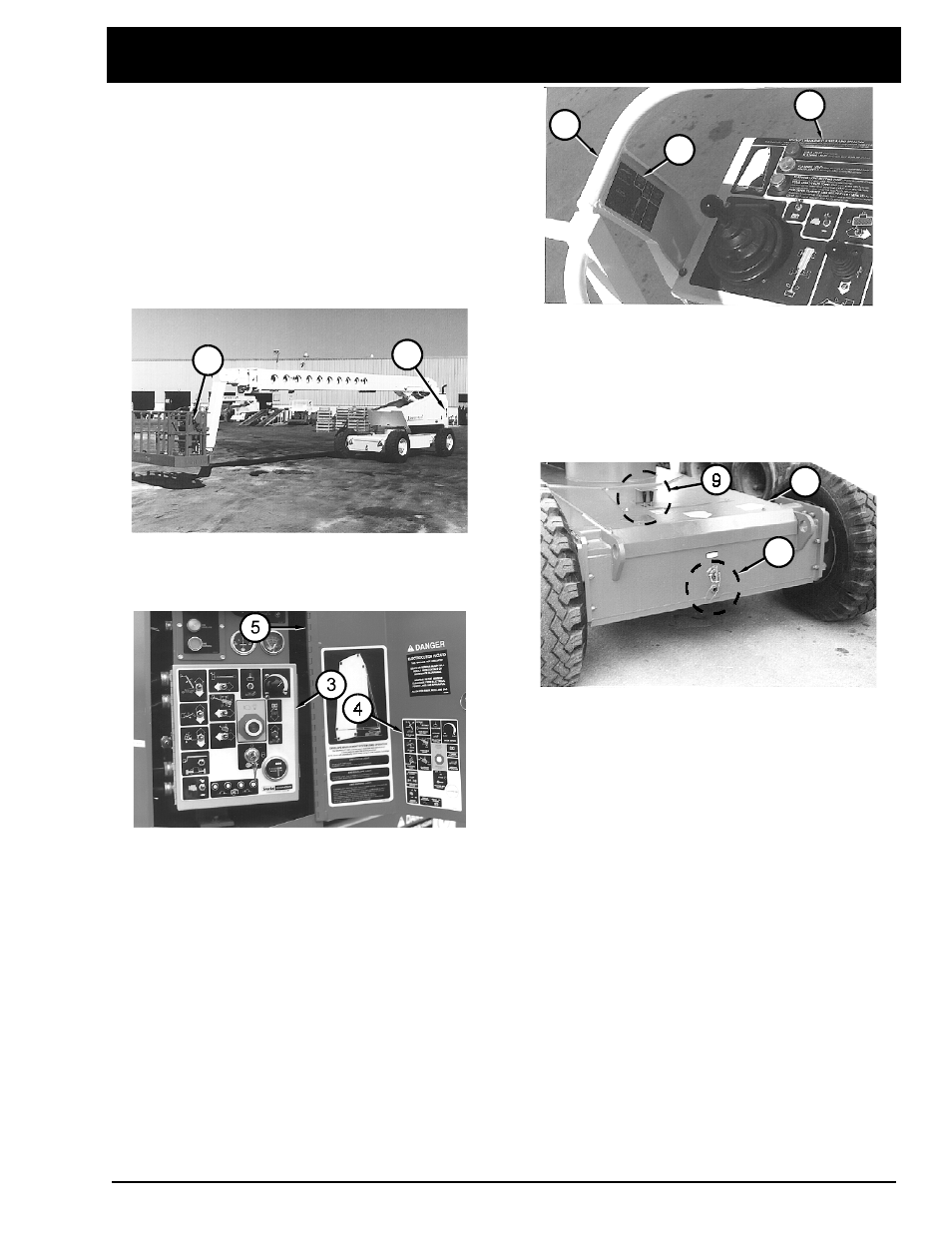

The main operating functions of a TB126J can
be controlled from the ground-control box (1) or
the platform-control box (2).
The names of the different controls on the
ground-control box (3) are shown on a decal (4)
on the inside of the door (5). The decal also
shows the names of the different settings to
which each control can be set.
8
7
6
The names of the controls on the top left half of
the platform-control box (6) are shown on a decal
(7) in the left side of the handrail weldment (8).
There is a second similar decal on the right side
of the handrail weldment (8) that shows the
names of controls on the right half of the
platform-control box.
11
1 0
Controls (9) for operating the jack and extendible
axles are on the rear of the chassis (11) along
with the axle interlock (10)
See the “EMERGENCY OPERATION” chapter
for the locations of emergency bleed down
controls and for correct emergency bleed down
procedures.
