Chapter 9. emergency operation – Snorkel SP22 User Manual
Page 53
the hubs in freewheel mode. The work
platform can not be steered when being
towed.
Use the following procedure to manually freewheel
the drive hubs (refer to Figure 8.6).
1. Remove ‘R’ shaped clip.
2. Push plunger in fully.
3. Replace ‘R’ shaped clip.
Reverse the procedure to re-engage hubs.

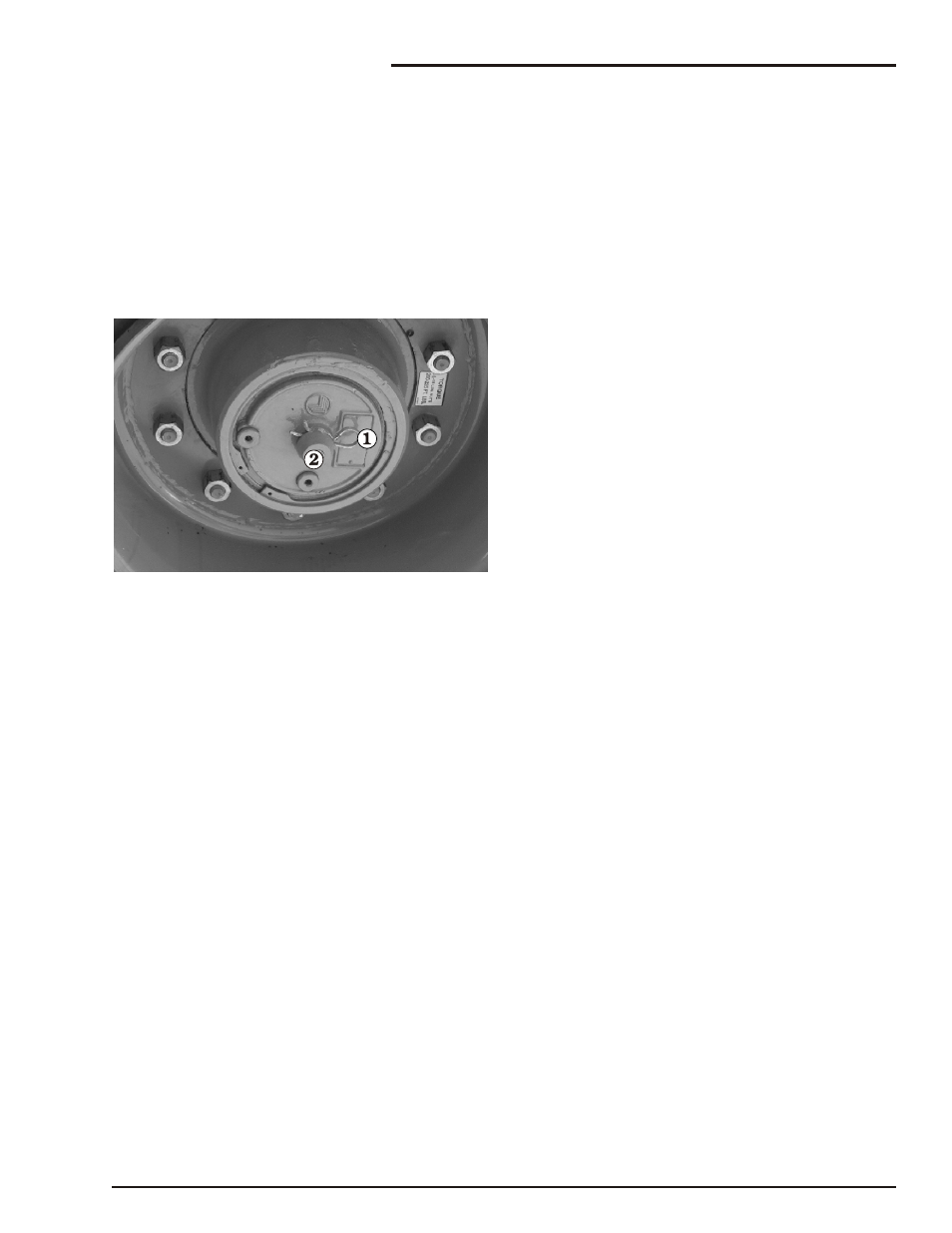

Figure 8.6—Drive Wheel Hub
SP20/SP22 – 11890A
page 9 - 3
Chapter 9. Emergency Operation
