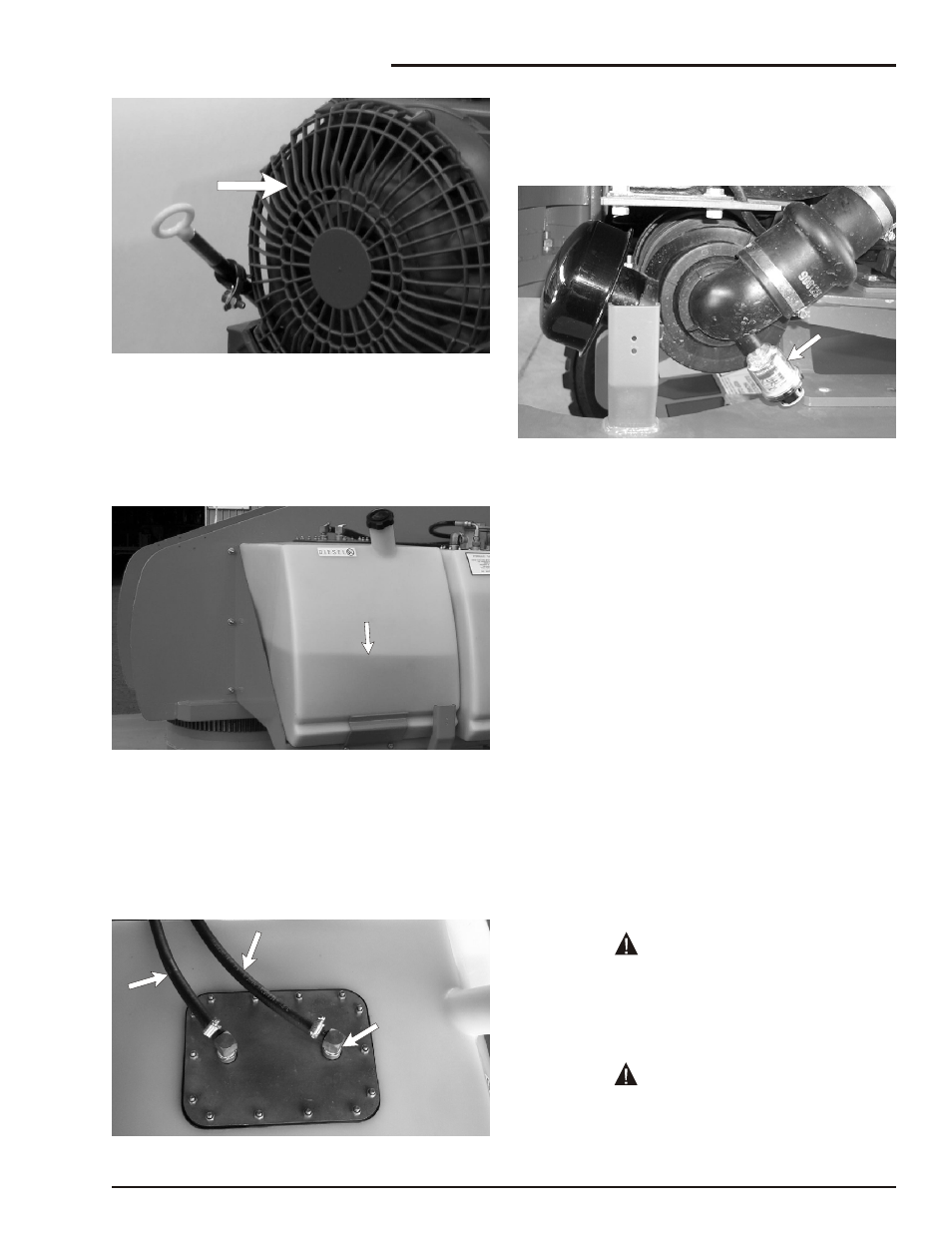

Figure 6.4—Deutz Air Intake
❑ Fuel Tank
Check the fuel level (refer to Figure 6.5) and add
fuel if necessary. Make sure the cap is securely
fastened.
Figure 6.5—Diesel Tank
❑ Fuel Line
Visually inspect the entire length of the fuel line.
Start at the fuel tank and trace the line (refer to
Figure 6.6) to the engine inspecting for leaks and
damage.
Figure 6.6—Fuel Line
❑
Air Filter
The air filter gauge (refer to Figure 6.7) has a yellow
disk in it that rises toward the red zone as the filter
clogs.
Figure 6.7—Air Filter
To inspect the air filter:
1. Turn the battery disconnect switch on and
close the cowling door.
2. At the lower controls, set the emergency stop
switch on.
3. Insert the key into the master switch and turn
the engine on.
4. Check the yellow disk after running the
engine for 30 seconds.
● If the yellow disk is in the red zone replace
the filter.
● If the yellow disk is in the green zone the
filter is OK.
5. Shut off the engine.
■ Electrical System
Electrical power is supplied from a 335 amp/hour,
12 volt battery This battery supplies 12 volt DC
electrical power to operate the aerial platform
electrical and electro hydraulic components.
Batteries give off hydrogen and oxygen that
can combine explosively. Death or serious
injury can result from a chemical explosion.
Do not smoke or permit open flames or
sparks when checking the batteries.
Even with low voltage electrical systems,
severe arcing can occur. Electrical shock or
component damage can result from contact
SP20/SP22 – 11890A page 7 - 3
Chapter 7. Pre-operational Inspection
DANGER
CAUTION
