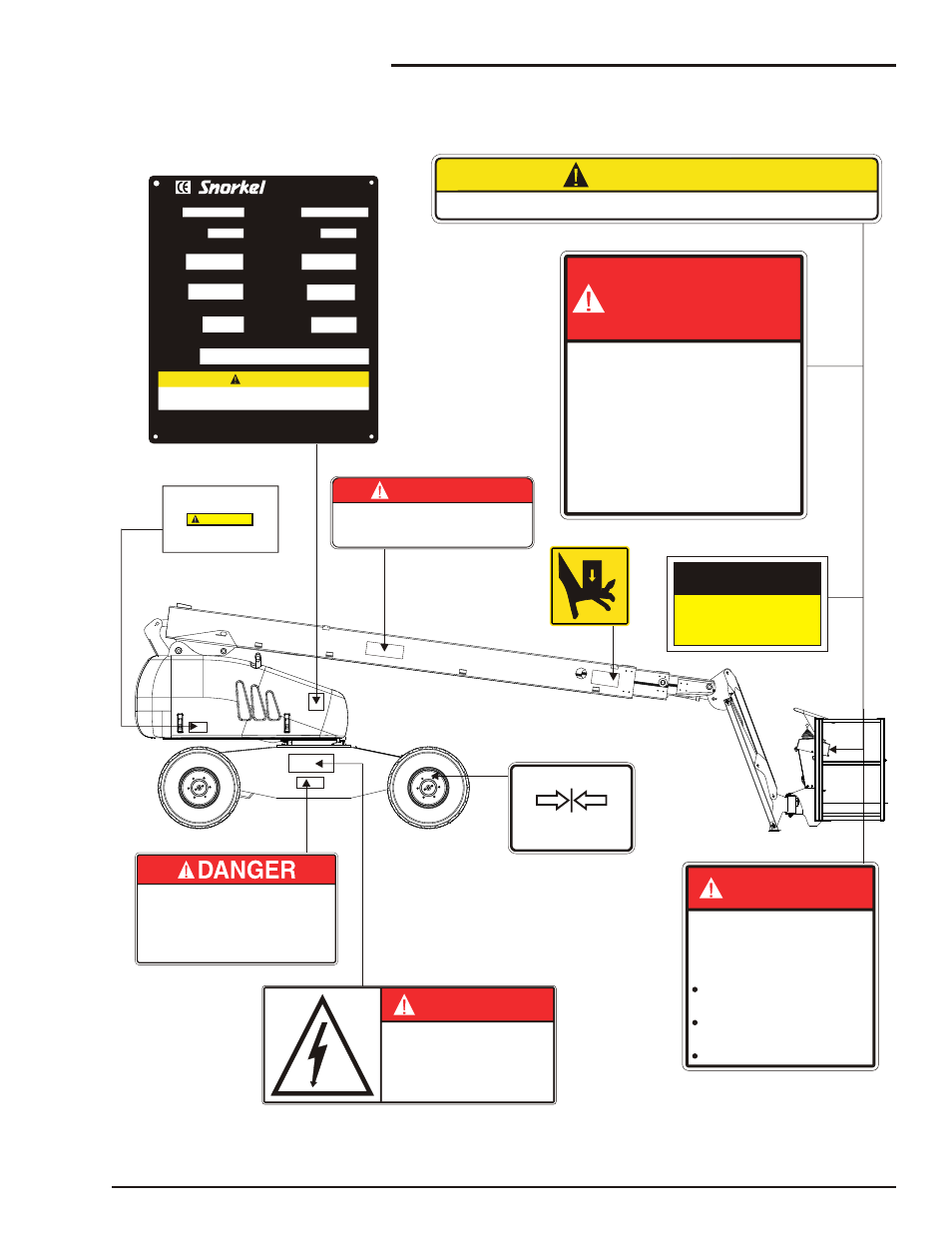

■ Safety Placards and Decals Drawing 2
SP17/SP18 – 11972A page 2 - 7
Chapter 2. Safety
DANGER
DO NOT ALTER OR DISABLE
LIMIT SWITCHES, SAFETY
SWITCHES, OR INTERLOCKS.
451986
0190989E
DANGER
ELECTROCUTION
HAZARD
KEEP CLEAR
Death or serious injury can result from touching
this machine if this machine is in contact with
electrical power lines or apparatus.
0323896
This machine is equipped with foam filled or solid tires, wheel weight is
critical for stability.
To prevent machine tip over, replace tires with factory approved foam
filled or solid tires ONLY.
DO NOT attempt to inflate foam filled or solid tires.
0073298
MACHINE TIPOVER HAZARD
DEATH or serious injury can result if machine tips over.
DANGER
ELECTROCUTION
HAZARD
THIS MACHINE IS NOT
ELECTRICALLY INSULATED.
0323899
Death or serious injury can result from
contact or inadequate clearance to
electrical power lines and apparatus.
Maintain 10 feet minimum clearance
from electrical power lines and
apparatus.
Allow for sway, rock, and sag.
CAUTION
DO NOT USE BOOM TO LIFT OR PUSH MACHINE
0073668
YOU MUST NOT OPERATE THIS DEVICE UNLESS:
AN UNTRAINED OPERATOR SUBJECTS HIMSELF AND OTHERS TO
DEATH OR SERIOUS INJURY.
0323897
1.
2.
YOU HAVE BEEN TRAINED IN THE SAFE OPERATION OF THIS
DEVICE AND
HHHH
YOU KNOW AND FOLLOW THE SAFETY AND OPERATING
RECOMMENDATIONS CONTAINED IN THE MANUFACTURER'S
MANUALS, YOUR EMPLOYER'S WORK RULES, AND APPLI-
CABLE GOVERNMENTAL REGULATIONS.
HHHHHHHH
DANGER
11868
0323896
0323899
0073298
11896
12044
0190989E
99228
451986
0323897
0073668
SAFETY BELTS WITH
CAUTION
SHOULDER STRAPS OR
SAFETY HARNESS ARE
TO BE USED
SAFETY BELTS WITH
9928
ENGINE SWING TRAY LATCH
ENSURE TRAY IS PROPERLY LATCHED AND
SECURITY PIN IS IN PLACE BEFORE RUNNING
ENGINE.
ALWAYS ENSURE PIVOT LOCK IS ENGAGED
WHEN ENGINE TRAY IS IN OPEN POSITION
WARNING
11868
CAUTION
Do not remove any weight from this machine Any weight added must be
distributed equally on each axle. Proper stability and axle weights of
this machine are based on the platform size shown above.
SERIAL
NUMBER MODEL
NUMBER
MAXIMUM
MACHINE
WEIGHT lbs
kg
MAXIMUM
WHEEL
LOAD lbs
kg
MONTH / YEAR
OF MANUFACTURE SLOPE SENSOR
ALARM SETTING deg
MAXIMUM
PLATFORM
HEIGHT ft
m
MACHINERY DIRECTIVE 98/37/CEE
PLATFORM
CAPACITY
MAXIMUM
ALLOWABLE
MANUAL FORCE
(SIDE PULL)
lbs
N
MAXIMUM
ALLOWABLE
WIND SPEED mi/h
m/s
OUTRIGGER
LOAD ft
m
11896
36 Bruce Road
Levin 5500 - New Zealand
= 227 kg = 2 PERSONS + ADD. LOAD
12044
TORQUE
135-145 Ft. Lbs.
· 190-200 N m
