S2033 – 330003EE 9
This aerial work platform is manufactured with safety de-
vices, placards, and decals to reduce the likelihood of an
accident. For the safety of all personnel, do not disable,
modify, or ignore any safety device. Safety devices are
included in the daily prestart inspection.
A
Warning
The potential for an accident increases when safety
devices do not function properly. Death or serious
injury can result from such accidents. Do not alter,
disable, or override any safety device.
If any safety devices are defective, remove the aerial plat-
form from service until qualified maintenance personnel
can make repairs.
Emergency Stop Controls
There is an emergency stop control at the lower and up-
per controls.
At the lower controls, the emergency stop is a two-posi-
tion toggle switch (refer to Figure 4.1) with a red safety
guard.
Push the red safety guard down over the toggle switch to
disconnect power to all control circuits. Lift the guard
and push the toggle switch up to restore power.

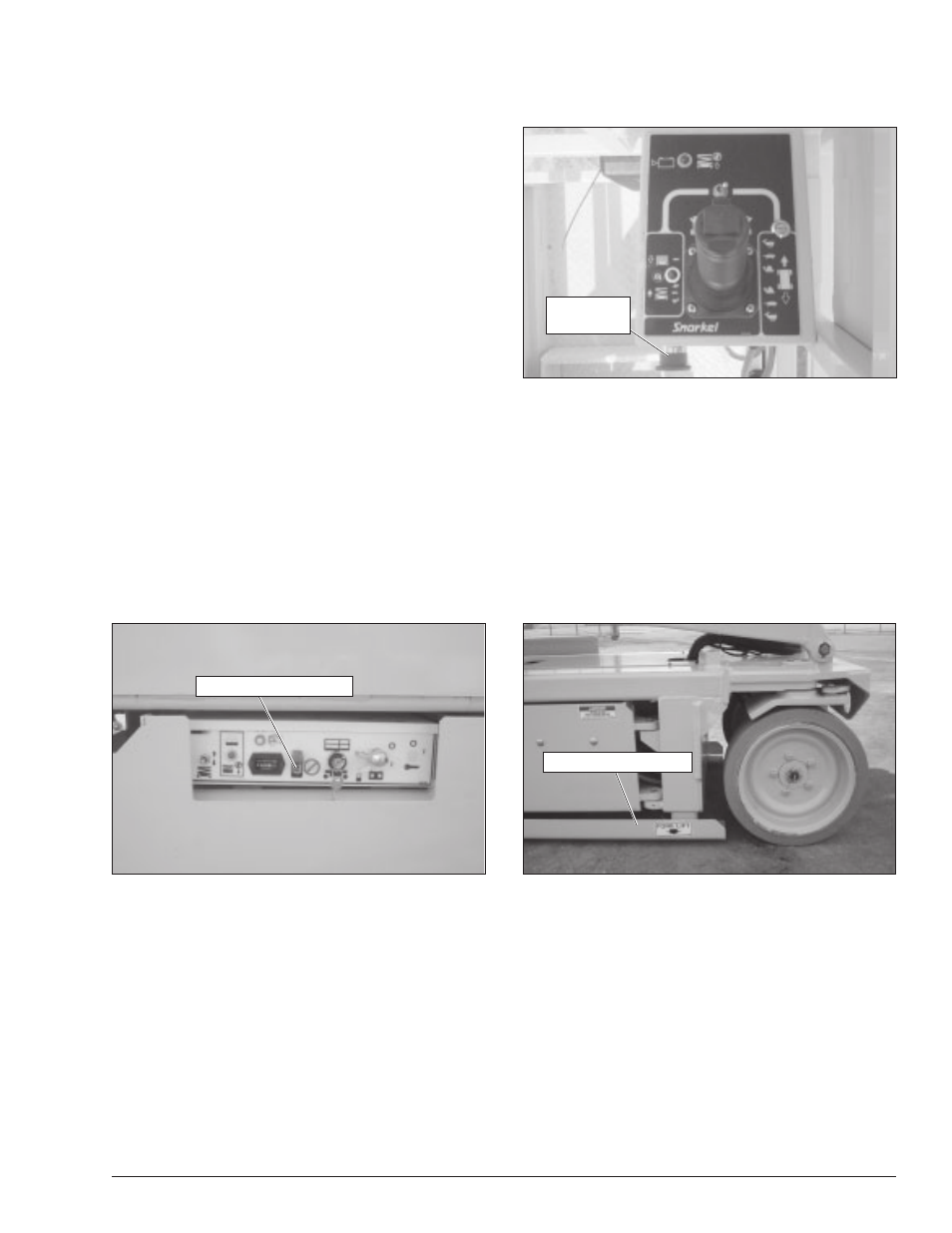

Figure 4.1 – Lower Controls
Note
The lower controls override the upper controls. If the up-
per control emergency stop button is engaged, the lower
controls can still be used to operate the aerial platform.
At the upper controls, the emergency stop is a two-posi-
tion push button (refer to Figure 4.2).
Push the emergency stop button in to disconnect power
to the upper control circuits. Pull the button out to re-
store power.
Chapter 4 – Safety Devices
Figure 4.2 – Upper Controls
Drive Motion Alarm
When the joystick is moved out of neutral to drive the
aerial platform, the alarm emits a loud beeping sound to
warn personnel in the work area to stand clear.
Pothole Protector Skids
The pothole protector skids automatically lower when the
platform is elevated approximately 30 cm (12 ″). Ground
clearance is reduced from 8.3 cm (3 1 /
4
″) to 1.9 cm ( 3 /
4
″)
when the skids lock into position (refer to Figure 4.3).
Figure 4.3 – Pothole Protector Skids
A
Danger
The aerial platform can tip over if it becomes un-
stable. Death or serious injury will result from a tip-
over accident. Do not drive or position the aerial
platform for elevated use within four feet of any
drop-off, hole, or other tip-over hazard.
This protection system limits the tilt angle if a wheel is
driven into a drop-off or hole. This greatly reduces the
likelihood of the aerial platform tipping over.
The pothole protection system is for added protection
and does not justify operating near drop-offs or holes.
Emergency Stop Switch
Emergency
Stop Button
Pothole Protector Skid
