OPERATOR’S MANUAL with Maintenance Information
Safety Rules
7

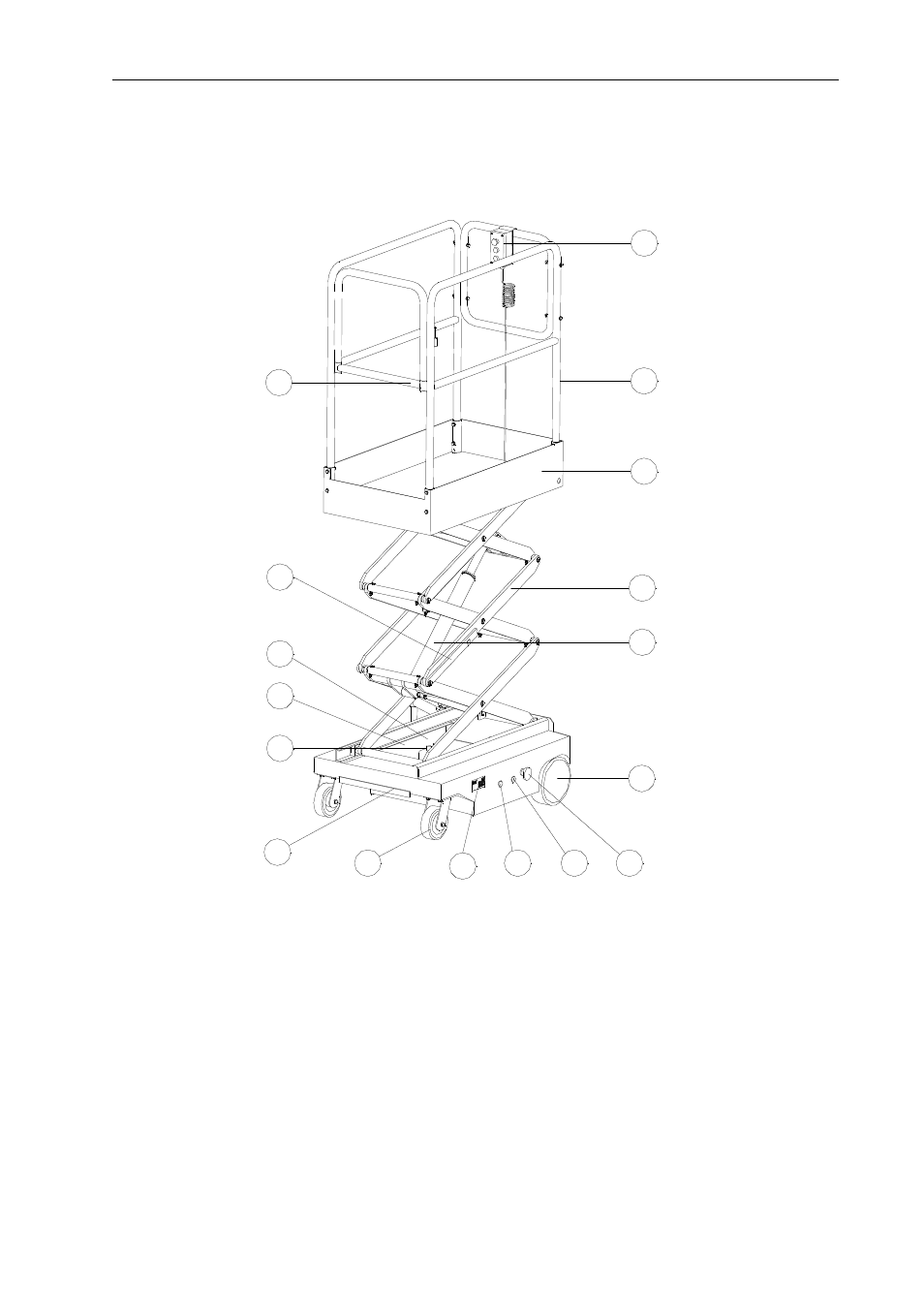

Legend
1 Platform controller
2 Platform guard rails
3 Platform
4 Scissor
5 Hydraulic cylinder
6 Drive wheels
7 Red Emergency Stop button
8 Key switch for power
9 Power indicator light
10 Charger
11 Steer tire
12 Step
13 Batteries
14 Auxiliary lowering knorb (hidden from view)
15 Hydraulic power pack
16 Safety arms
17 Platform entry gate
1
2
3
4
5
16
11 10 9 8 7
6
12
17
13
14
15
