Chapter 5 Transport and set up
5.1 Transport and Storage
5.1.1 Moving the equipment
5.1.1.1 The platform should fall down to the bottom when you are moving the equipment
to other working places and then retract the turning stabilizers. The supporting
foundations should be made away from the ground and then push the whole machine
to the destination. If the equipment goes across the uneven ground, the supporting
foundations should be away from the ground so far as to prevent the bolt from bending
by the obstacles.

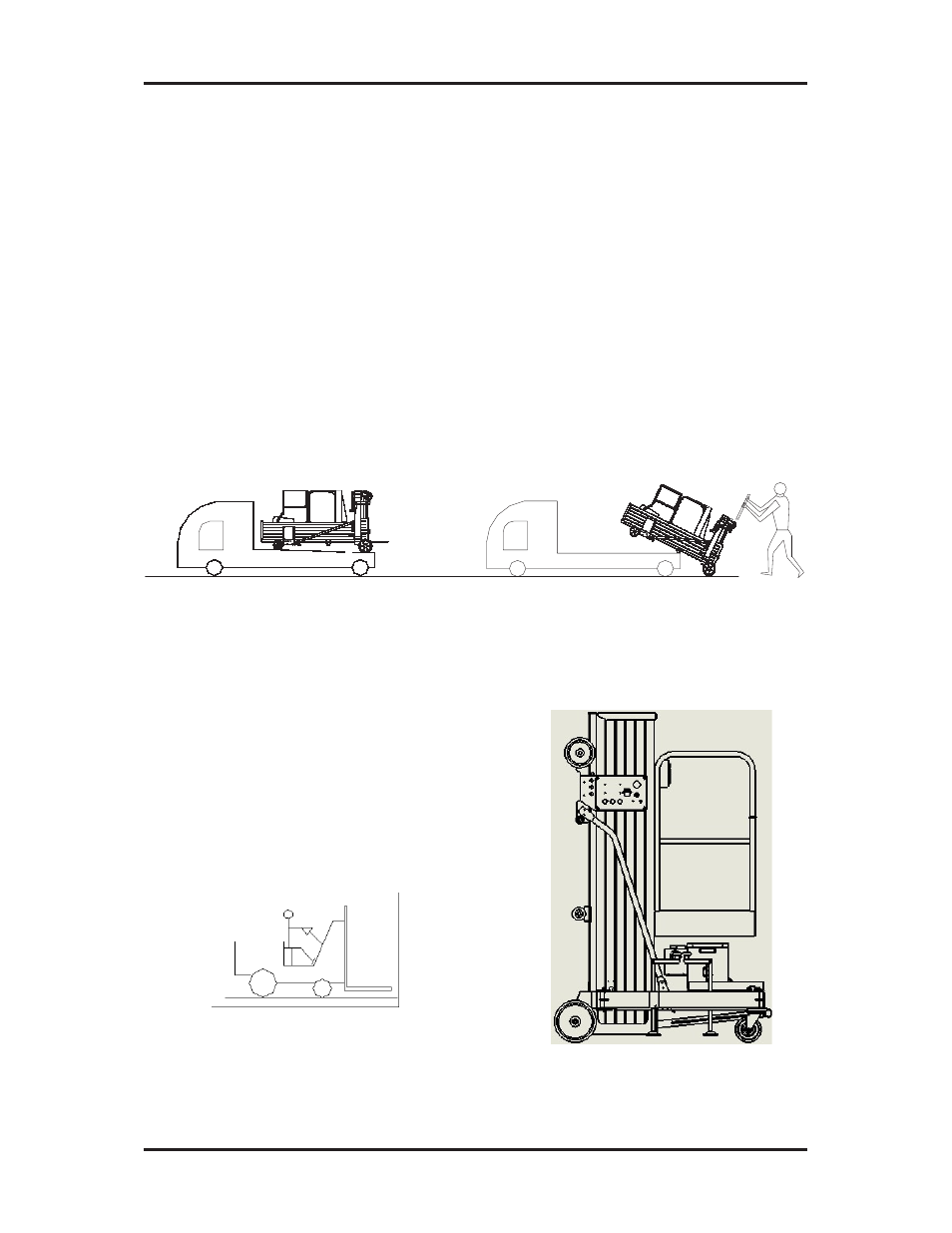

5.1.1.2 If the platform is carried in a little distance, using ―easy loading in pickup
trucks, The sketch below shows the lifting points and method of loading.
Note: 1. If transporting in below way, Platform must be lock in company with chassis.
Avoid platform gliding and chain loosing.
2. When DC machine be transported in below way, Please draw jack, Pull outside
battery box. But raising platform, Battery box must be in this machine, Or reduce
machine stability.
5.1.1.3 If the platform is carried in a long distance, other loading tools should be used
for transportation. A forklift should be used for loading onto other vehicles.
It should be lifted upward from the bottom. The sketch below shows the lifting
Note: Pull the plug of the power supply out of the socket when you move the whole
equipment, cut off the power supply to avoid any unnecessary accidents.
