Installation Instructions
Dual Battery Tray (Part # 2800)
97-06 Jeep Wranglers

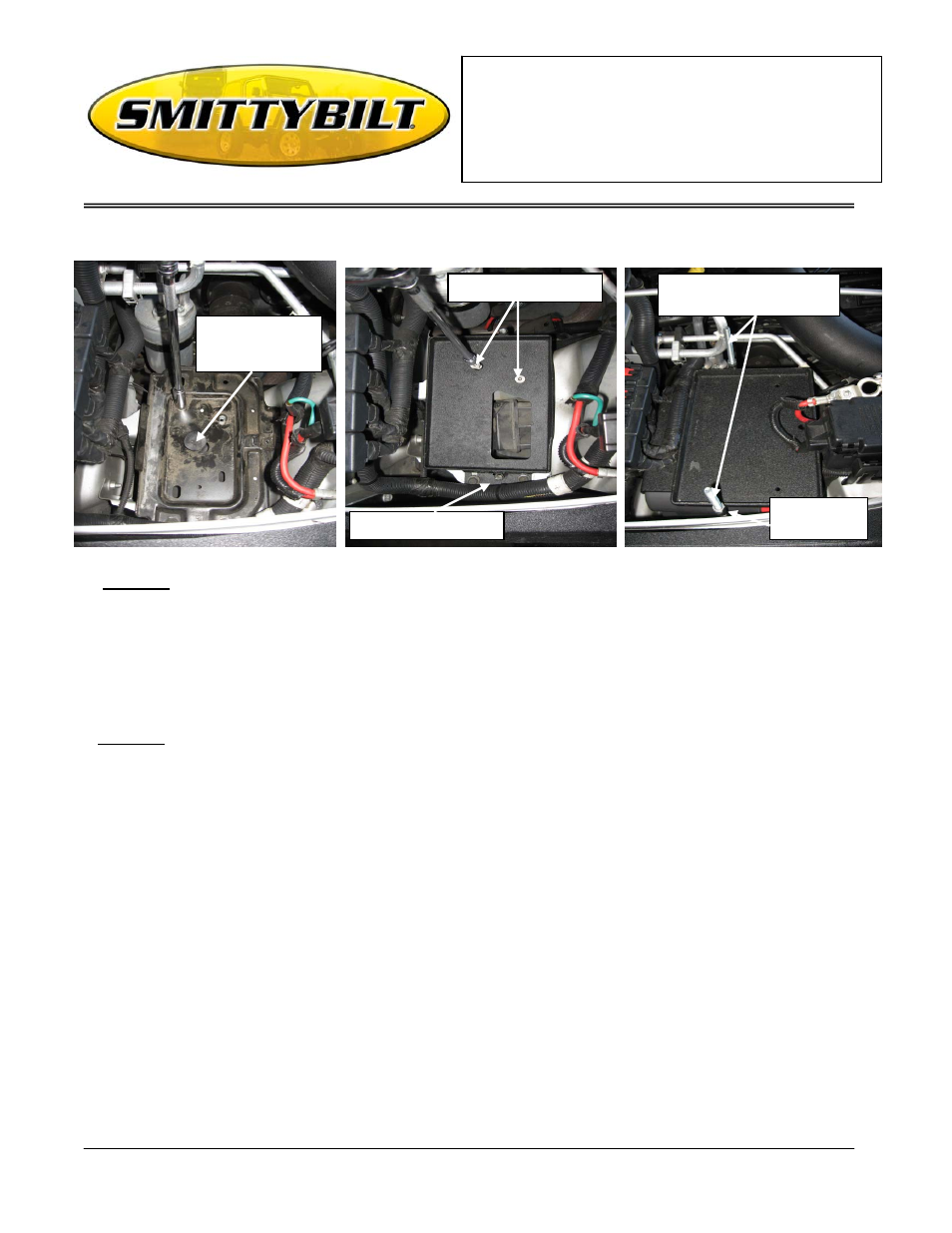

(Fig A) (Fig B) (Fig C)
STEP 3:
• Install the first battery with the terminals down and pointing towards the front of the vehicle.
• Place the middle tray on top of the battery, making sure it fits snug.
• Slide the threaded rods through the holes in the middle plate and thread into the bottom
plate.
• Install and thread hex nuts down the threaded rods to secure the middle tray down. Do not
over-tighten them; this may cause damage to the battery. Fig C
STEP 4:
• Now place the second battery on top of the middle tray.
• Place the upper clamp over the battery and lineup the holes in it with the previously installed
threaded rods.
• Secure clamp with hex nuts, again taking caution not to tighten too much in order to prevent
damage to the battery. Fig D, E, F.
Re-use factory bolts here.
Use supplied bolts here
Disconnect battery
temperature sending
unit.
Slide rods through top hole and
thread into bottom holes.
Secure tray
with hex-nuts
