Installation Instructions
Air Compressor
Part # 2780, 2781
HARD MOUNTING:
This compressor may be hard mounted in a dry location. Be sure to use proper size wiring for your
application. When using this unit with an air tank, you must install a back-flow preventing device to prevent
damage to the cylinder head air valve.
EXTRA CAUTION:
Small items will inflate quickly and can easily be damaged. Pay special attention to bicycle tires. They inflate
very fast and can rupture. Be prepared to stop the unit quickly when manufacturer
’
s recommended inflation
pressure is reached.
OPERATING WARNING:
When operating the compressor, be sure to be in a safe location off of the roadway and away from traffic.
Unpack the compressor and inspect for damage. Fully un-wrap the power cord.
Place the compressor on a dry level surface. Attach the air filter to the front of the unit and finger
tighten.(2780)

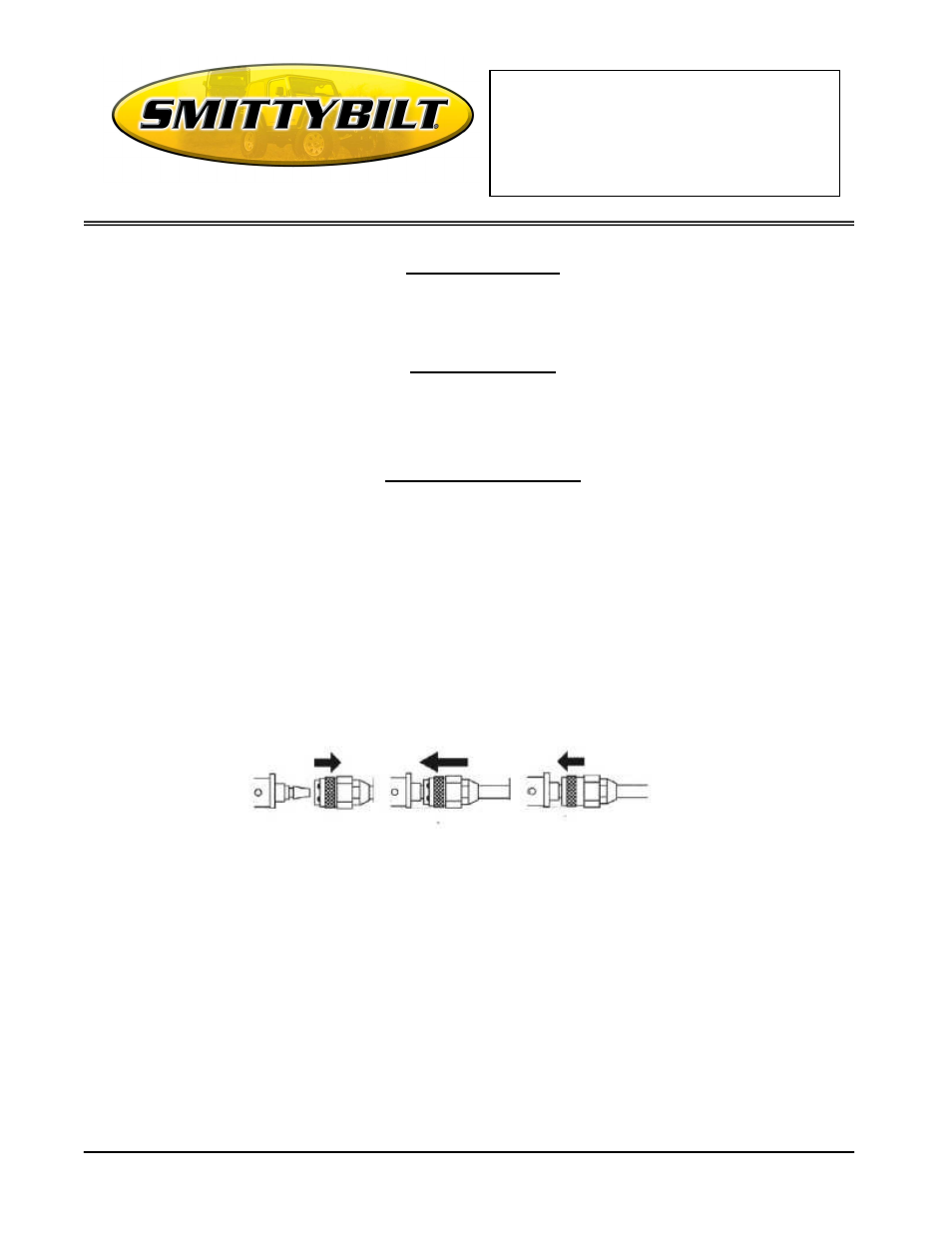

Connect the air supply hose to the compressor using the quick connect fitting.
1. Slide retaining snap ring back.
2. Slide the fittings together firmly.
3. While holding fittings together firmly slide the outer ring forward to lock
Connect the RED power clip to a POSIVITE 12 volt source. Connect the BLACK power clip to a NEGATIVE
ground point.
Test the connections by switching the compressor to
“
on
”
. Air will begin to flow.
Connect the air hose by screwing the brass inflator onto the tire valve stem. Only finger tighten the inflator.
Do valve stem.
Watch the gauge closely, switch the unit off or remove the inflator from the tire when the manufacturer
’
s
recommended pressure has been achieved.
