Smittybilt DSx-x Defender Series Rack Mount User Manual
Page 2
WWW.SMITTYBILT.COM
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
Installation Instructions
Defender Series
Rack Mount
Part #DS5-6,DS5-8,DS6-6
Step 1:

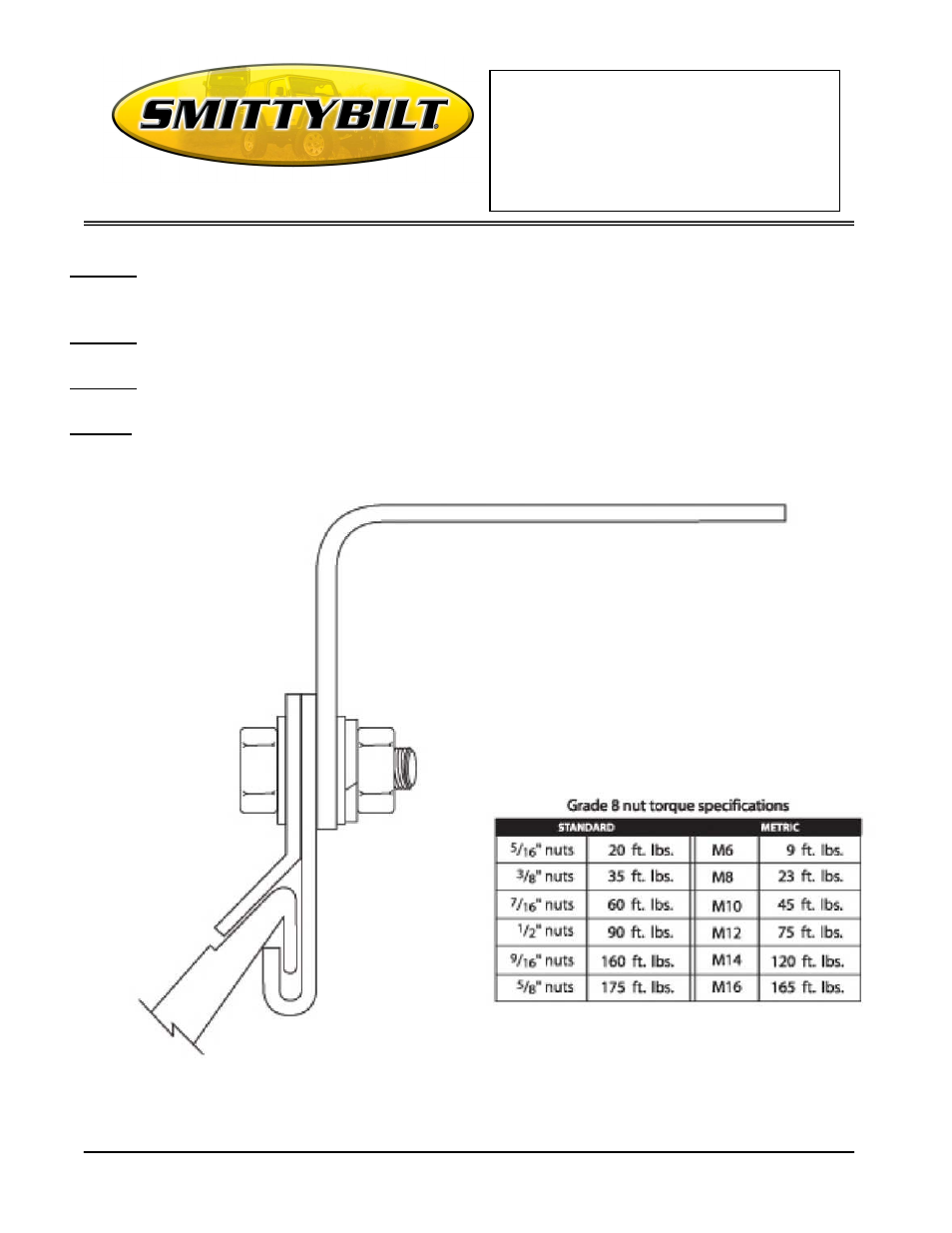

Assemble the bracket assemblies, and place on each side of factory rails per diagram.
Do not tighten at this time.
Step 2:
Position roof rack on brackets and attach with 5/16” hardware.
Step 3:
Once the rack and brackets are in the desired location, tighten all hardware.
Notes:
Defender Roof Racks are rated for loads of no more than 150lbs. evenly distributed.
When carrying a spare tire, the tire should not exceed 33” diameter
