Installation Instructions:
(Part# SB76521)
XRC Front Stinger
87-06 TJ/YJ Jeep Wranglers
STEP 1: Remove the front plastic frame/stabilizer bar cover. (Fig A)
NOTE: The stabilizer cover will not be re-used.
STEP 2: Remove front bumper hardware and tow hooks (if equipped). (Fig A)
STEP 3: Install the stinger bumper (93-5790) and tow hooks using the previously removed OE hard-
ware and supplied 1/2” washers on the bottom mounting bolts. Torque the OE bolts to factory speci-
fications.
(Fig
A)
NOTE: Minor grinding of the frame horns may be necessary on certain YJ model installations.
NOTE: If you are installing winch plate (SB2802) at this time, secure the front bumper using
the supplied winch plate hardware.
STEP 4: Installation is now complete. Check to make sure all bolts are secure.
Installation:
NOTE: Carefully read entire instructions thoroughly before attempting to assemble and/or install this
product. These steps are to be used in conjunction with vehicles equipped with O.E.M. front bumpers.
Similar steps can be used with other after-market bumpers.
93-5790 Stinger Front Bumper 1
90-6735 Hardware Pack: 1
1/2" USS Gr. 8 Flat Washer 2
Parts Included
QTY.
OE
Bolts
OE
Bolts
93-5790
Stinger
Bumper

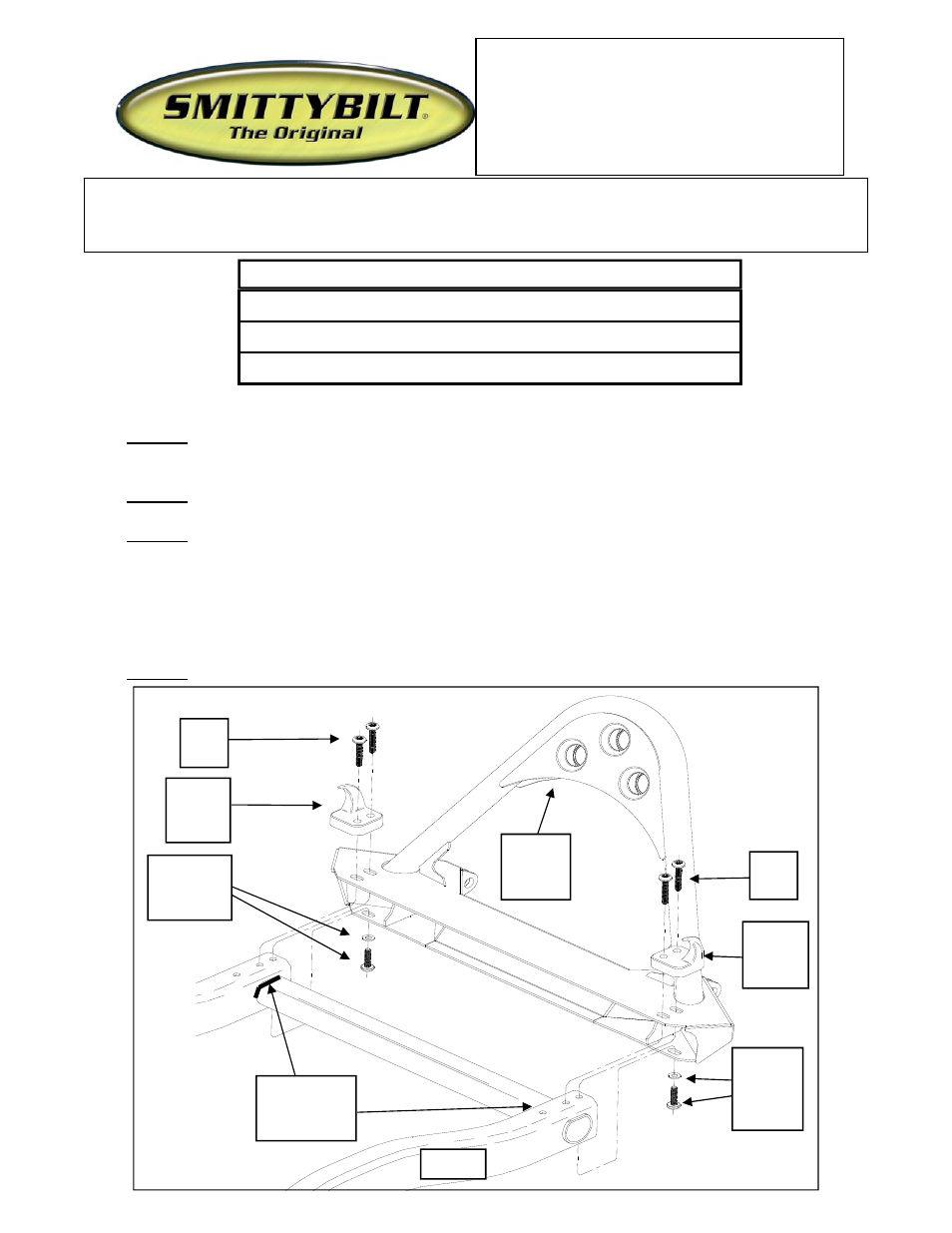

Fig. A
Factory
Tow
Hook
Factory
Tow
Hook
OE Bolt
& 1/2”
Flat
Washer
OE Bolt &
1/2” Flat
Washer
Grind the
Welds for YJ
Installation
