Installation Instructions
Standard Top (Part, 928xx)
1992-1995 Jeep Wranglers
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 West Artesia , Compton, CA 90220

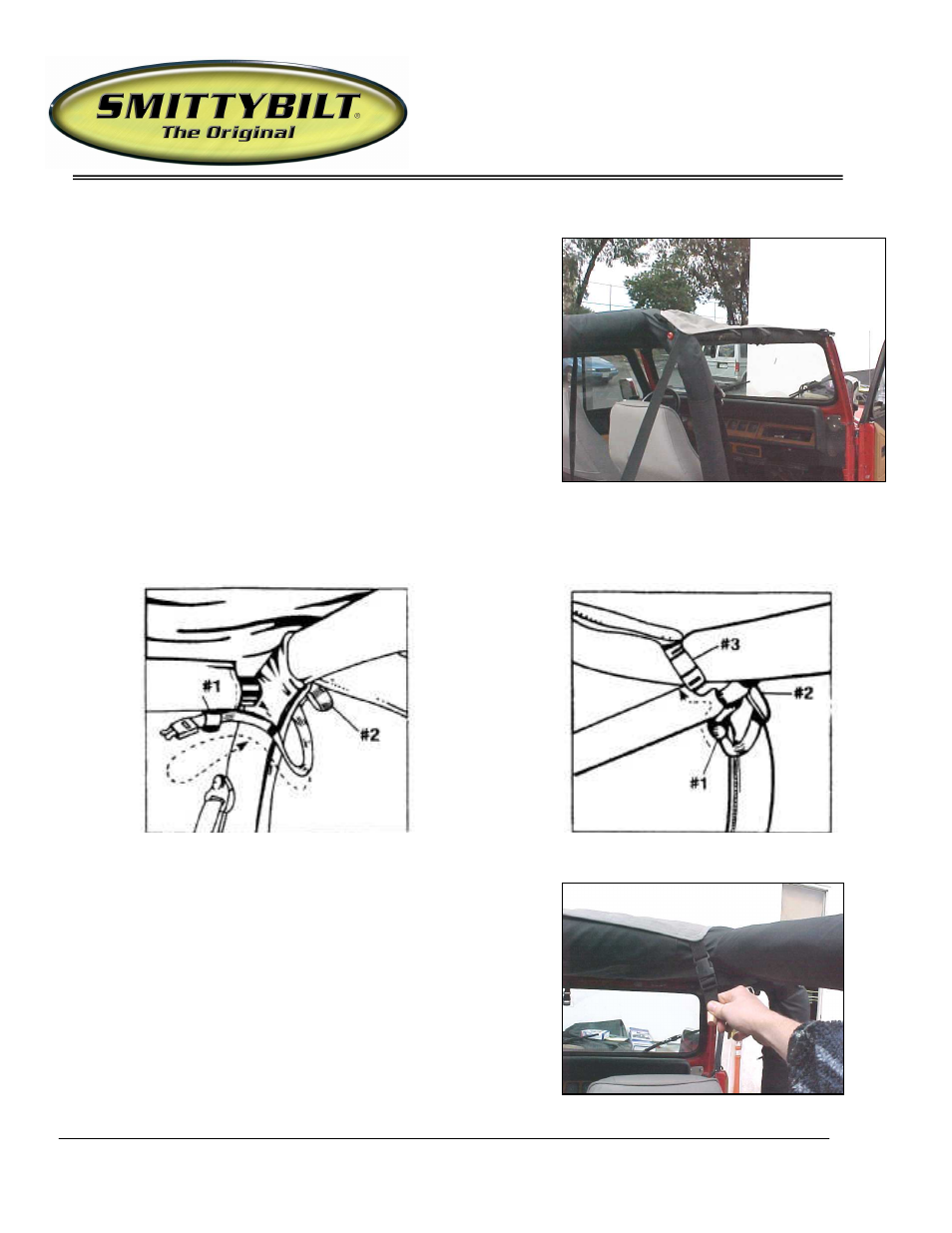

3. Lay the back of the Brief over the central roll bar and pull the rear corner straps (Figure 4).
4. Pull the straps under the central roll bar through the Side Loops #1, then pull the straps towards the rear of
the vehicle and insert through the Rear Loops #2 (Figures 5 & 6). Attach the strap to the mating buckle #3
(Figures 6 & 7).
Figure 5
Figure 7
Figure 6
Central
Roll Bar
Central
Roll Bar
Figure 4
