Installation Instructions
C-RES
(Cargo Restraint System)
Part # 521035 (92-95 Wrangler)
Part # 561035 (97-06 Wrangler)

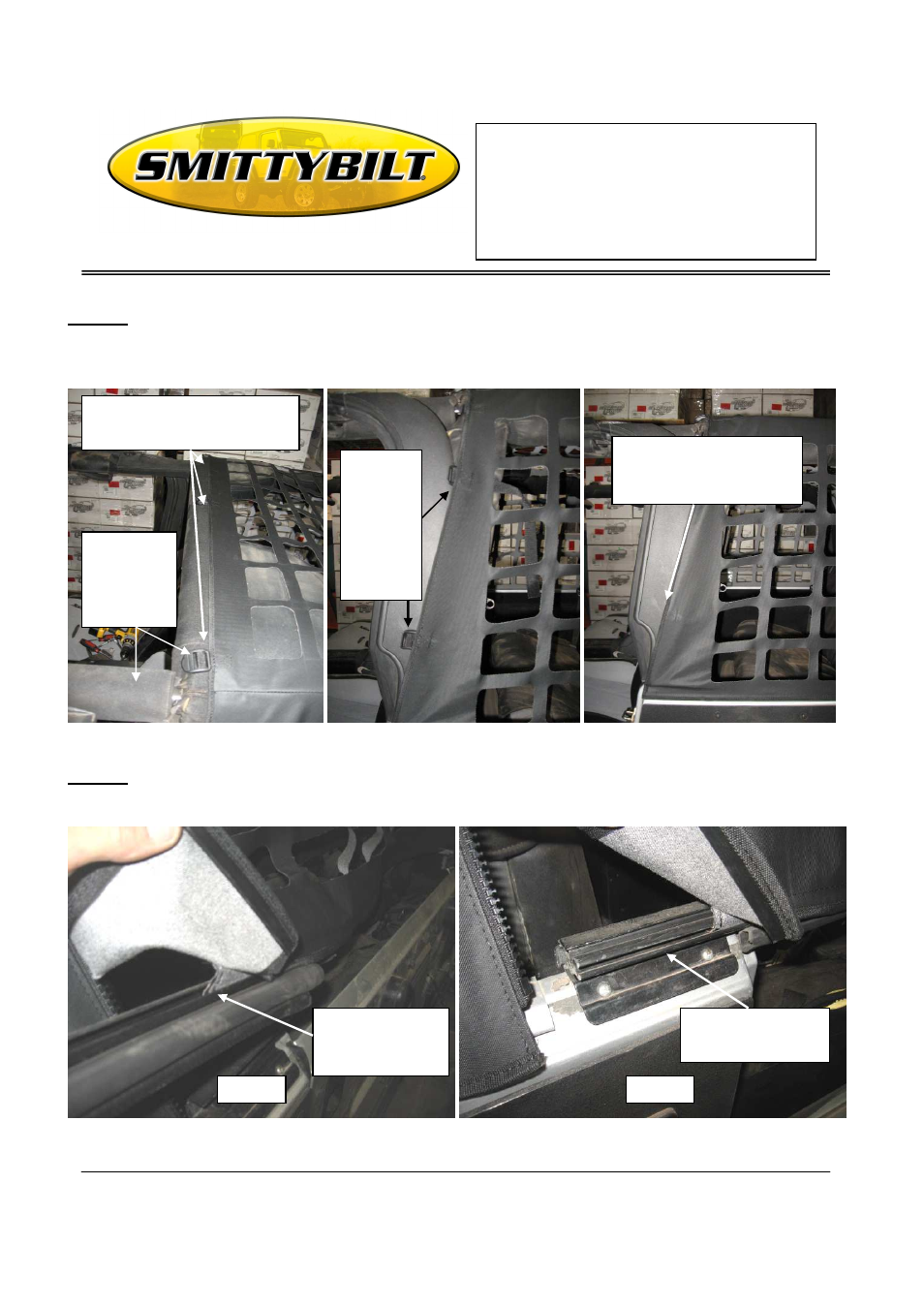

Step 5: Fasten the two side straps along the side of the sport bar. (Fig D)
Note: If you have a TJ and keep the door surrounds on, simply tuck the bottom
buckle under the top. (Fig E) Do not fully tighten at this time.
(Fig C) (Fig D) (Fig E)
Step 6: Slide your tail-gate retaining bar into the sewn in extrusion on the back of your top
(Fig F) Once all the way on lock the bar into the brackets (Fig G)
Begin fastening the 3 straps along
the top around the sport bar.
If you have a TJ and keep the
door surrounds on, simply
tuck
the bottom Buckle under the
top.
Fasten
the two
side
straps
along the
side of
the sport
bar.
Fig F Fig G
Lock the bar into
the brackets. Slide your tail-gate
retaining bar into the
sewn in extrusion on
the back of your top
The corner
straps go
around the
side sport
bar.
