Smittybilt 869000 Easy Install Billet Grille - Manual

For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 1600 Walnut Parkway, Rancho Dominguez, CA 90220
Installation Instructions
Easy Install Billet Grille (Part # 869000)
1997-2006 Jeep Wrangler
NOTE: Carefully read entire instructions thoroughly before
attempting to install this part.
TOOLS REQUIRED
-- Phillips Screw Driver
-- 4mm wrench
INCLUDED COMPONENTS
1 – Billet Grille (7 pieces)
21 – Metal Brackets
21 – M4 x20mm Phillips Screws
21 – M4 Flange Nuts

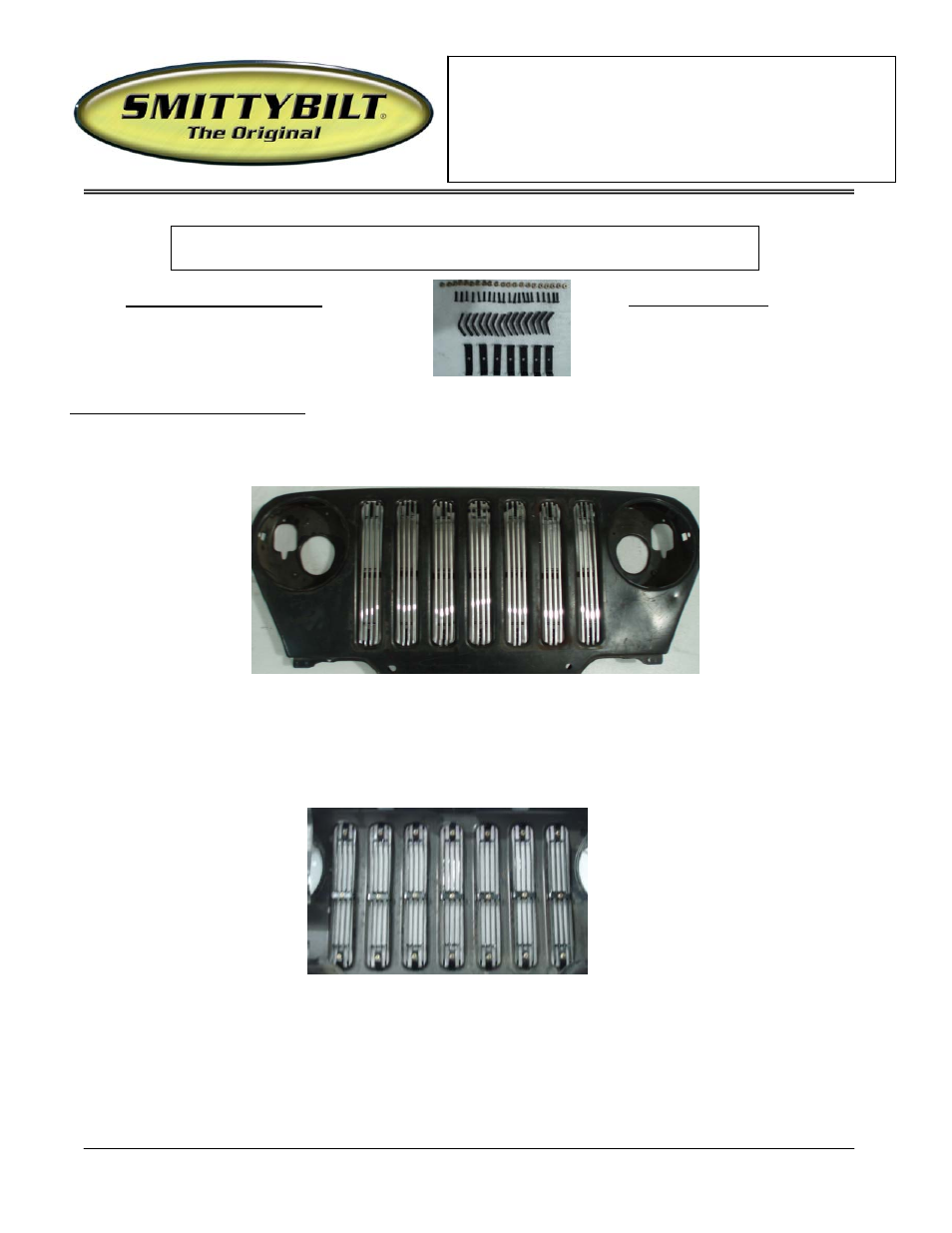

Figure 1 – Included Hardware
INSTALLATION INSTRUCTIONS
1. Inspect product and check components with items listed above.
2. Pop Hood. Position the lower Billet Grille onto grille shell cavity (Figure 2).
Figure 2 – Front View of positioning lower Billet Grille
3. Loosely attach the Billet Grille by holding the Metal Brackets behind factory grille shell and inserting the Phillips
Screws (from the front) through the Billet Grille holes and Metal Brackets, secure them with Flange Nuts
provided (Figure 3).
Figure 3 – Rear view of vehicle’s shell; Billet Grills attached with Metal Brackets and Flange Nuts
4. Repeat Steps 4 and 5 for top section of Billet Grille.
5. Once the Billet Grilles are loosely attached, center them and tighten all Phillips Screws at the same rate.
