Installation Instructions
SRC Classic Sides (Part # 76636)
07-10 Jeep Unlimited (4-Door)
Step 4: Loosely attach the guard to the vehicle by inserting the 2-10mm hex bolts into the
nut clips and 6mm lock-nuts onto the bracket studs that go through the pinch weld
area. (Fig D)
Step 5: Insert the 8mm hex bolt with flat washer through the rear bracket into the factory
threaded hole in the bottom of your body tub. (Fig E)

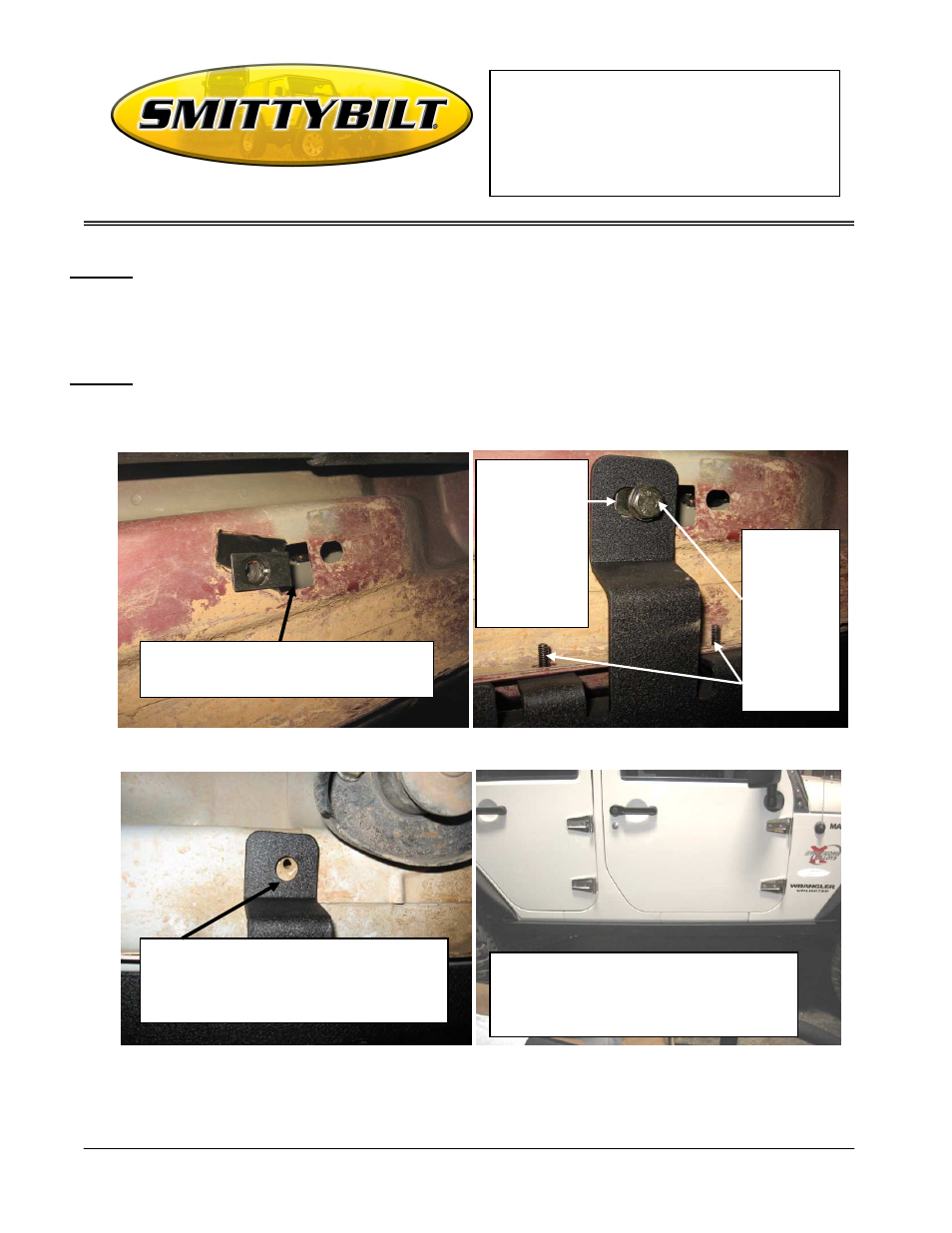

(Fig C) (Fig D)
(Fig E) (Fig F)
Insert clip into body by sliding it in
through the square hole next to it
Identify the two
holes (one front
and one in the
center) on the
bottom of the
body that the
Nut-clips will be
inserted into by
where the top
brackets align
with.
Loosely
attach the
guard to the
vehicle by
inserting the
10mm hex
bolts into the
nut clips and
6mm lock-
nuts onto the
bracket
studs.
Insert the 8mm hex bolt with flat washer
through the rear bracket into the factory
threaded hole in the
bottom of your body
tub.
Now proceed to tighten all of the bolts
and nuts completely. Installation is now
complete. Follow these same steps on
the opposite side.
