Installation Instructions
XRC Rock Sliders (Part #76895)
07-09 Jeep Unlimited
(Fig C) (Fig D)

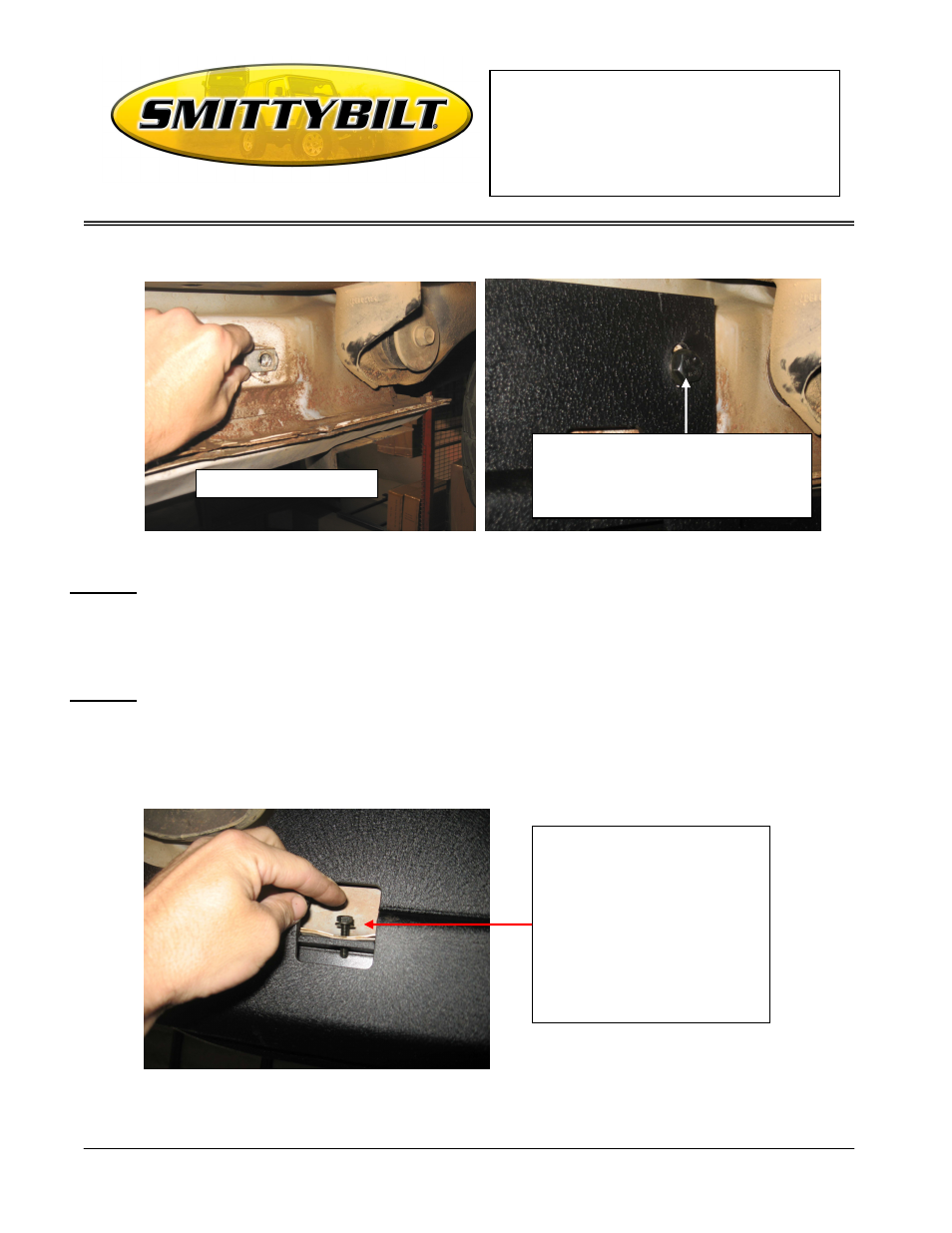

STEP 4: With some help hold the rock-slide up to the vehicle. Align the two slotted holes in the rock-
slider with the previously installed nut-clips. Loosely attach using the included 12 mm bolts
and flat washers. (Fig D)
STEP 5: Now loosely install (6 per side) of the 6mm bolts with flat washers and ny-lock nuts. (Fig E)
These mount through the holes in the pinch-weld of the body and the hole in the rock-slider.
Two go in the front, middle and rear. Note: On some vehicles you may need to drill a hole in
pinch weld area.
(Fig E)
Front driver side shown
Align the two slotted holes in the rock-
slider with the previously installed nut-clips.
Loosely attach using the included 12 mm
bolts and flat washers.
Now loosely install (6 per
side) of the 6mm bolts with
flat washers and ny-lock
nuts. These mount through
the holes in the pinch-weld
of the body and the hole in
the rock-slider. Two go in
the front, middle and rear.
