Installation Instructions
Replacement Top (Part # 98702xx)
1987-1995 Jeep Wrangler

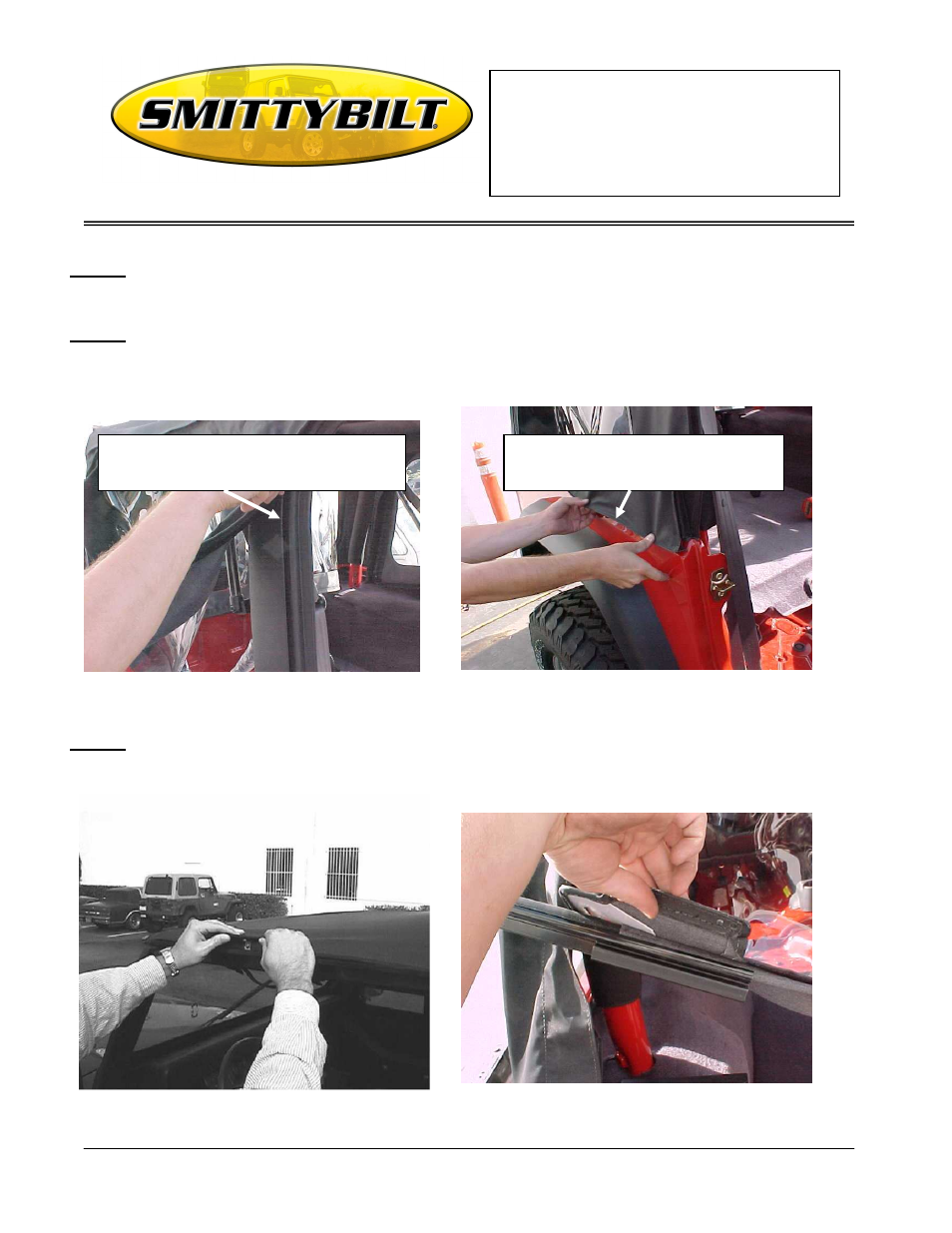

Step 4: Install the rear corners onto the vehicle by sliding the channel on the top into the factory channel
on the vehicle. (Fig D)
Step 5: If windows are detached, attach them now to the top with the zippers. Starting at the top of either
back side of the door, insert the channel on the side of the window into the vertical rail on the bow
assembly. (Fig E)
(Fig E) (Fig F)
Step 6: Insert the channel on the bottom of the windows into the factory rail along the side of the
vehicle (Fig F)
(Fig G) (Fig H)
Insert side channel of window in vertical rail of
bow assembly. (TJ version shown) Insert channel on bottom of window into the
factory channel along the side of the vehicle.
