Installation Instructions:
(Part # SB76793)
SRC TJ Tubular Doors
Revised 4.23.10

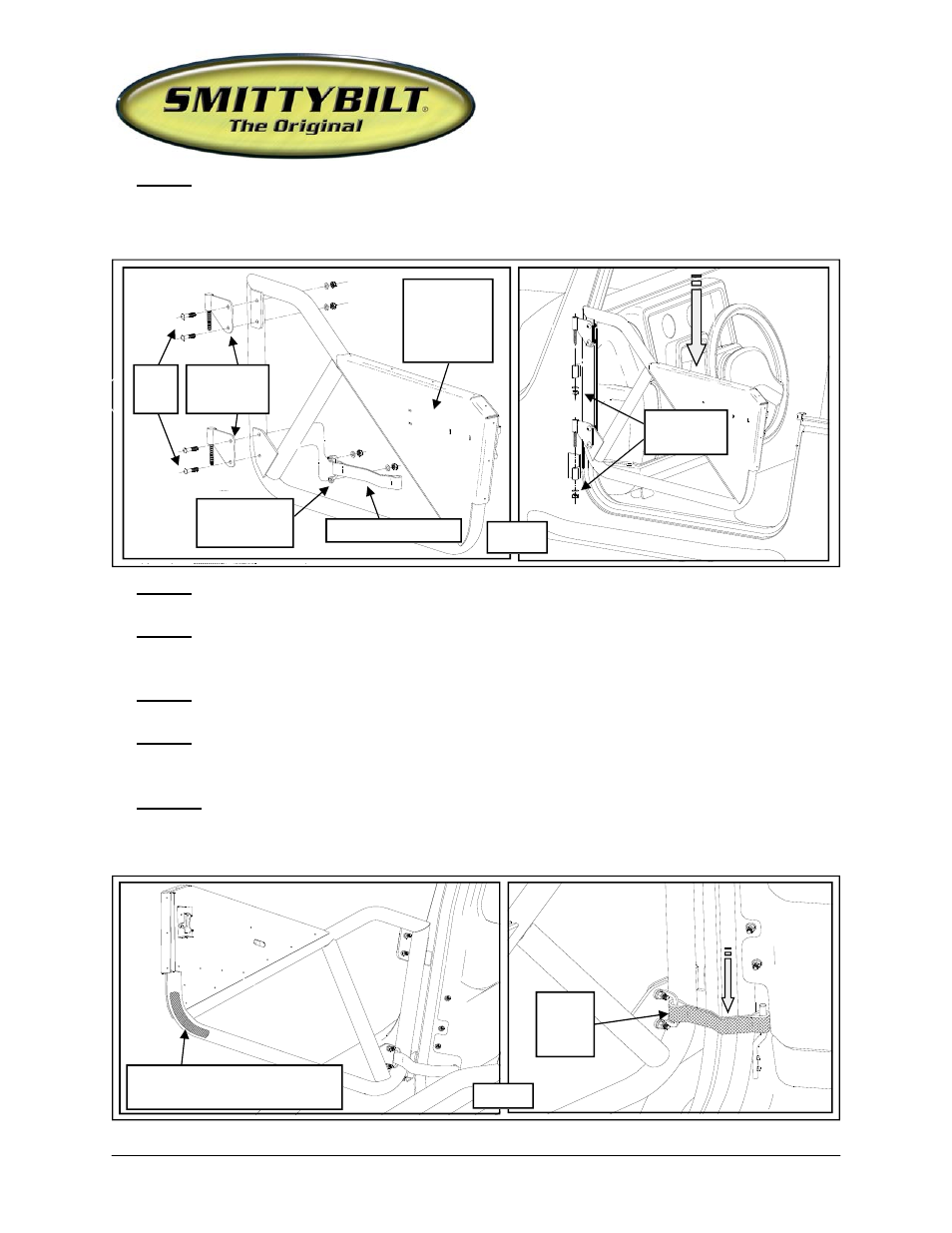

Step 5: Attach the (2) door hinges (93-5682) to the new door (93-8003 and 93-8008) using
the (4) supplied 3/8” X 1” stainless bolts and hardware. Install the limit strap (769401) and
bracket (90-5783) to the lower hinge bolts as well. Leave the bolts snug only at this time.
(Fig. B)
Step 6: Carefully install the door assembly onto the vehicle hinges. (Fig B)
Step 7: Carefully close the door and latch it to the door striker. Adjust the door striker if the
door won’t close properly.
Step 8: Carefully adjust the (2) front door hinges to level the door on the vehicle. (Fig B)
Step 9: Once the door is adjusted properly torque the hardware according to the chart on
page 3.
Step 10: Install the provided weather stripping onto the door where the door makes contact
with the vehicle door jamb. (Fig. C)
NOTE: Failure to properly install the weather stripping may result in vibration or
other noise.
(Fig C)
Install Weather Stripping 90-4242
Where Door Contacts Jam
769401
Limit
Strap
93-5682
Door Hinge
90-5783 Limit
Strap Bracket
(Fig B) 769401 Limit Strap
3/8”
Bolts
Tube Door
93-8003 drvr
and
93-8008 pass
3/8” Nuts &
Washers
