Installation Instructions
SRC OFF ROAD ROOF RACK
87-95 Wrangler,97-06 Wrangler,04-06 Unlimited
Part #’s 76711,76713,76715)
12.
Locate the front cross bar. The front crossbar is shorter than the
middle and rear crossbars. Install the foam gasket to the crossbar
ends.
13.
Place the front crossbar on the upright. Insert the ¼” x 3 3/8”
Knob Bolt through the bottom of upright and through the cross bar.
Tighten the bolt with the plastic crossbar knob and allen key
supplied. (Figure 7) Repeat on the opposite side. It may be
necessary for an assistant to put pressure on the uprights to get
them in the proper location for the cross bars to attach. (Figure 8)
14.
Repeat the crossbar installation procedure for the middle and
rear crossbars.
15.
After all of the crossbars have been attached, center the rack on the vehicle and
tighten all of the bolts. (Double check to make sure all hardware is tight)

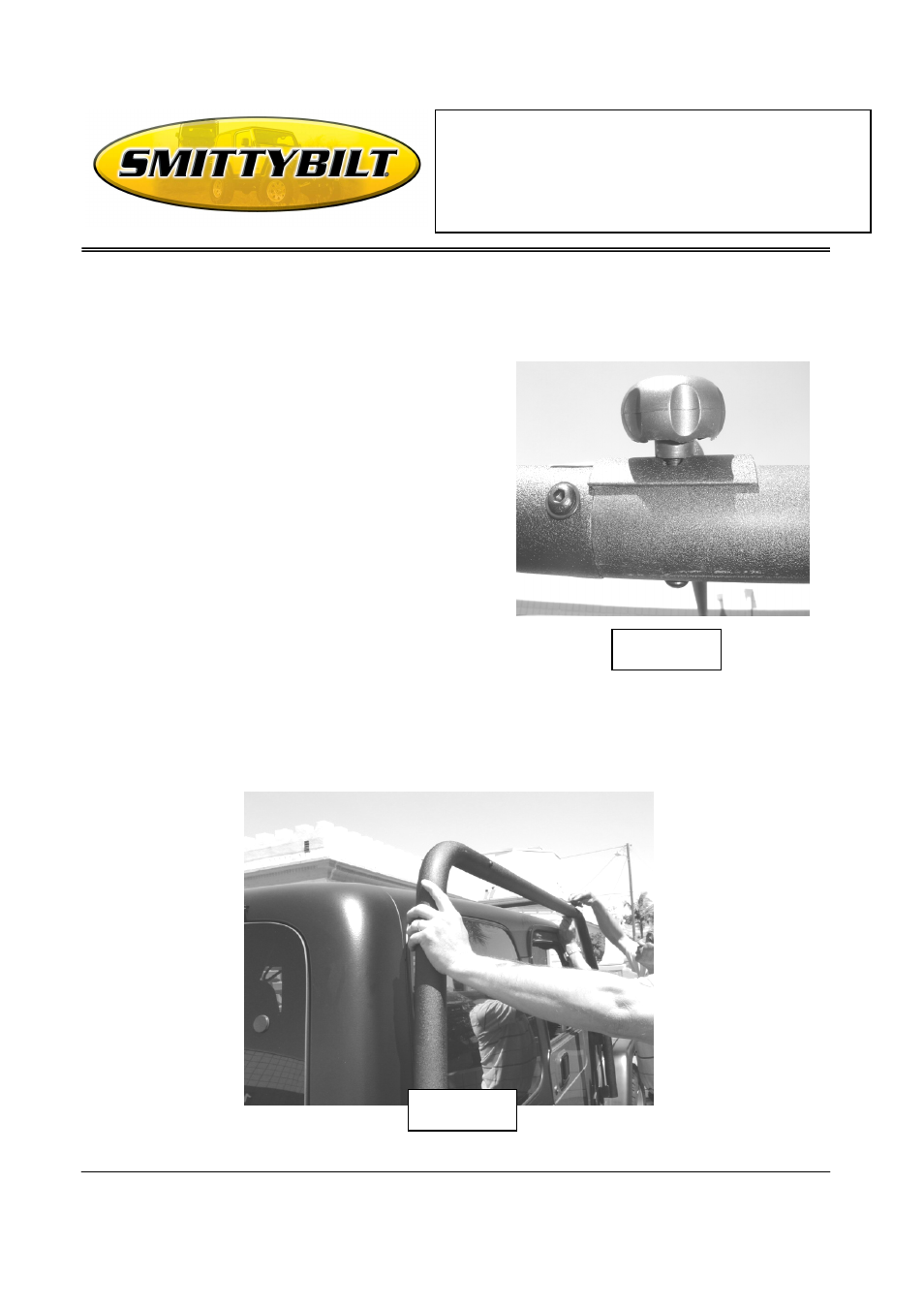

Figure 8
Figure 7
