Installation Instructions
Security Stereo Floor Console
(Part # 318xx)1976-1995 CJ & Wranglers

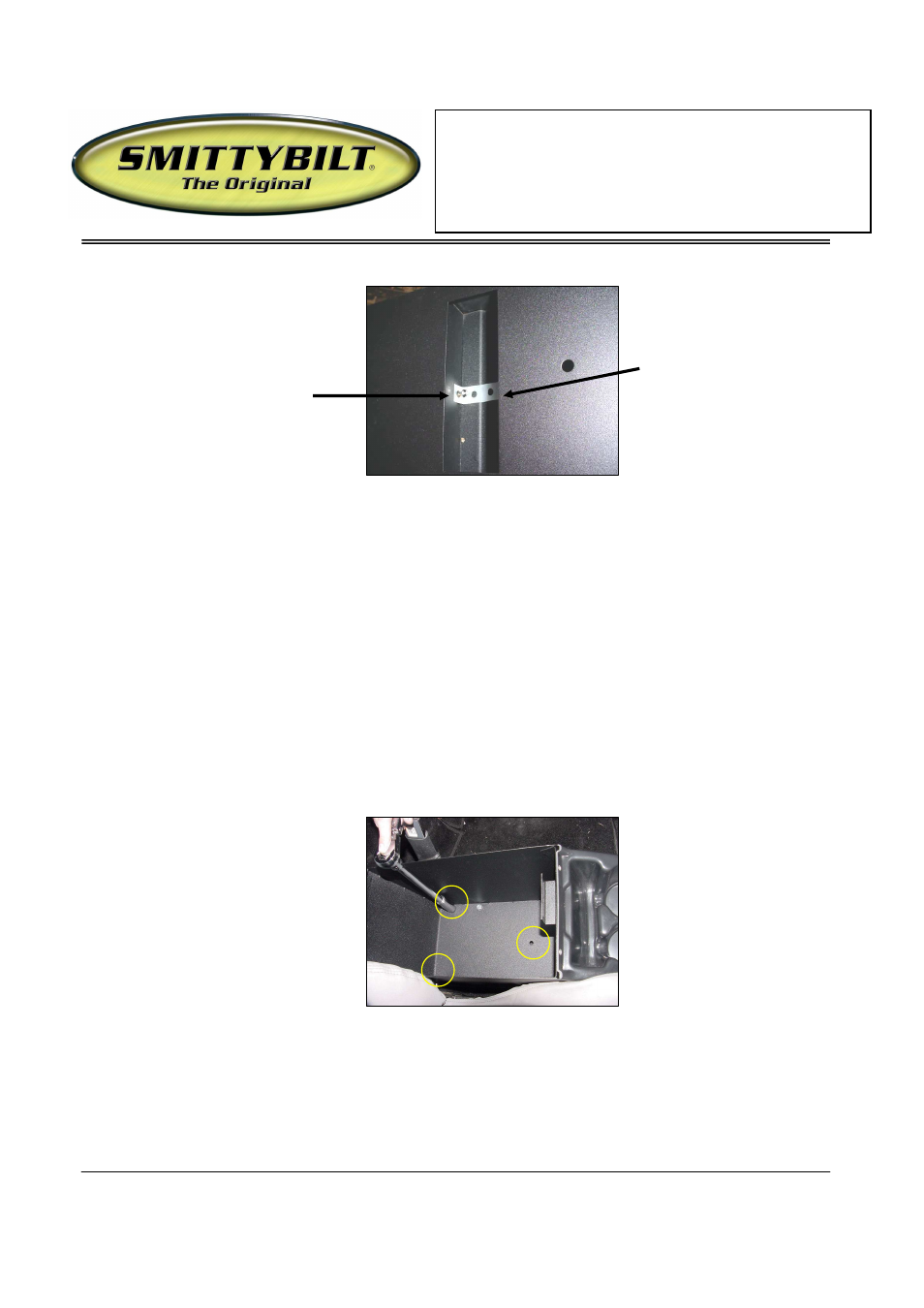

Figure 4
10. Connect all wires to the stereo according to your stereo owner’s manual.
11. Locate (2)-5/16” x 2/12” Hex Head Bolts, (4)-5/16’” Flat Washers, and (2)-5/16” Lock Nuts. Fasten
down the rear of the console through rear holes in the Security Console and holes in mounting
Bracket by using the hardware listed in this step (Figure 5).
12.
Locate (1)-5/16 x 1 ¾” Hex Head Bolt, (2)-5/16” Flat Washers, and (1)-5/16” Lock Nut. Fasten down
the front of the Security Console by using the hardware listed in this step (Figure 5).
Figure 5
Stereo Support
Strap Threaded Stud
(pre- installed),
10-32 Lock Nut
and 10-32 Flat
Washer
