Installation Instructions
Vaulted Glove Box
87-95 Wrangler (Part # 812101)

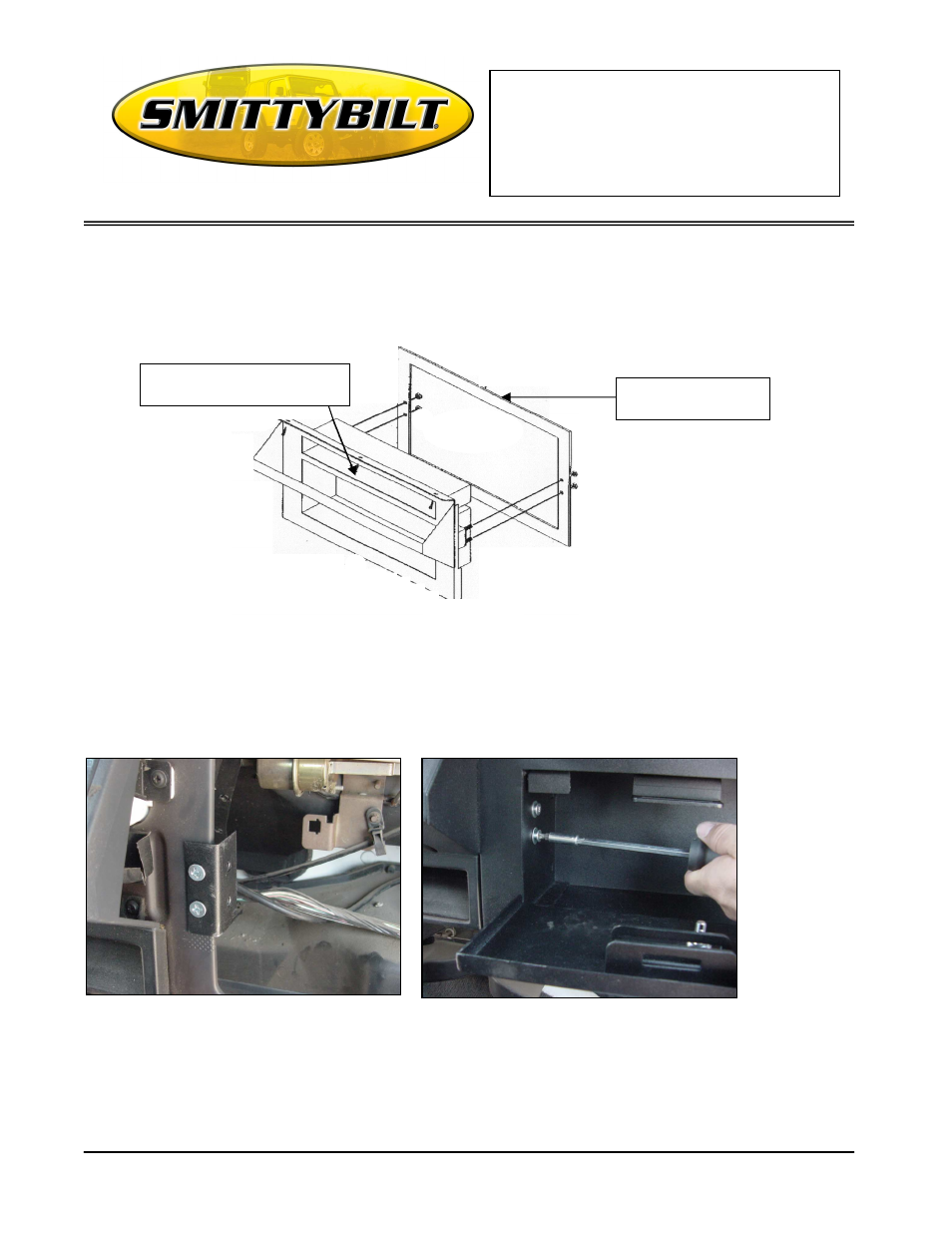

3) Reach behind the dash and remove the (4) screws on the backside of the factory glove box face(Figure
3). There are (2) screws behind each end of the handle. Note: In some cases there may be nuts instead
of screws, however they are located in the same spot. These nuts are very difficult to get to and tedious
to remove. We recommend using a ¼” drive ratchet with a 7/16” socket.
4)
Using the holes where the factory handle was connected, attach the (2) “L” Brackets using the (4) Bolts,
Nylock Nuts and Washers provided (Figure 4).
5) Once the “L” Brackets are attached to the metal frame, carefully insert the Vaulted Glove Box into the
dash cavity. Attach Vaulted Glove Box through the holes on the inside of the Glove Box and onto the “L”
Bracket using the (4) Bolts and Washers provided (Figure 5).
6)
Refasten the screws removed in Step 1, securing the top of the glove box area. Installation is complete.
To lock and unlock the Vaulted Glove Box; insert key, push down and turn.
Figure 3
Figure 4 Figure 5
Factory Glove Box
Metal Frame
