Installation Instructions
Vaulted Security Glove Box
97-06 Wranglers (Part # 812201)

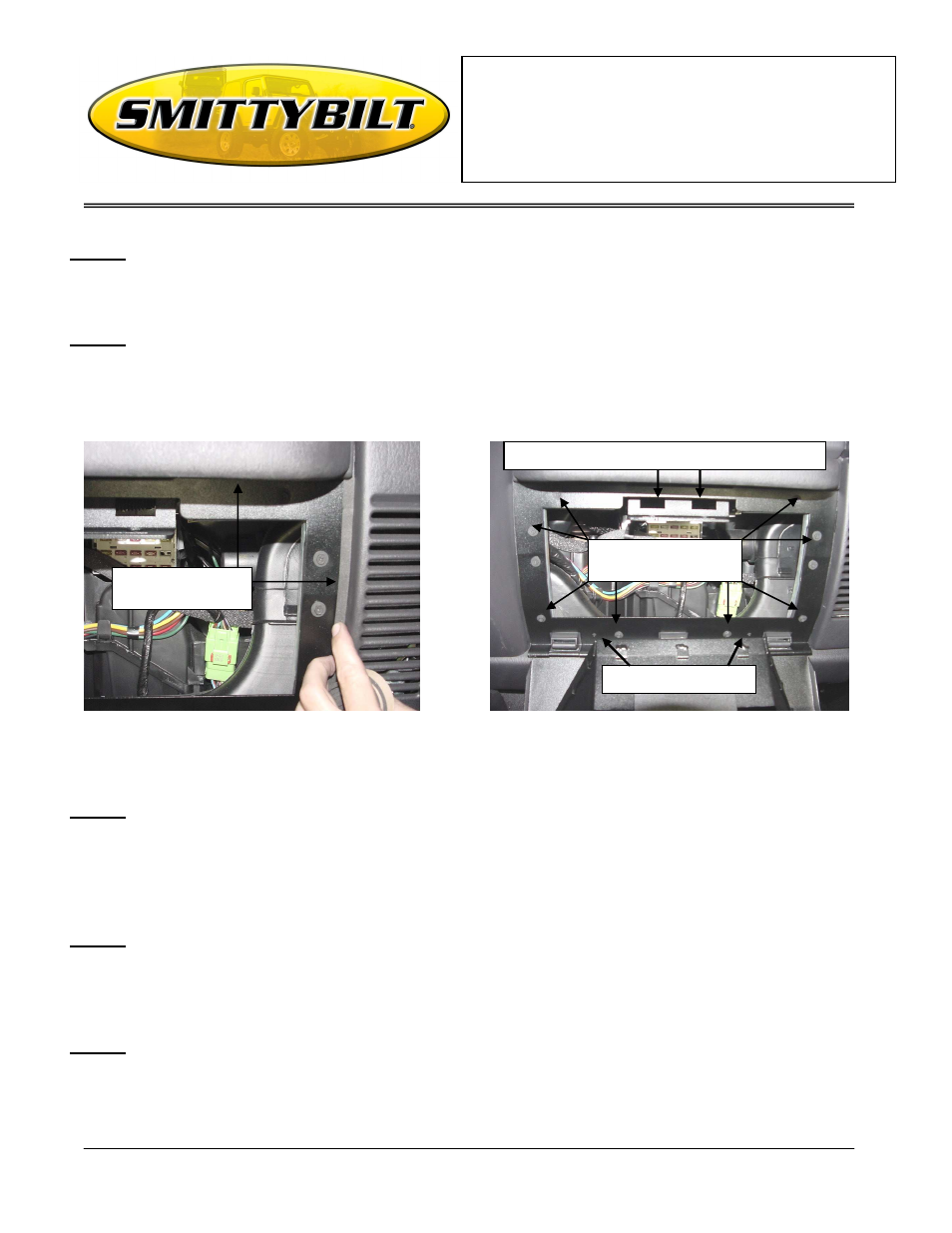

Step 3: Measure, cut and mount the Neoprene strip across the top and down the sides of the Vaulted Glove
Box frame. Stick the Neoprene strips where the door when closed would meet up against the frame.
(Figure 3) This is to help reduce rattling and forma better seal.
Step 4: Position the Vaulted Glove Box into the dash. Bolt it in place using the ten factory screws that you
removed earlier. (Fig 4) Be sure to use the factory mounting pattern. (Two holes will not be used)
Note: Loosely start all the screws and before tightening them all the way.
(Figure 3) (Figure 4)
Step 5: For full and total security it is recommended to drill the two extra holes located at the bottom of the
frame and the two extra holes on the lock catch. (Fig 4) You can use the holes on the frame as a
template to mark and drill the holes in the dash. CAUTION: make sure to check the backside for
any obstructions. Use the included hardware to secure these holes.
Step 6: Loosely attach the door stop bracket on the backside of the glove box by inserting the threaded tabs
into the slots, using the supplied wing nuts. Make sure the bracket is pushed down and that the
curved section of the bracket is facing up. (Fig 5)
Step 7: Close the Vaulted Glove Box partially and adjust the height of the door stop bracket so that it will
hit the lock catch bracket, keeping it from falling all the way open. (Fig 6) Tighten wing nuts now.
Extra Holes
Extra Holes are Located Behind Factory Holes
Factory Bolts
Neoprene Strip
