Smittybilt TN1160-S4 Sure Steps User Manual

Installation instructions

background image

For Technical Support/Warranty Information please call 310-762-9944

Smittybilt, 1600 Walnut Parkway, Rancho Dominguez, CA 90220

Installation Instructions

Sure-Step (Part # TN1160-S4)

05-06 Toyota Tacoma Crew Cab

QTY:

BOLT BAG DESCRIPTION QTY: PARTS DESCRIPTION:

24 5/16”

LOCK

WASHERS 1 DRIVER SIDE FRONT BRACKET

24 5/16”

FLAT

WASHERS 2 DRIVER SIDE CENTER, AND REAR BRACKETS

24

8MM X 25MM HEX BOLTS 1 PASSENGER SIDE FRONT BRACKET

2 PASSENGER SIDE CENTER,AND REAR BRACKETS

1 PASSENGER SIDE STEP

INSTALLATION INSTRUCTIONS

STEP 1. Read the instructions completely before you begin the installation. NOTE: Pictures are for reference only,
actual brackets may be different. Installation is the same (some brackets cup the side step)

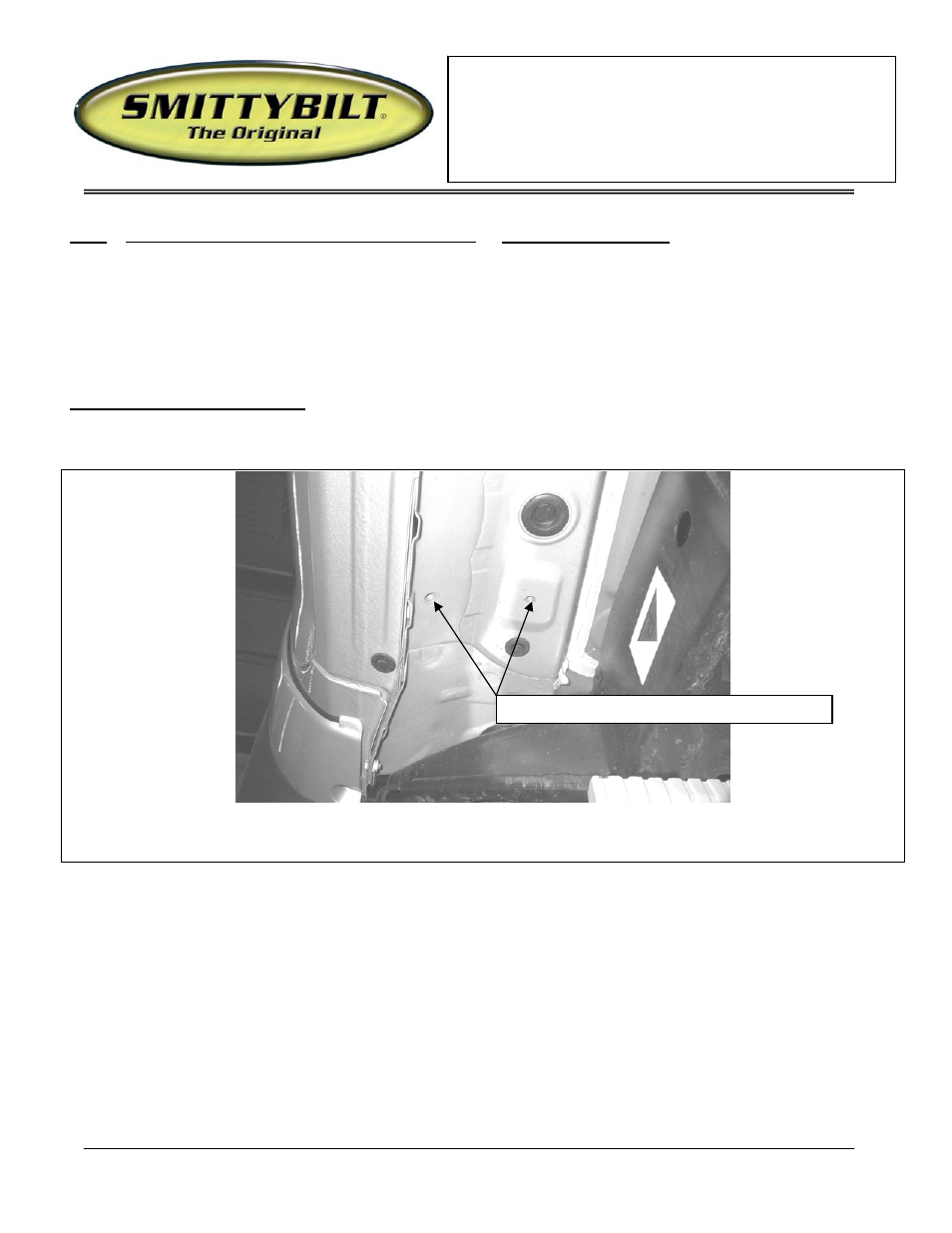

DRIVER SIDE FRONT BRACKET MOUNTING POINTS

STEP 2. This installation uses (3) brackets per side. Begin by installing the driver side front bracket. Locate the (2)
threaded holes in the underside body panel.
