Installation Instructions
Bolt-On Fender Flares
Ford F150 (04-08)
Part #17393

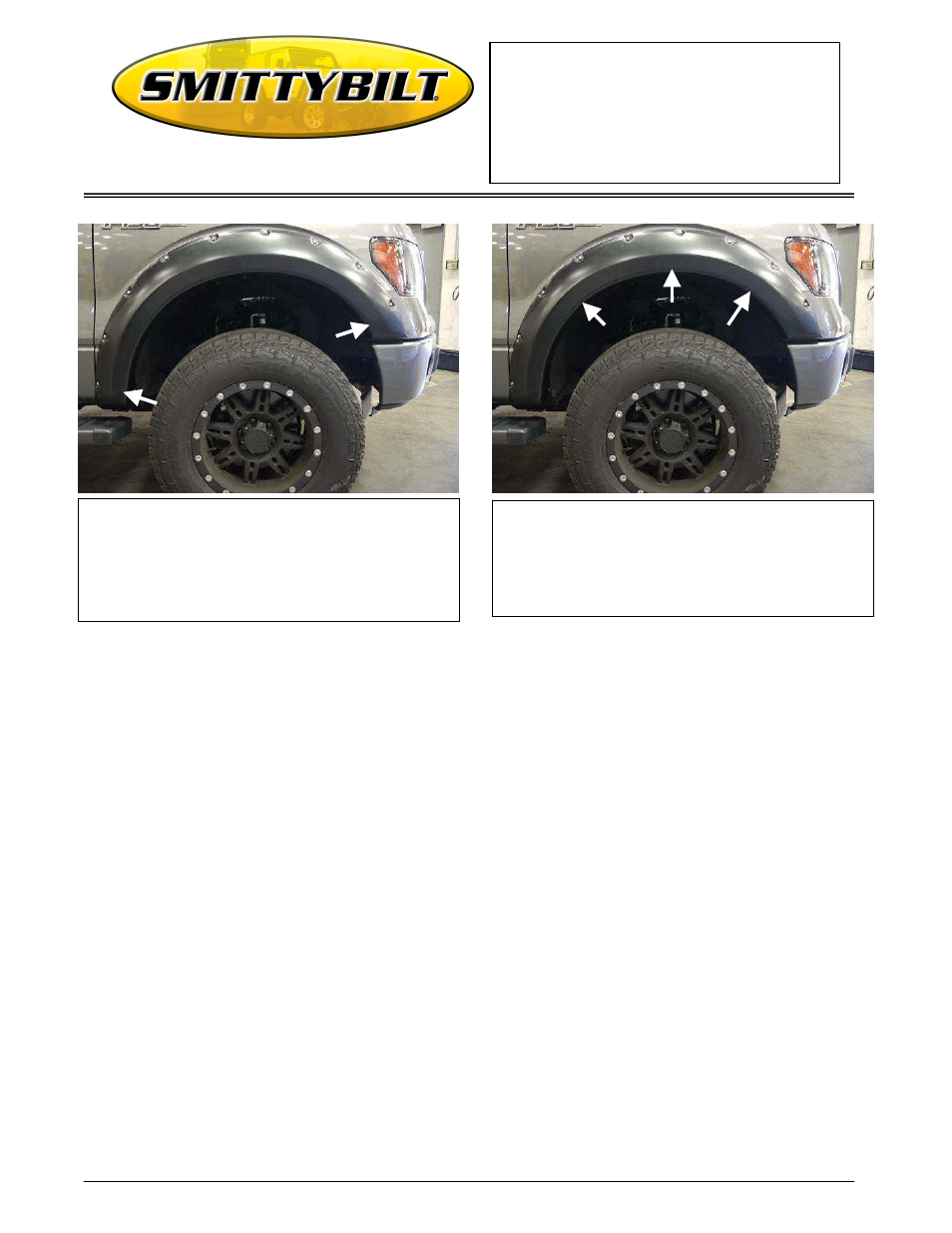

STEP 8:
Insert six (6) of the .9mm lever retaining clips
(three (3) per side) into the Fender Flare. Make sure the
tab in the clip securely attaches in the slot on the Fender
Flare. Secure with four (4) bolts removed in Step 6. For
2007-2013 vehicles, secure the center clip with the
included scrivet.
STEP 7:
Place the Fender Flare onto the vehicle and fit
into the correct position following the contours of the
body. Use four (4) of the .6mm clips (two (2) per side) to
secure the Fender Flare to the body. Make sure the
dimple in the clip securely attaches in the slot on the
Fender Flare.
