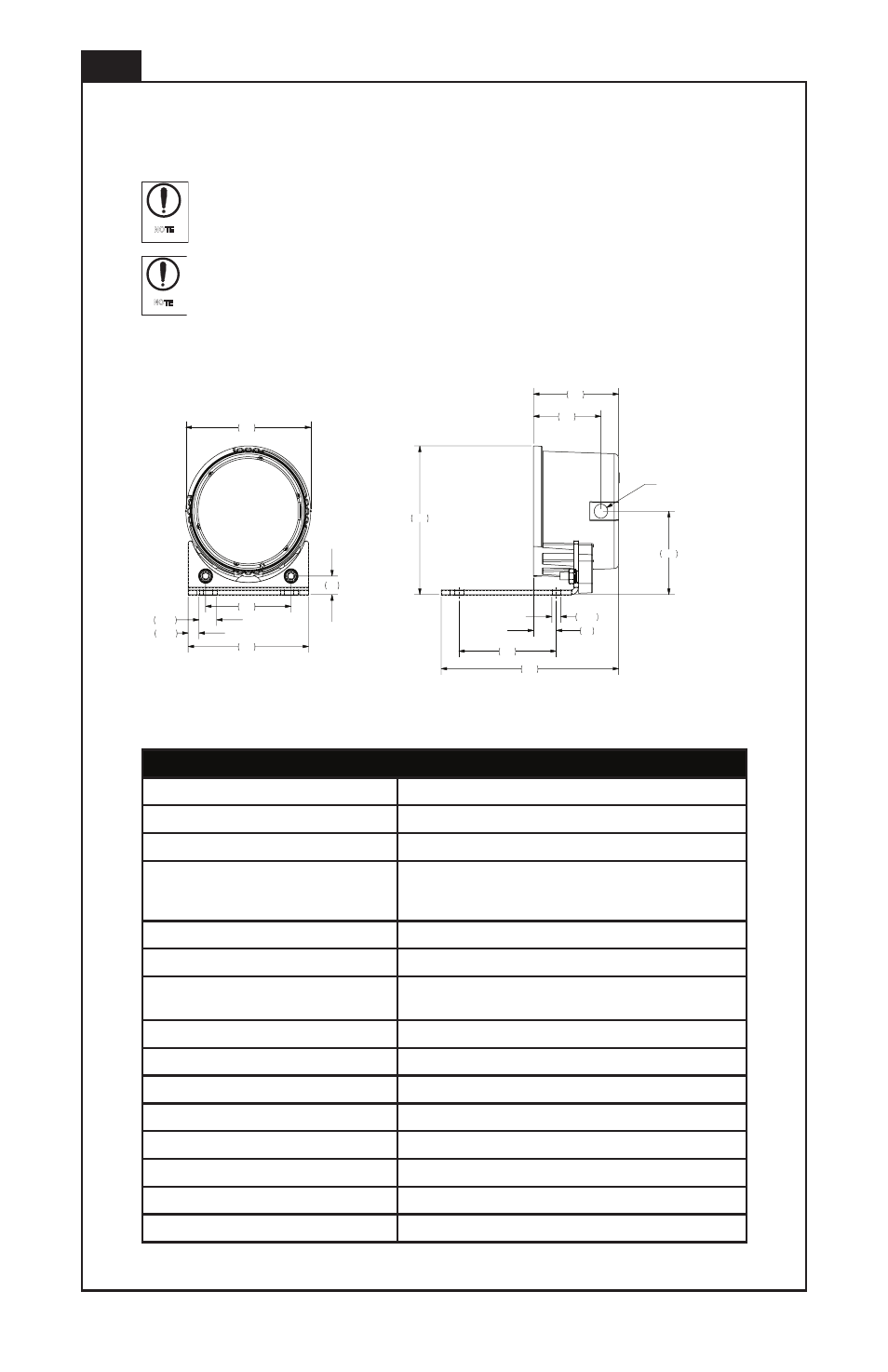

Micropump EagleDrive ELE - Manual (Page 19)

19
DOC No: 8540 REV D
All Dimensions in mm.[inch]
Technical Specification
Not all possible configurations are shown. Contact your local Micropump
distributor or contact Micropump directly for additional versions.
EagleDrive
Model MS
Product Code DEMSE
Speed Range 250 to 10000 rpm
Typical No-Load Speed
(24 VDC Input / 5 VDC Control / 25°C
Ambient)
6000 rpm
Speed @ Rated Torque 3500 rpm @ 70 mNm (10 oz-in)
Input Voltage Range 10 to 38 VDC
Max Full-Load Current @ Nominal Voltage
(25°C Ambient)
2A @ 24 VDC
Speed Control 0 to 5 VDC
Tachometer Out 0 to 5 VDC square wave - 2 pulse per revolution
Thermal Shutdown 135°C
Thermal Restart 120°C
Storage Temperature -40 to +135°C
Maximum Ambient Operating Temperature 85°C at max load
Reversible Yes
Weight 0.3 kg
