Synergy 8020-20/8040-20 - Jeep JK 2 User Manual
Page 8
16) Reinstall tires and lower to ground. Torque wheels to manufacturers recommended specifications.
17) Reinstall rear track bar bolt removed in step 1 and torque to 125 ft-lbs.
It helps to have someone push the back of the vehicle from side to side to align the track
bar bushing to the hole in the bracket.
18) Rear suspension installation is now complete.
FRONT INSTALLATION

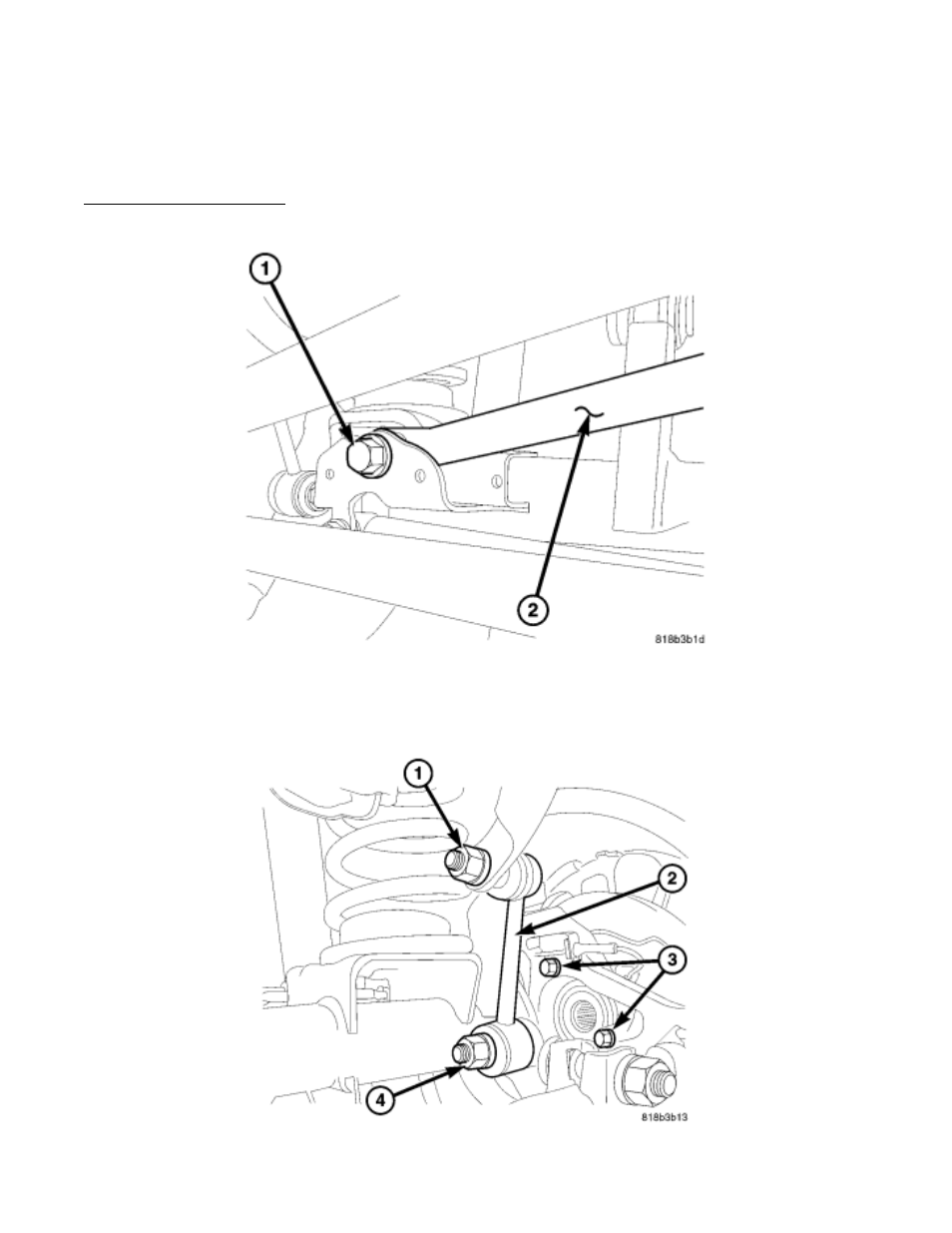

19) On the front of the vehicle, begin by removing the factory TB bolt at the axle side. Bolt #1 in the image
below. Use a 21mm socket / wrench. Retain this hardware as it will be re-used.
20) Next, jack the vehicle up and support it in a manner that will allow the suspension to hang free. Remove
the front tires.
21) Next, remove the sway bar links. Use an 18mm socket / wrench to remove the nut labeled #1 in IMG
3.1 below. Also, remove the bolt / nut securing the sway bar link to the axle (#4 in IMG 3.1 below)
Retain bolt / nut from lower mount as it will be re-used.
IMG 3.1
