8) If installing 8074 rear lower shock mounts, reference those instructions for installation at this time. If
utilizing the factory lower shock mounts, proceed to the next step.
9) Install new coil springs. Note, coil springs have a top and bottom. Orient them so the small pigtail fits
down at the axle, and the larger diameter is up at the chassis. Be sure to re-use the factory rubber coil
spring isolator at the top of the coil.
10) Install shock absorbers in the reverse operation of removal. Torque the upper bolts to 37 ft-lbs. Torque
the lower OEM bolt to 56 ft-lbs. Install the lower bolt so the nut is closer to the wheel, this helps
prevent thread damage to the bolt from rocks.
11) Install the 8060 rear sway bar links. Make sure the new sway bar links are roughly the same length left
to right by adjusting the tie rod ends. On lifts 4.5” or less, adjust tie rod ends all the way down.

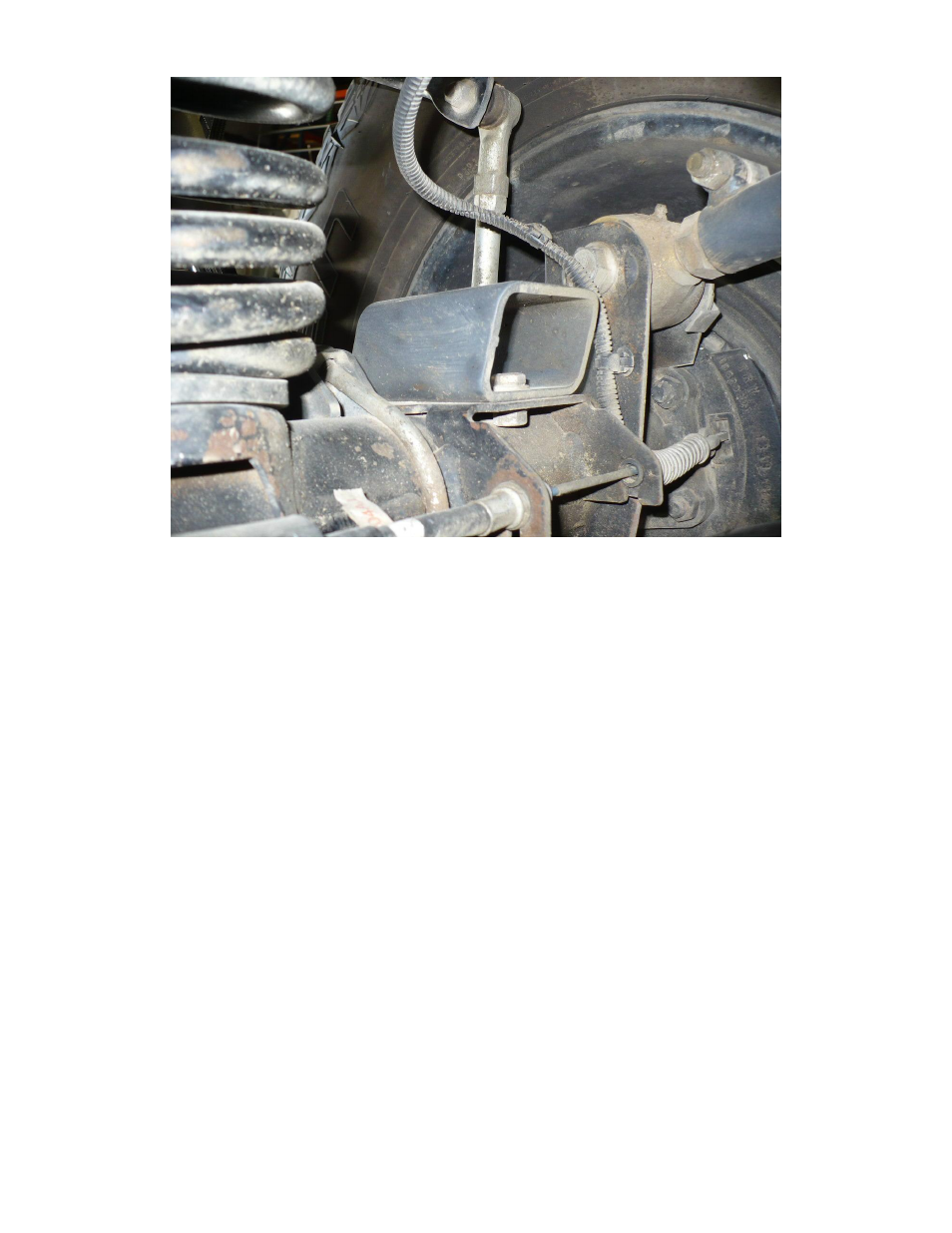

12) Install sway bar link to axle using factory hardware as shown. Insert bolt from wheel side and fasten
with nut on inner side. Torque to 75 ft-lbs.
