Synergy 5501-02/04 - Jeep JK Rubicon Rock Rail Kit User Manual
Page 9
same length and will require grinding and individual fitment for proper
installation.

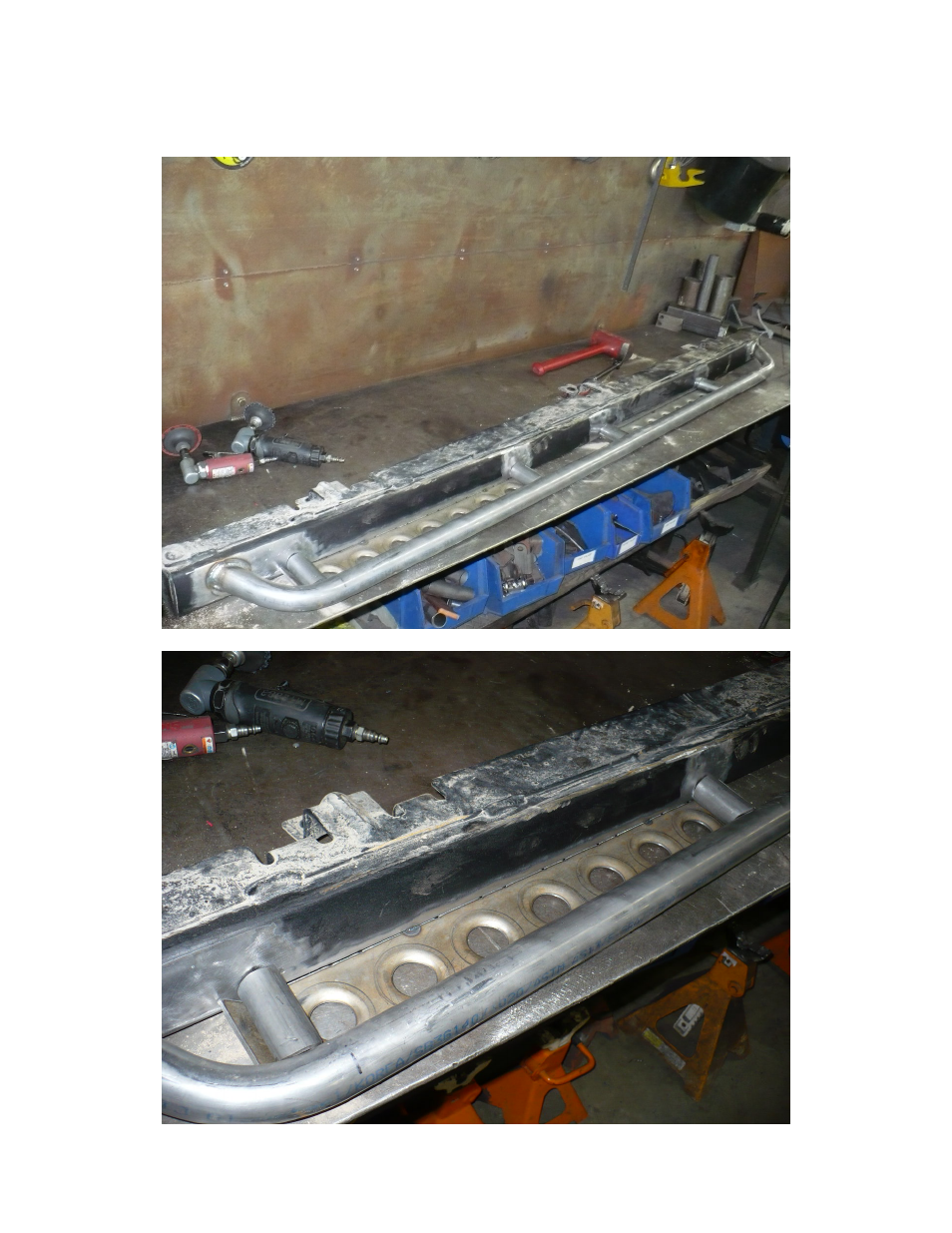

13) Grind / cut the flat end of the notched tie in tubes until they fit correctly in the
locations pictured below at the edges of each footplate.
14) Once installed and satisfied with fitment, fully weld everything in place.
a. Weld the main tubes, and rocker tie in tubes in place. We recommend
welding the tie in tubes directly to the footplates as shown below.
