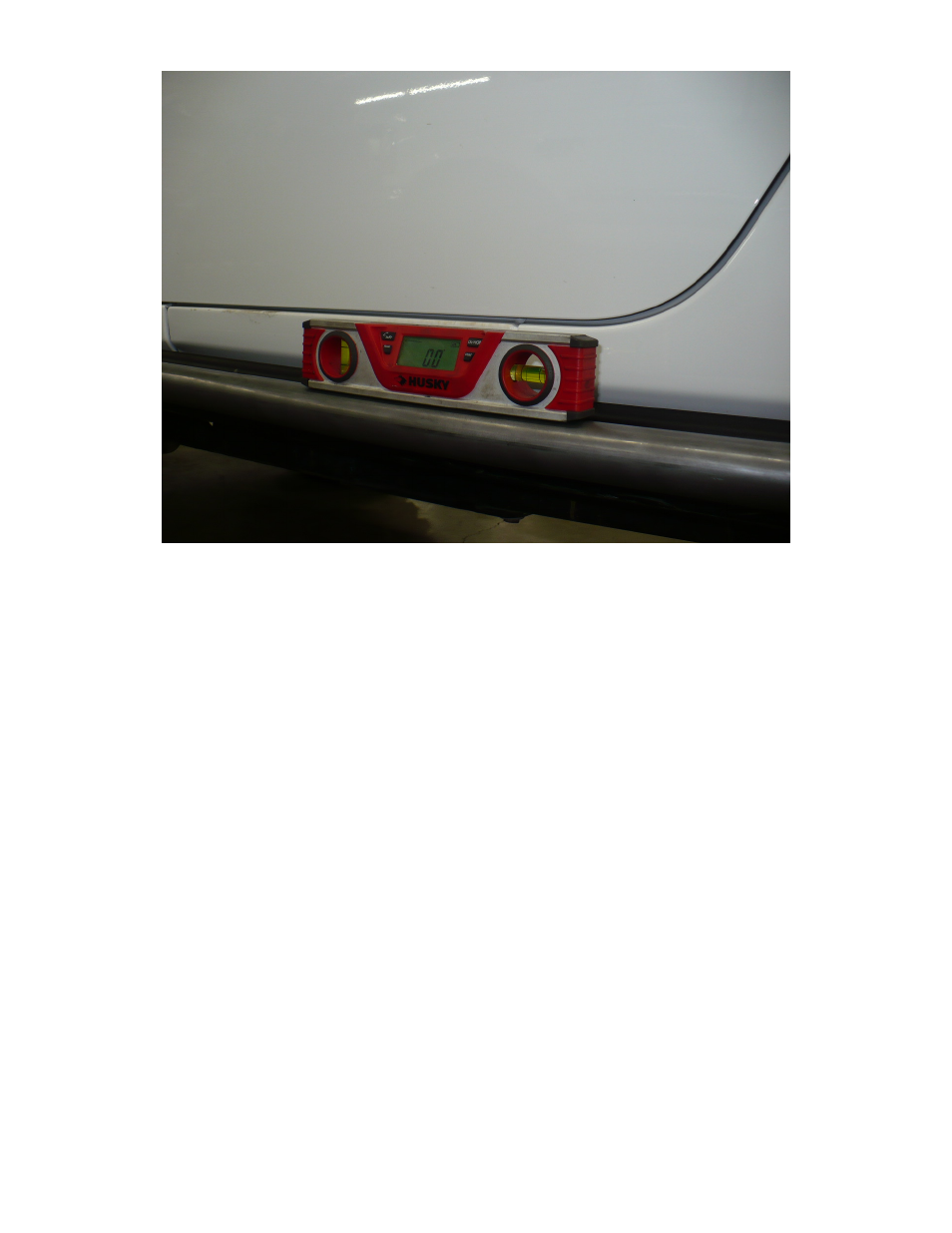

Rocker tube level with chassis
4) Once satisfied with the position of the tube, either clamp it in place so it will not
move, or clean up the paint as needed to throw some small tacks on each end of
the tube as to begin fitment of the flared steps included in the kit.
5) Each kit includes 4 flared hole steps. However, on 4 dr models, there are 2
different steps and orientation is critical for installation to go smoothly.
a. The steps are tapered on one side and thus are thinner on one end than the
other end. This is to match the rolled flare of the stock JK rocker tubes
b. Measure the width of the plates. One side should measure just under 3.0”
wide, while the other side measures 3.50”. The wider edges should be
pointing towards the ends of the vehicles, while the narrow edges should
be facing near each other. See image below for reference.
