Synergy 5232-3 - Jeep YJ Rear Cage Kit - Manual (Page 6)

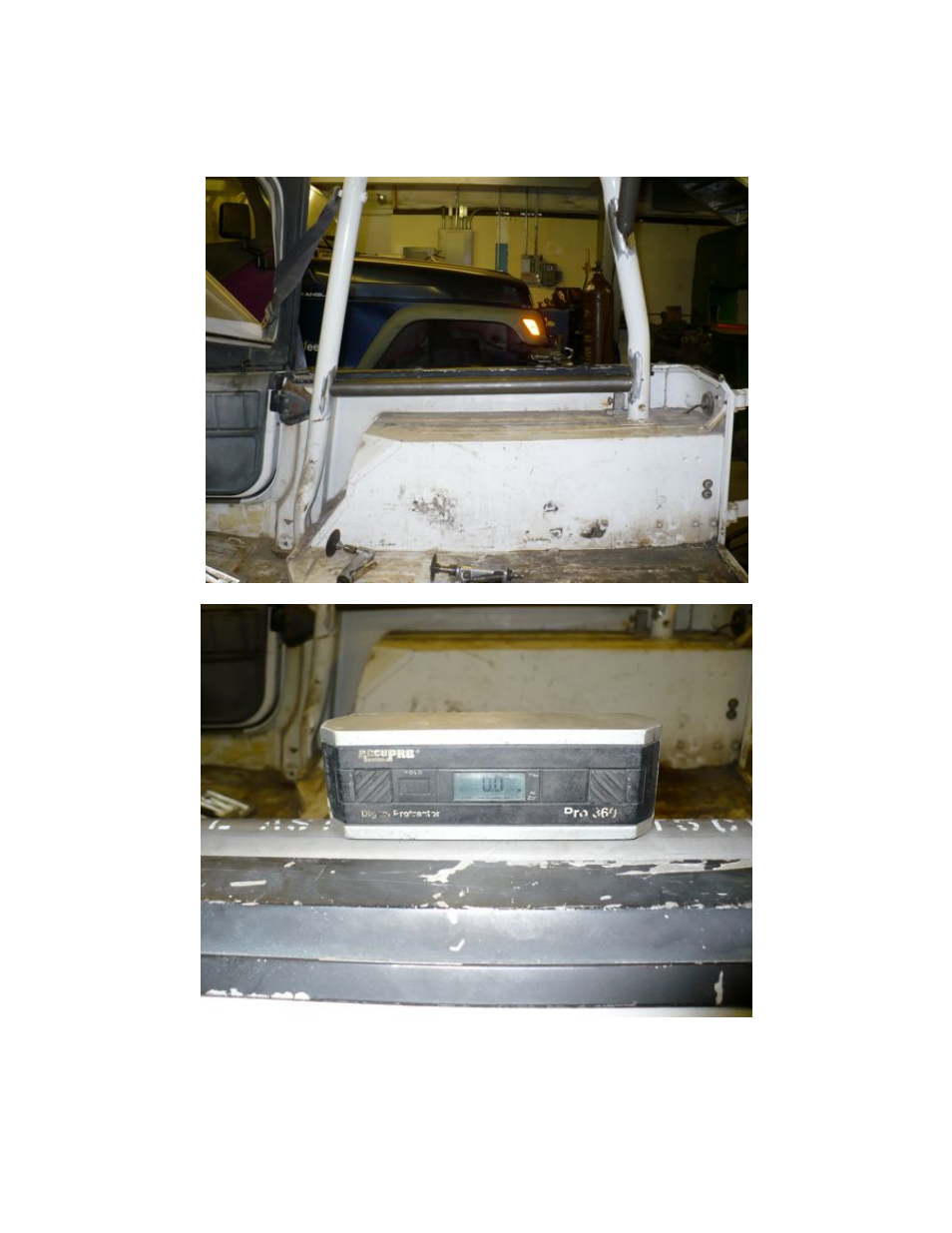

1) Begin by fitting the B-C Pillar base tie in bars as shown below. Level the bars with
the sides of the tub. Push them up as high as they will go, but be sure to check them
L to R to ensure they are at the same height.
2) Once happy with base tie ins, tack into place. Next, fit the B-C pillar diagonals in
place. These are notched side specific and will only fit on one way. Drop them in
place so they fit just above the base tie in tubes and just below the weld for the
factory windshield supports on the B-pillar hoop. See picture 2.1 & 2.2 below.
