Synergy 5232-3 - Jeep YJ Rear Cage Kit User Manual
Page 2

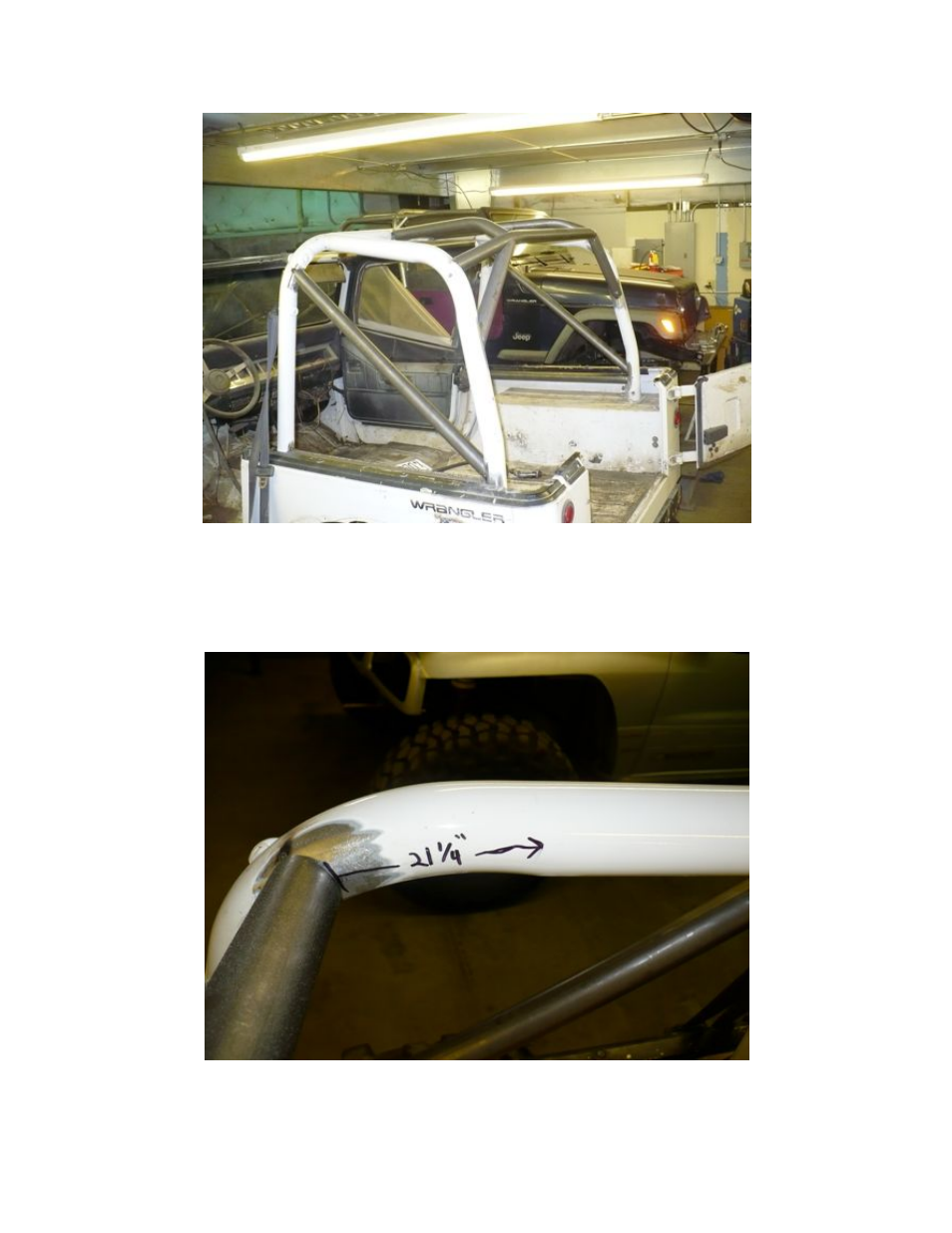

Picture 4.1 Complete rear kit including side kit tacked into place for reference.
5) Level the C-pillar cross tube with tub before tacking into place.
6) Before tacking C-pillar cross tube into place, install B-C pillar spreaders in place to
insure proper placement of C-pillar cross tube. C-pillar cross tube should be
approximately 21.25” back from the B-pillar hoop as shown in picture 6.1 below.
Picture 6.1
