10) With the RLCA brkt tacked securely on, set the axle at ride height, reattach track-bar,
and center the axle. Now, using the 807204-02 shock tabs provided, match the angle
on the upper shock mount tabs and tack into place. Note, with axle set at ride height,
determine the desired amount of uptravel and tack lower mounts on accordingly. The
8072 RLCA brackets resemble the factory length to allow for up to a 14” travel shock
to be used. However, we recommend using a 12” stroke shock and trimming the

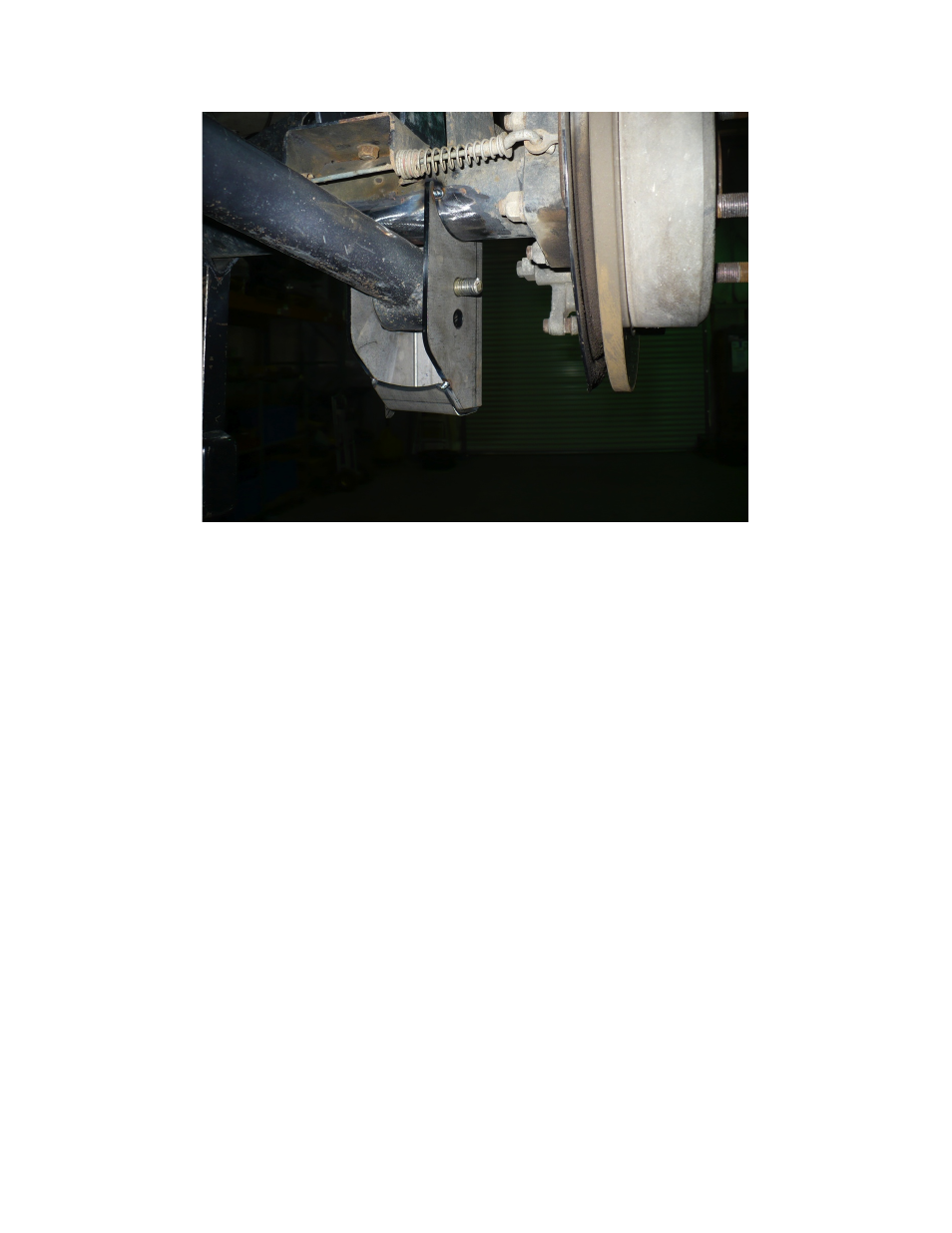

bottom of bottom of the mount for added clearance. The picture shown below
resembles an untrimmed mount set-up for a 12” shock on a 2dr JK with a rear stretch.
