Synergy 5013 - Jeep JK Rear Coilover Kit User Manual
Page 5

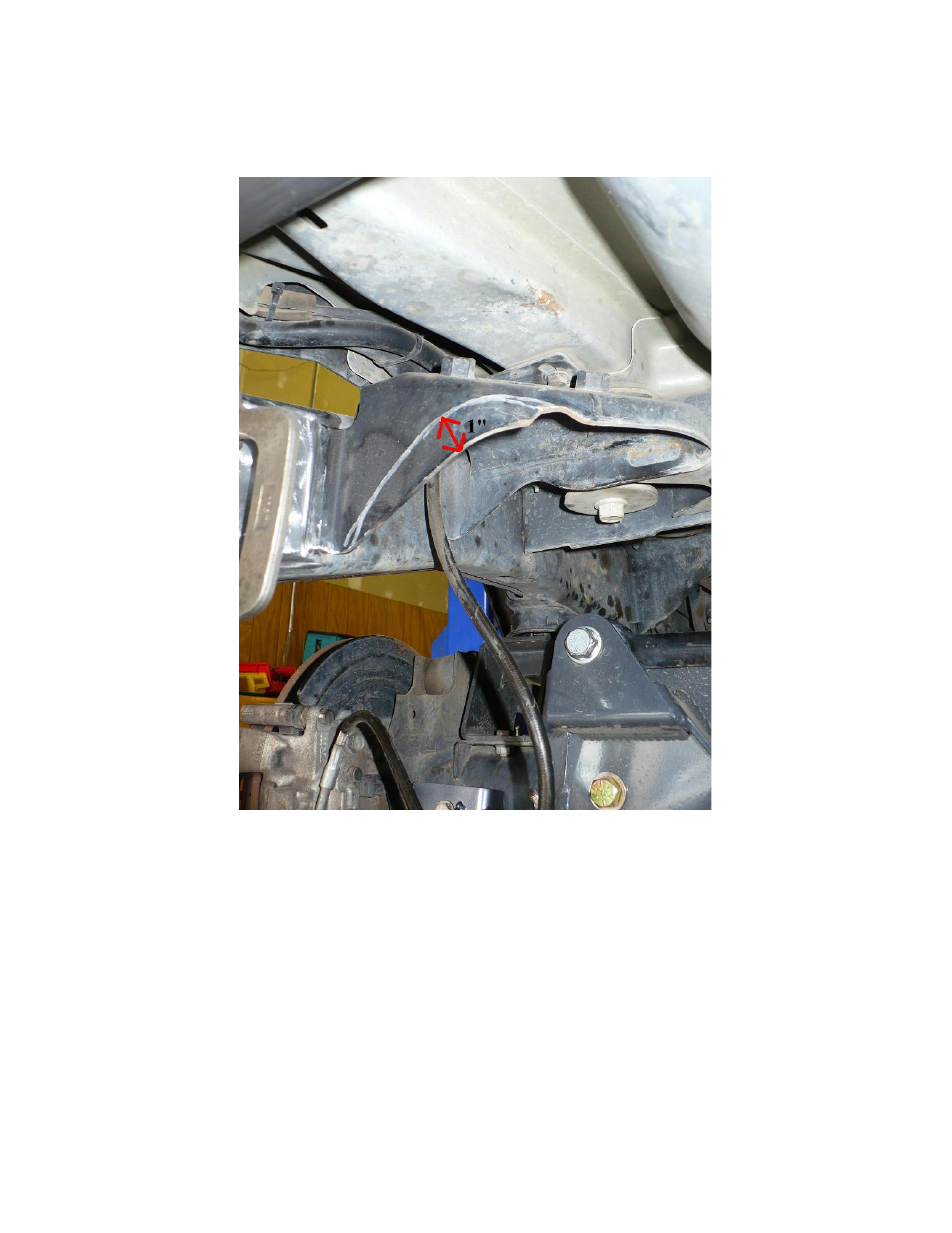

6) At this time, it is recommended that shocks be installed and suspension be fully
cycled to ensure proper shock lengths and bump stop spacers are used. Note, some
grinding of the factory upper shock mount is needed for C/O clearance.
7) With the upper cross member mocked up in the proper position, let’s turn our
attention to the lower shock mounts. This kit was designed to be used with our 8078
HD Lower Shock Mount, a 12” fox 2.0 C/O and a 3” bump stop spacer. Or, for a
more universal application; with the 8072 RLCA brackets to replace the factory
brackets on the axle and anywhere from a 10-14” fox 2.0 C/O and appropriate
corresponding bump stop spacers.
§
If using the 8078 bolt on lower mounts, follow the instructions
provided with them for installation, and skip to Step 12 for
completion.
§
If using the 8072 RLCA weld on brackets, follow Steps 8-16 for
completion.
