Remove the dust caps before coupling together. Then push the male and female parts
together and turn the locking sleeve on the female coupling in the direction "1" until the
locking sleeve clicks in place. The connection has been made and locked. Decoupling is
accomplished by turning the locking sleeve in direction "0".
Coupling of the hose assemblies when under pressure is also possible, assuming that the
connected equipment is not turned on.
NOTE:
We recommend connecting the coupling halves in a depressurised state
when working in areas with low ambient temperature and using extension hose
assemblies / hose reels, as otherwise the coupling may require the application
of a great deal of force.
For dust protection, the supplied dust caps must be re
¿ tted.
Using the dust protection caps:

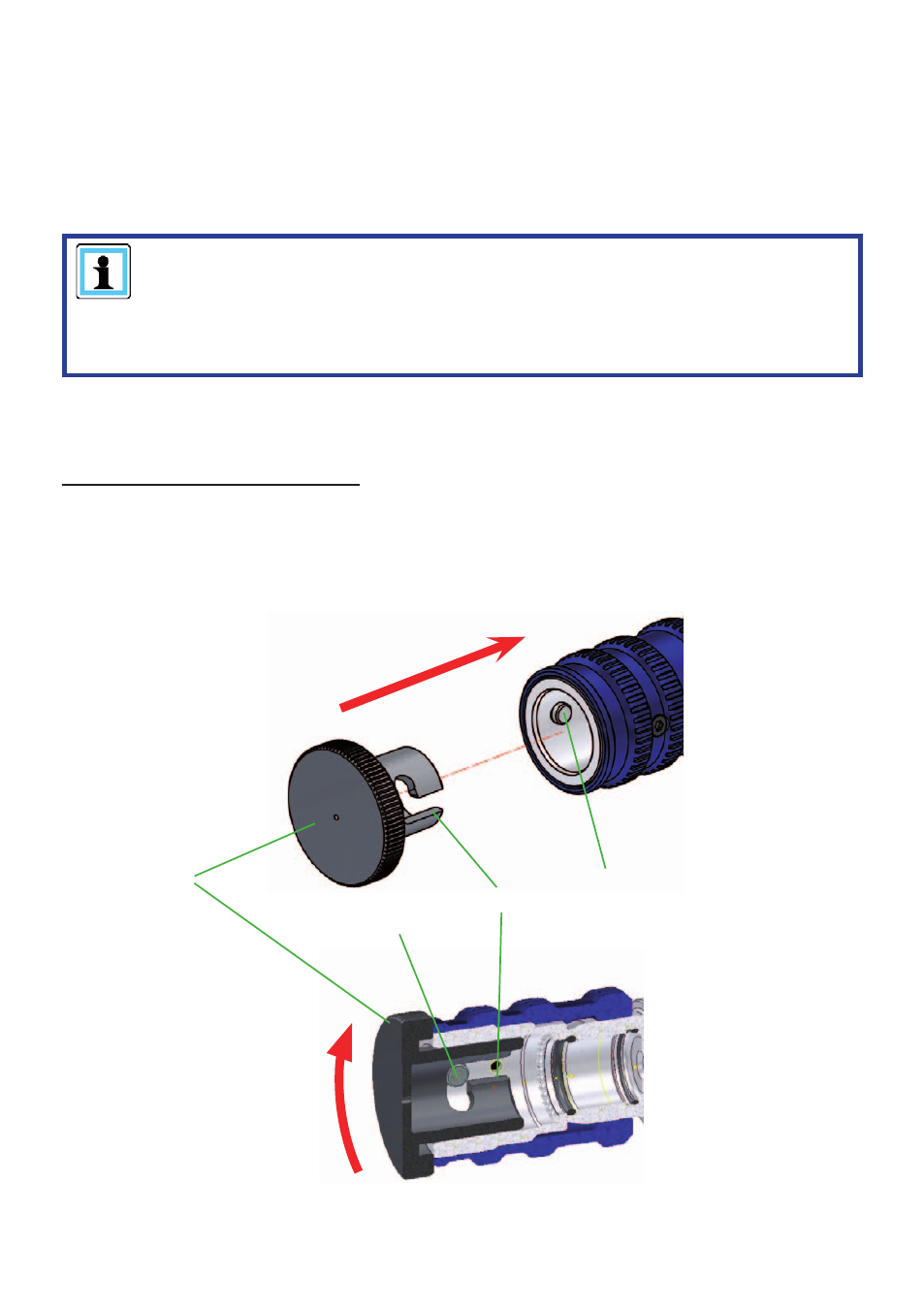

The dust protection caps "A" have two external grooves "B". The dust protection caps must
be inserted in the female coupling in such a way that the grooves can be guided over the pins
"C". Screw in the dust protection caps to the stop to
¿ x in the female couplings.
