11

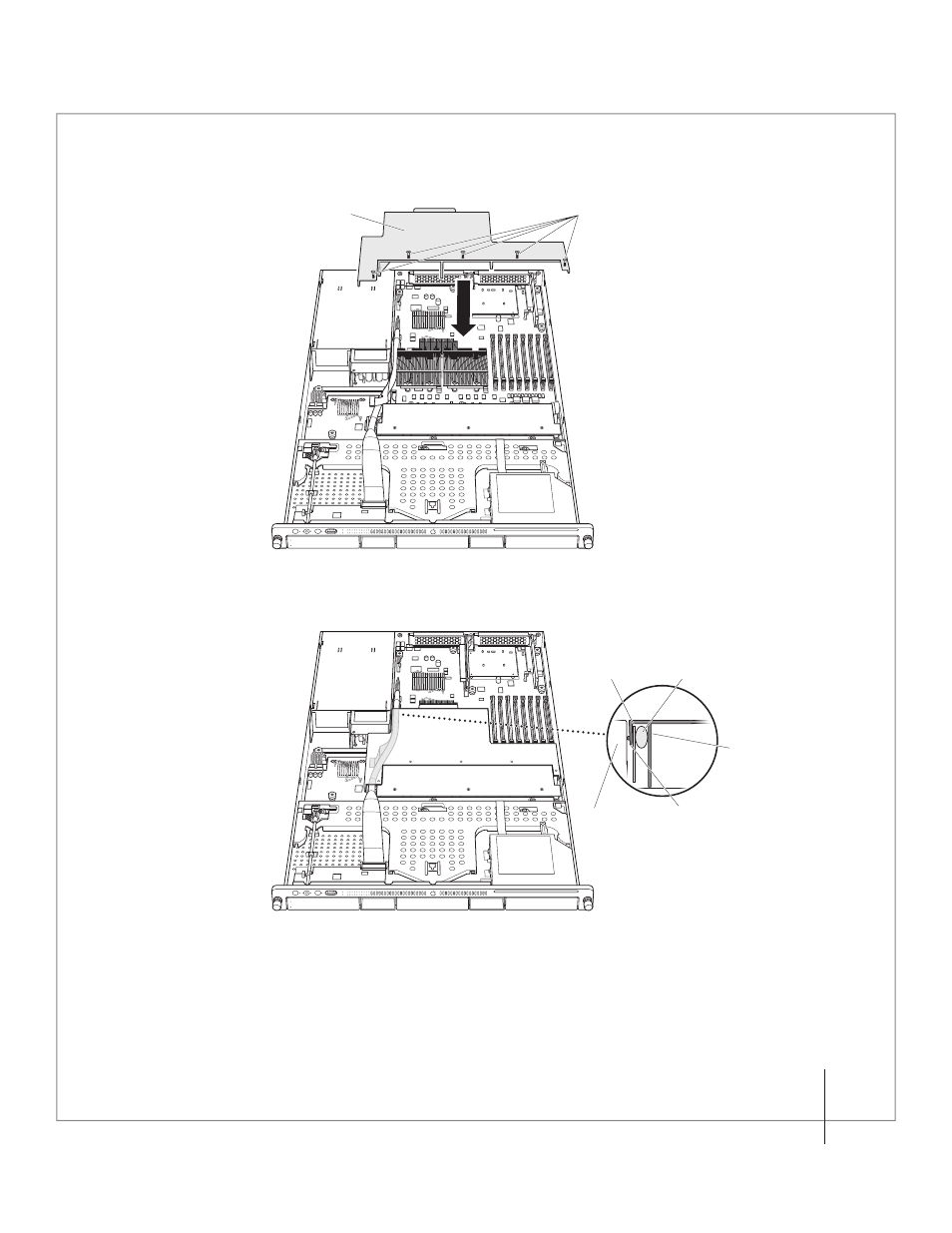

3 Install
the
airflow
duct
and
fasten
the
five
screws
that
hold
it
in
place.
Note:
Be
sure
you
route
the
backplane
cable
and
the
front
panel
cable
through
the
channel
on
the
underside
of
the
duct,
as
shown
in
the
illustration.
4 Slide
the
Xserve
top
cover
into
place
and
tighten
the
two
thumbscrews
at
the
back.
5 Lock
the
enclosure
and
return
the
Xserve
to
the
rack.
6 Unlock
the
enclosure
and
reconnect
the
cables
and
power
cords.
The
Xserve
is
now
ready
to
start
up.
Airflow duct Captive screws
Front panel cable
Support on
airflow duct
Backplane cable
Tab on airflow duct Power supply
